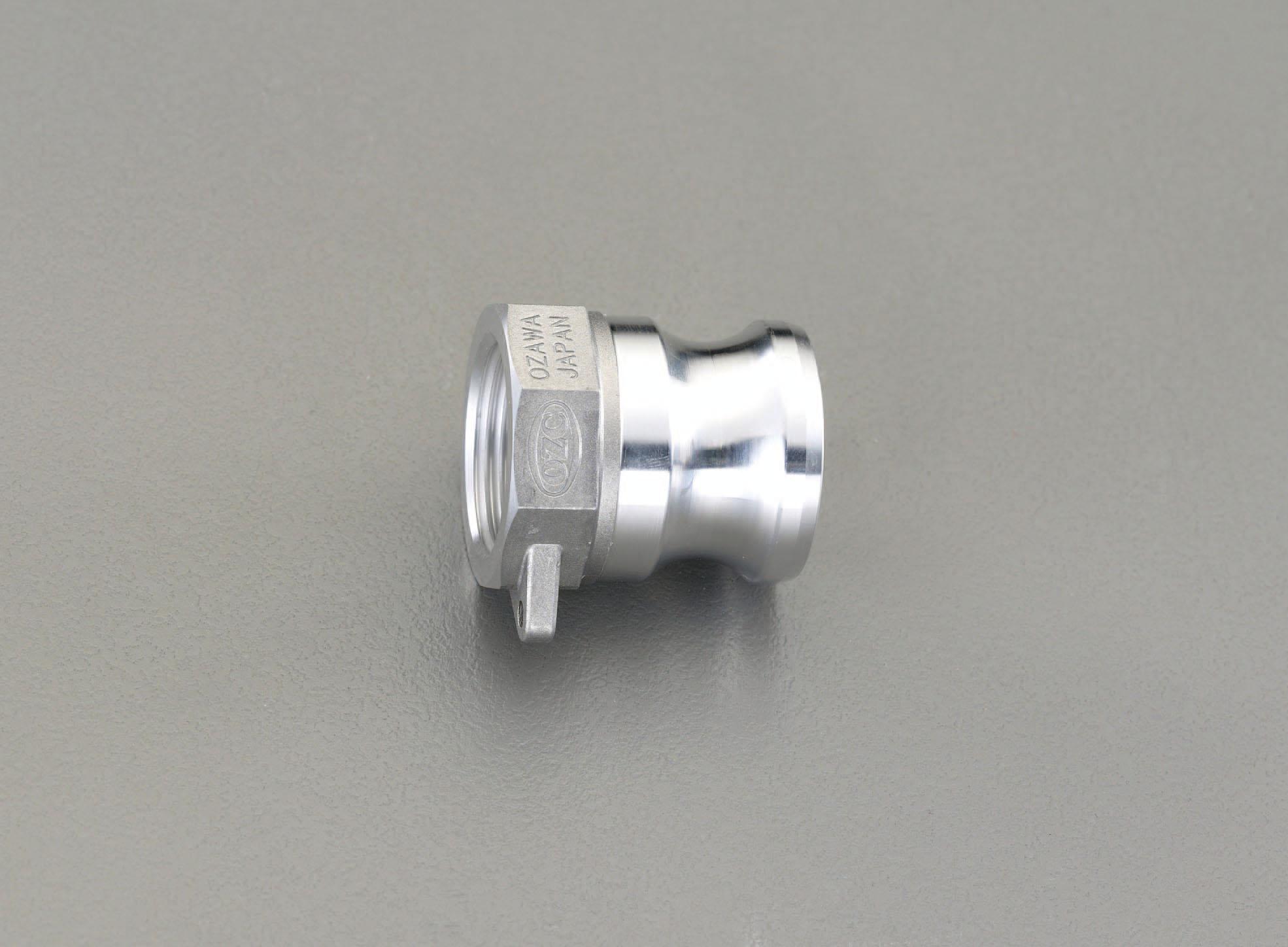

“R1/2” “Female Thread Plug (Aluminum)” D:32, E:16, K:32, h:28, H:38
JAN
4548745576108
ASIN
B006Y49T62
Maker
Model No.
EA462BA-4
Color
Size
D: 32, E: 16, K: 32, h: 28, H: 38
Description
ESCO Plug EA462B
Material: Aluminum die-cast (ADC12)
Operating Pressure: 1.76MPa (18kgf/cm2)
Operating Temperature: -30℃/70℃
Nominal Diameter: 15 (1/2”)
Thread Size: PT1/2”
Dimensions (mm): D:32, E:16, K:32, h:28, H:38
Weight: 0.05kg
This type is installed on the male threaded end of piping or hose fittings.
Brand Name: Esco
Operating Pressure: 1.76MPa (18kgf/cm²)
Operating Temperature: -30°C/70°C
Nominal Diameter: 15 (1/2“)
This type is installed on the male threaded end of piping and hose fittings.
4548745576108
“R1/2” Female Thread Plug (Aluminum) D:32, E:16, K:32, h:28, H:38
(text created at , 2025-05-09)
Material: Aluminum die-cast (ADC12)
Operating Pressure: 1.76MPa (18kgf/cm2)
Operating Temperature: -30℃/70℃
Nominal Diameter: 15 (1/2”)
Thread Size: PT1/2”
Dimensions (mm): D:32, E:16, K:32, h:28, H:38
Weight: 0.05kg
This type is installed on the male threaded end of piping or hose fittings.
Brand Name: Esco
Operating Pressure: 1.76MPa (18kgf/cm²)
Operating Temperature: -30°C/70°C
Nominal Diameter: 15 (1/2“)
This type is installed on the male threaded end of piping and hose fittings.
4548745576108
“R1/2” Female Thread Plug (Aluminum) D:32, E:16, K:32, h:28, H:38
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
1,456 JPY (Including Tax)
Stock :
4
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
