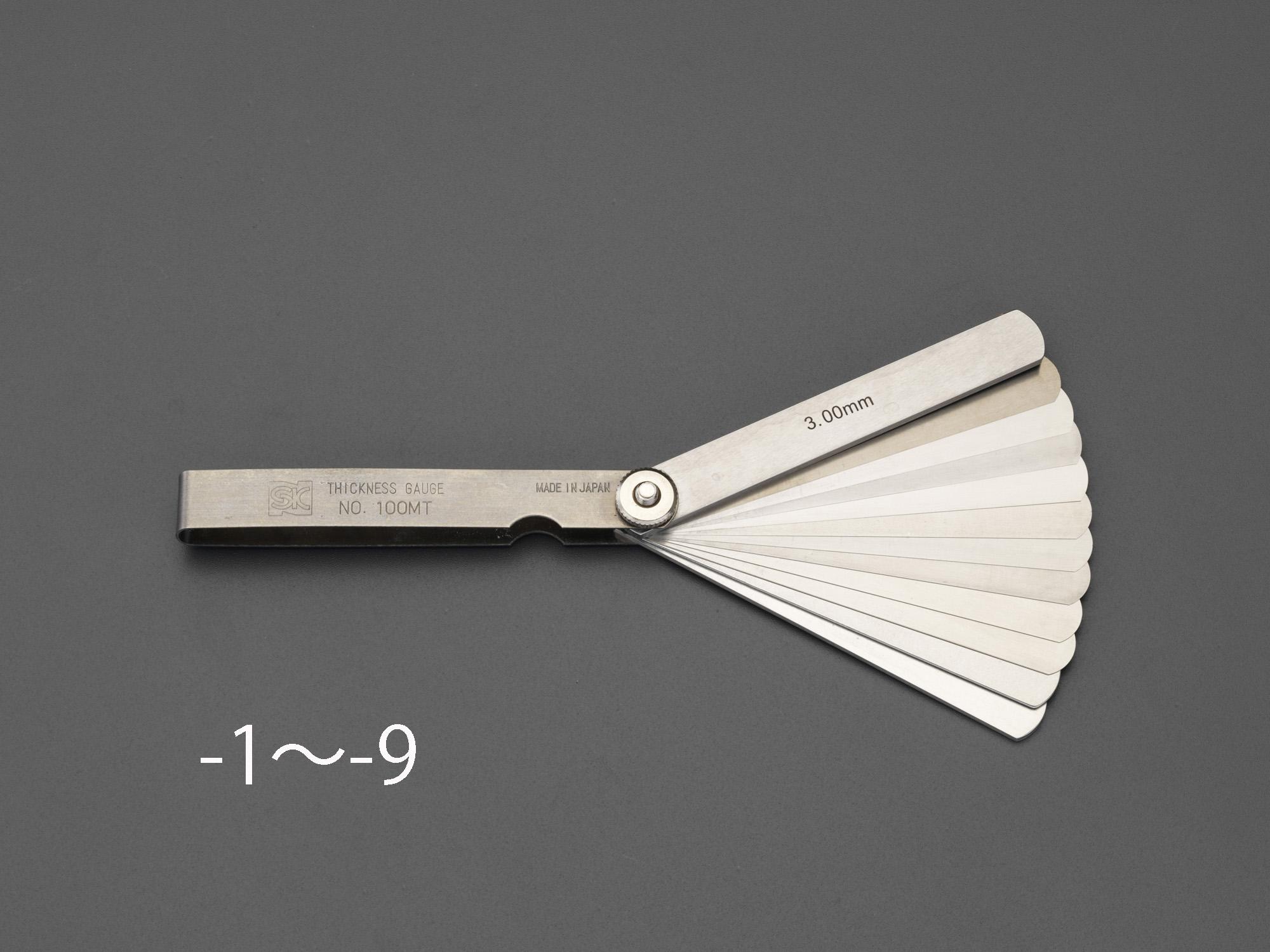

100mm / 13-piece thickness gauge set

4548745579833

B006Y4AOSE

EA725RF-6

0.03・0.04・0.05・0.06・0.07・0.08・0.10・0.15・0.20・0.30・1.00・2.00・3.00

Leaf Length: 100mm Leaf Width: 12.7mm Material: Carbon Tool Steel Number of Leaves: 13 Size: 0.03・0.04・0.05・0.06・0.07・0.08・0.10・0.15・0.20・0.30・1.00・ 2.00・3.00mm Weight: 90g Accuracy: 0.01/0.06: ±0.005mm, 0.07/0.10: ±0.01mm, 0.11/0.35: ±0.015mm, 0.40/0.60: ±0.02mm, 0.70/3.00: ±0.035mm. It enables precise inspection by inserting into minute gaps between two planes that are difficult to measure with conventional instruments. This is an essential measuring tool for gauging clearances in pistons and cylinder sections of automobiles and power generation machinery.

Brand Name: Esco
Material: Carbon steel
Leaf length: 100mm
Leaf Width: 12.7mm
Material: Carbon Tool Steel
Number of Leaves: 13
Sizes: 0.03・0.04・0.05・0.06・0.07・0.08・0.10・0.15・0.20・0.30・1.00・2.00・3.00mm
Weight: 90g
Accuracy: 0.01/0.06: ±0.005mm, 0.07/0.10: ±0.01mm, 0.11/0.35: ±0.015mm, 0.40/0.60: ±0.02mm, 0.70/3.00: ±0.035mm
By inserting it into the minute gaps between two planes that are difficult to measure with measuring instruments, precise inspection is possible.
This is a measuring tool necessary for measuring the clearance between pistons and cylinders in automobiles and power generation machinery.
4548745579833
100mm／13-piece set thickness gauge
(text created at , 2025-05-12)

250x100x250 mm

2000 g
