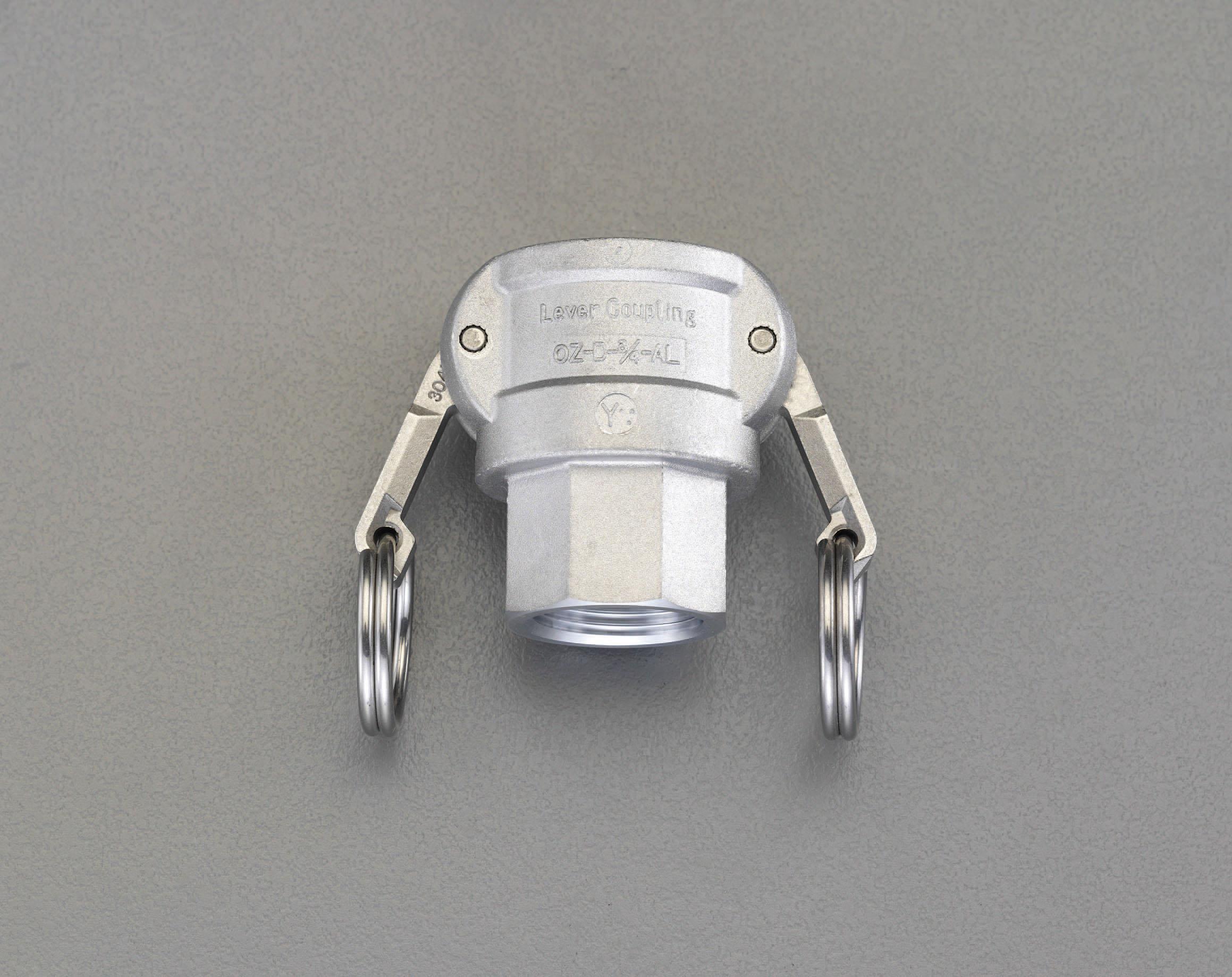

R2 Female Thread Coupling (Aluminum)
JAN
4548745580921
ASIN
B006Y49YLM
Maker
Model No.
EA462BD-20
Color
Size
A: 201, B: 99, C: 63, F: 50, H: 76
Description
Material: Aluminum die-cast (ADC12) Operating Pressure: 1.76MPa (18kgf/cm²) Operating Temperature: -30°C / 70°C Nominal Diameter: 50 (2“) Thread Size: PT2” Dimensions (mm): A: 201, B: 99, C: 63, F: 50, H:76 Weight: 0.45kg This type attaches to the male threaded end of pipe or hose fittings. It can be easily connected and disconnected by operating the lever on the coupler.
Brand Name: Esco
Material: Aluminum Die Cast (ADC12)
Working Pressure: 1.76MPa (18kgf/cm²)
Operating Temperature: -30°C / 70°C
Nominal Diameter: 50 (2“)
Thread Size: PT2”
Dimensions (mm): A: 201, B: 99, C: 63, F: 50, H: 76
Weight: 0.45kg
This type is installed on the male threaded end of pipe or hose fittings.
It can be easily connected and disconnected by operating the lever attached to the coupler.
4548745580921
“R2” “Female Thread Coupling (Aluminum)”
(text created at , 2025-05-09)
Brand Name: Esco
Material: Aluminum Die Cast (ADC12)
Working Pressure: 1.76MPa (18kgf/cm²)
Operating Temperature: -30°C / 70°C
Nominal Diameter: 50 (2“)
Thread Size: PT2”
Dimensions (mm): A: 201, B: 99, C: 63, F: 50, H: 76
Weight: 0.45kg
This type is installed on the male threaded end of pipe or hose fittings.
It can be easily connected and disconnected by operating the lever attached to the coupler.
4548745580921
“R2” “Female Thread Coupling (Aluminum)”
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
