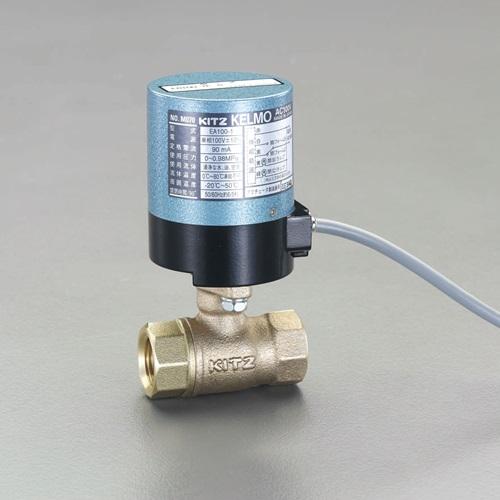

ESCO Rc3/8 Electric Ball Valve (AC100V) EA470BG-3
JAN
4548745581485
ASIN
B006Y4A2V8
Maker
Model No.
EA470BG-3
Color
Size
d (bore diameter): 7.5, d1: Rc3/8, H: 104, H1: 28, L: 46, L1: 22, S1: 22, H2: 70, H3: 5, D: 60
Description
Material: Valve body: Bronze (CAC406), Body cap: C3771BE, Stem: High-strength brass (Cr plated), Ball: K-metal (Ni-Cr plated), Ball seat: PTFE, O-ring: FKM\
Maximum working pressure: 0.98MPa\
Working fluid: Air, Water, Oil\
Power Supply: AC100V (50/60Hz)\
Rated Current: 90mA\
Maximum Power Consumption: 9W\
Maximum Output Torque: 1.9N·m\
Rated Duty: Continuous\
Insulation Class: E\
Micro Switch Contact Rating: AC125V 2A (resistive load), AC250V 0.6A (resistive load)\
Position limit switch: 1 NO, 1 NC (energized)\
Withstand voltage: AC1500V (1 minute) or AC1800V (1 second)\
Operating environment: Suitable for outdoor use (avoid direct sunlight) Ambient temperature: -20°C/+50°C\
Mounting position: Vertical/horizontal\
Power cord/connection method: Vinyl cab tire cord, 5-core, length 700mm, 0.3mm2\
Lubrication method: Greer\
Overload protection device: Impedance protection\
Coating: Housing: Black, Cover: Light blue hammer tone\\ nFunction: 90° forward/reverse rotation\
Waterproof structure: Equivalent to IP56 of IEC529\
Screw size (PT): 3/8"\
Opening/closing time: 50Hz: approx. 6 seconds, 60Hz: approx. 5 seconds\
Size (mm): d (bore diameter): 7.5, d1: Rc3/8, H: 104, H1: 28, L: 46, L1: 22, S1: 22, H2: 70, H3: 5, D: 60\
Weight: 0.631 kg
Brand Name: Esco
Material: Valve Body: Bronze (CAC406)
Material: Valve Body: Bronze (CAC406), Body Cap: C3771BE, Stem: High-strength brass (Cr plated), Ball: K-metal (Ni-Cr plated), Ball seat: PTFE, O-ring: FKM
Maximum operating pressure: 0.98MPa
Operating fluid: Air, water, oil
Power supply: AC100V (50/60Hz)\ Rated Current: 90mA
Maximum Power Consumption: 9W
Maximum Output Torque: 1.9N·m
Rated Duty: Continuous
Insulation Class: E
Micro Switch Contact Rating: AC125V 2A (resistive load), AC250V 0.6A (resistive load)
4548745581485\ nB006Y4A2V8
ESCO Rc3/8 Electric Ball Valve (AC100V) EA470BG-3
(text created at , 2025-11-12)
Maximum working pressure: 0.98MPa\
Working fluid: Air, Water, Oil\
Power Supply: AC100V (50/60Hz)\
Rated Current: 90mA\
Maximum Power Consumption: 9W\
Maximum Output Torque: 1.9N·m\
Rated Duty: Continuous\
Insulation Class: E\
Micro Switch Contact Rating: AC125V 2A (resistive load), AC250V 0.6A (resistive load)\
Position limit switch: 1 NO, 1 NC (energized)\
Withstand voltage: AC1500V (1 minute) or AC1800V (1 second)\
Operating environment: Suitable for outdoor use (avoid direct sunlight) Ambient temperature: -20°C/+50°C\
Mounting position: Vertical/horizontal\
Power cord/connection method: Vinyl cab tire cord, 5-core, length 700mm, 0.3mm2\
Lubrication method: Greer\
Overload protection device: Impedance protection\
Coating: Housing: Black, Cover: Light blue hammer tone\\ nFunction: 90° forward/reverse rotation\
Waterproof structure: Equivalent to IP56 of IEC529\
Screw size (PT): 3/8"\
Opening/closing time: 50Hz: approx. 6 seconds, 60Hz: approx. 5 seconds\
Size (mm): d (bore diameter): 7.5, d1: Rc3/8, H: 104, H1: 28, L: 46, L1: 22, S1: 22, H2: 70, H3: 5, D: 60\
Weight: 0.631 kg
Brand Name: Esco
Material: Valve Body: Bronze (CAC406)
Material: Valve Body: Bronze (CAC406), Body Cap: C3771BE, Stem: High-strength brass (Cr plated), Ball: K-metal (Ni-Cr plated), Ball seat: PTFE, O-ring: FKM
Maximum operating pressure: 0.98MPa
Operating fluid: Air, water, oil
Power supply: AC100V (50/60Hz)\ Rated Current: 90mA
Maximum Power Consumption: 9W
Maximum Output Torque: 1.9N·m
Rated Duty: Continuous
Insulation Class: E
Micro Switch Contact Rating: AC125V 2A (resistive load), AC250V 0.6A (resistive load)
4548745581485\ nB006Y4A2V8
ESCO Rc3/8 Electric Ball Valve (AC100V) EA470BG-3
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
26,271 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
