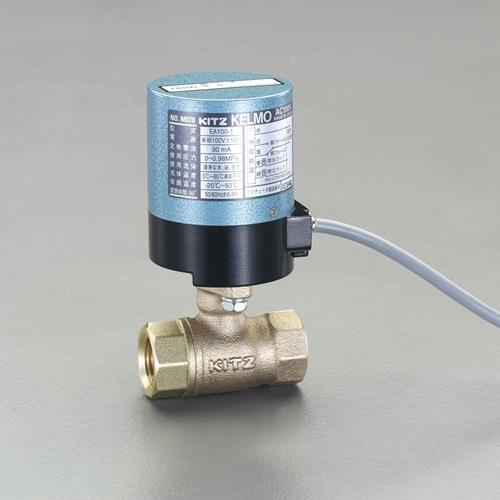

ESCO Rc3/4 Electric Ball Valve (AC100V) EA470BG-6
JAN
4548745581508
ASIN
B006Y4A3CQ
Maker
Model No.
EA470BG-6
Color
Size
d (bore diameter): 15, d1: Rc3/4, H: 113.5, H1: 37.5, L: 68, L1: 34, S1: 34, H2: 70, H3: 5, D: 60
Description
Brand Name: Esco
Material: Valve Body: Bronze (CAC406)
Material: Valve Body: Bronze (CAC406), Body Cap: C3771BE, Stem: High-strength brass (Cr plated), Ball: K-metal (Ni-Cr plated), Ball seat: PTFE, O-ring: FKM
Maximum operating pressure: 0.98MPa
Operating fluid: Air, water, oil
Power supply: AC100V (50/60Hz)\ Rated Current: 90mA
Maximum Power Consumption: 9W
Maximum Output Torque: 3.9N·m
Rated Duty: Continuous
Insulation Class: E
Micro Switch Contact Rating: AC125V 2A (resistive load), AC250V 0.6A (resistive load)
4548745581508\ nB006Y4A3CQ
ESCO Rc3/4 Electric Ball Valve (AC100V) EA470BG-6
(text created at , 2025-11-12)
Material: Valve Body: Bronze (CAC406)
Material: Valve Body: Bronze (CAC406), Body Cap: C3771BE, Stem: High-strength brass (Cr plated), Ball: K-metal (Ni-Cr plated), Ball seat: PTFE, O-ring: FKM
Maximum operating pressure: 0.98MPa
Operating fluid: Air, water, oil
Power supply: AC100V (50/60Hz)\ Rated Current: 90mA
Maximum Power Consumption: 9W
Maximum Output Torque: 3.9N·m
Rated Duty: Continuous
Insulation Class: E
Micro Switch Contact Rating: AC125V 2A (resistive load), AC250V 0.6A (resistive load)
4548745581508\ nB006Y4A3CQ
ESCO Rc3/4 Electric Ball Valve (AC100V) EA470BG-6
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
28,648 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
