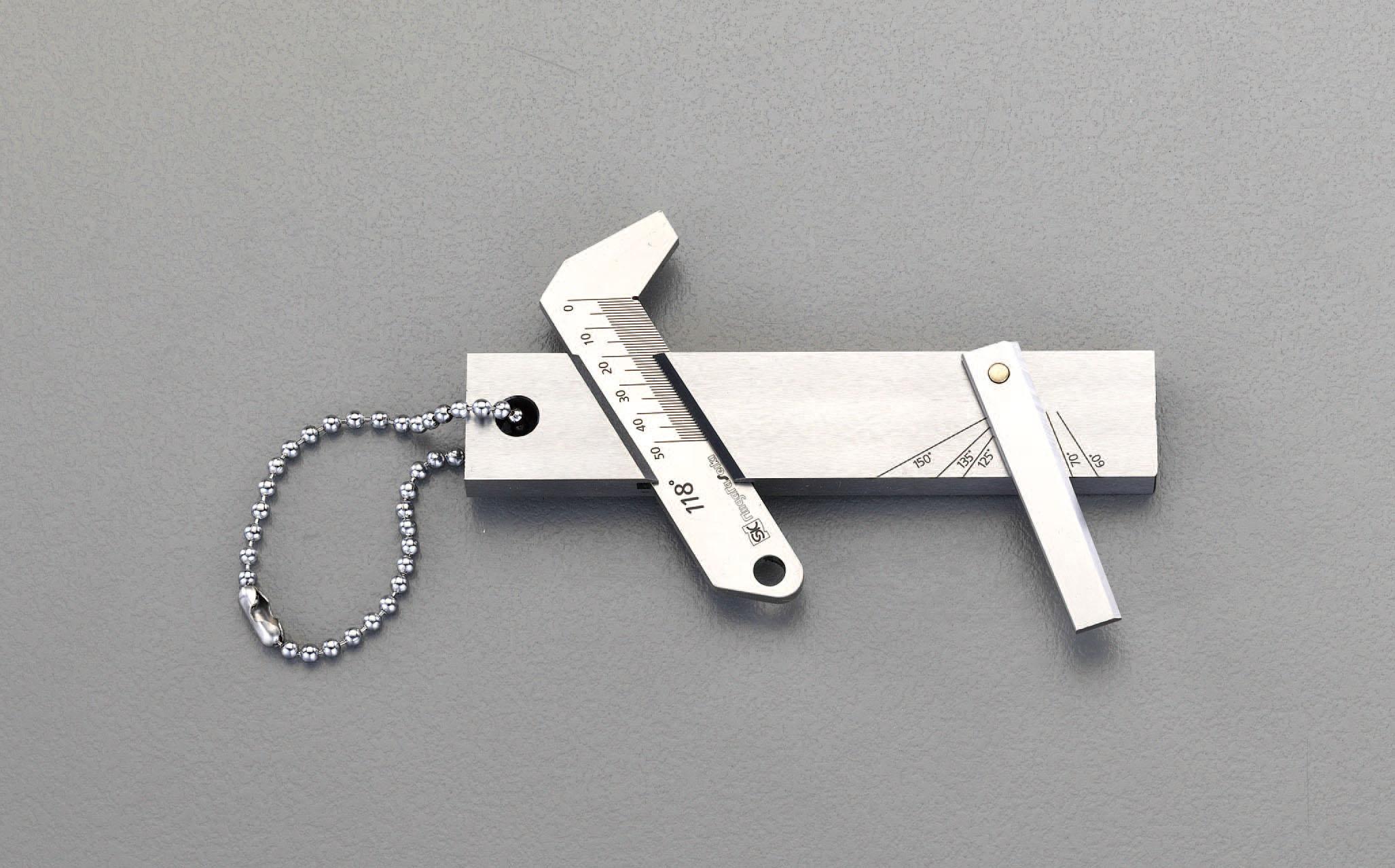

60°–150° Drill Point Gauge
JAN
4548745581836
ASIN
B006Y4B7WG
Maker
Model No.
EA725SD-18
Color
Size
Base: 22×110×8 mm Rotor: 7.5×50×2 mm
Description
Measuring Drill Diameter: 3/45mm diameter
Point Angle: 118°
Accuracy: ±1.5°
Size: Base: 22×110×8mm, Rotator: 7.5×50×2mm, Main Scale: 68×9mm
Weight: 160g
Material: Carbon tool steel
For measuring drill point angles, chisel edge eccentricity, and lip height differences.
Clear graduations for easy reading.
Features rotor angle settings (60°, 70°, 90°, 125°, 135°, 150° graduations), also usable as a workpiece tip angle gauge.
Brand Name: Esco
Material: Iron
Measured Drill Diameter: 3/45mm diameter
Tip Angle: 118°
Easy to read with clear graduations.
Angle setting via rotator (60°, 70°, 90°, 125°, 135°, 150° graduations) allows use as a workpiece tip angle gauge.
4548745581836
60°–150° Drill Point Gauge
(text created at , 2025-05-11)
Point Angle: 118°
Accuracy: ±1.5°
Size: Base: 22×110×8mm, Rotator: 7.5×50×2mm, Main Scale: 68×9mm
Weight: 160g
Material: Carbon tool steel
For measuring drill point angles, chisel edge eccentricity, and lip height differences.
Clear graduations for easy reading.
Features rotor angle settings (60°, 70°, 90°, 125°, 135°, 150° graduations), also usable as a workpiece tip angle gauge.
Brand Name: Esco
Material: Iron
Measured Drill Diameter: 3/45mm diameter
Tip Angle: 118°
Easy to read with clear graduations.
Angle setting via rotator (60°, 70°, 90°, 125°, 135°, 150° graduations) allows use as a workpiece tip angle gauge.
4548745581836
60°–150° Drill Point Gauge
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
1000 g
4,983 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
