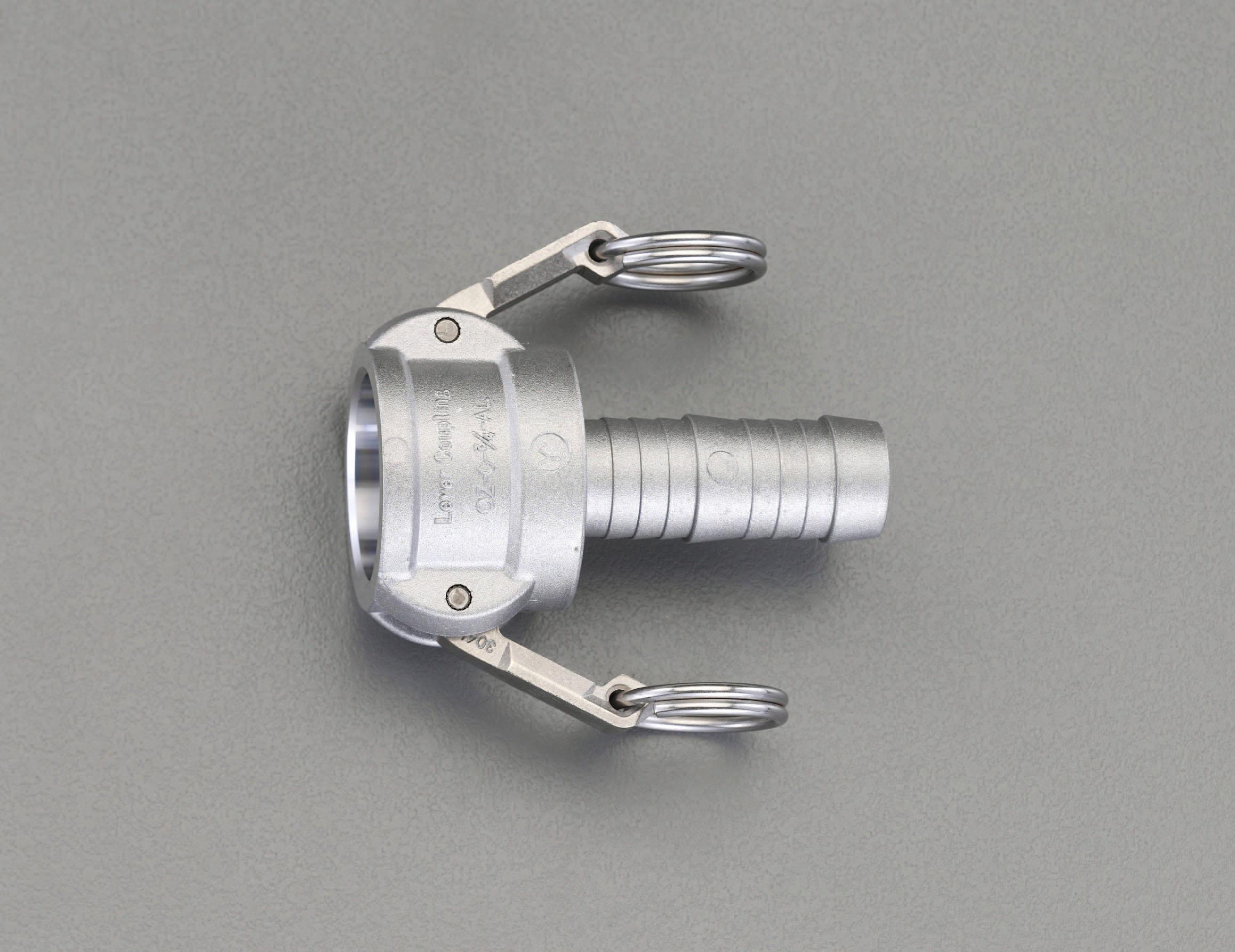

1-1/4" Hose Coupling (Aluminum)
JAN
4548745582741
ASIN
B006Y4A24A
Maker
Model No.
EA462BF-12
Color
Size
A: 183, B: 81, C: 46, F: 25, G: 32, l: 34, h1: 64, H: 112
Description
Material: Aluminum die-cast (ADC12) Working pressure: 1.76MPa (18kgf/cm²) Working temperature: -30℃/70℃ Nominal diameter: 32 (1-1/4") Compatible hose inner diameter: 32mm Dimensions (mm): A:183, B: 81, C: 46, F: 25, G: 32, l: 34, h1: 64, H: 112 Weight: 0.36 kg This type is used with hose clamps or tightening on rubber hoses, PVC hoses, etc. It can be easily attached and detached by operating the lever on the coupler.
Brand Name: Esco
Material: Aluminum Die Cast (ADC12)
Working Pressure: 1.76MPa (18kgf/cm²)
Working Temperature: -30℃/70℃
Nominal Diameter: 32 (1-1/4")
Suitable Hose Inner Diameter: 32mm
Dimensions (mm): A:183, B:81, C:46, F:25, G:32, l:34, h1:64, H:112
Weight: 0.36kg
This type is used with rubber hoses, PVC hoses, etc., secured by hose clamps or tightening.
It can be easily attached and detached by operating the lever on the coupler.
4548745582741
“1-1/4” Hose Coupling (Aluminum)
(text created at , 2025-05-11)
Brand Name: Esco
Material: Aluminum Die Cast (ADC12)
Working Pressure: 1.76MPa (18kgf/cm²)
Working Temperature: -30℃/70℃
Nominal Diameter: 32 (1-1/4")
Suitable Hose Inner Diameter: 32mm
Dimensions (mm): A:183, B:81, C:46, F:25, G:32, l:34, h1:64, H:112
Weight: 0.36kg
This type is used with rubber hoses, PVC hoses, etc., secured by hose clamps or tightening.
It can be easily attached and detached by operating the lever on the coupler.
4548745582741
“1-1/4” Hose Coupling (Aluminum)
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,494 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
