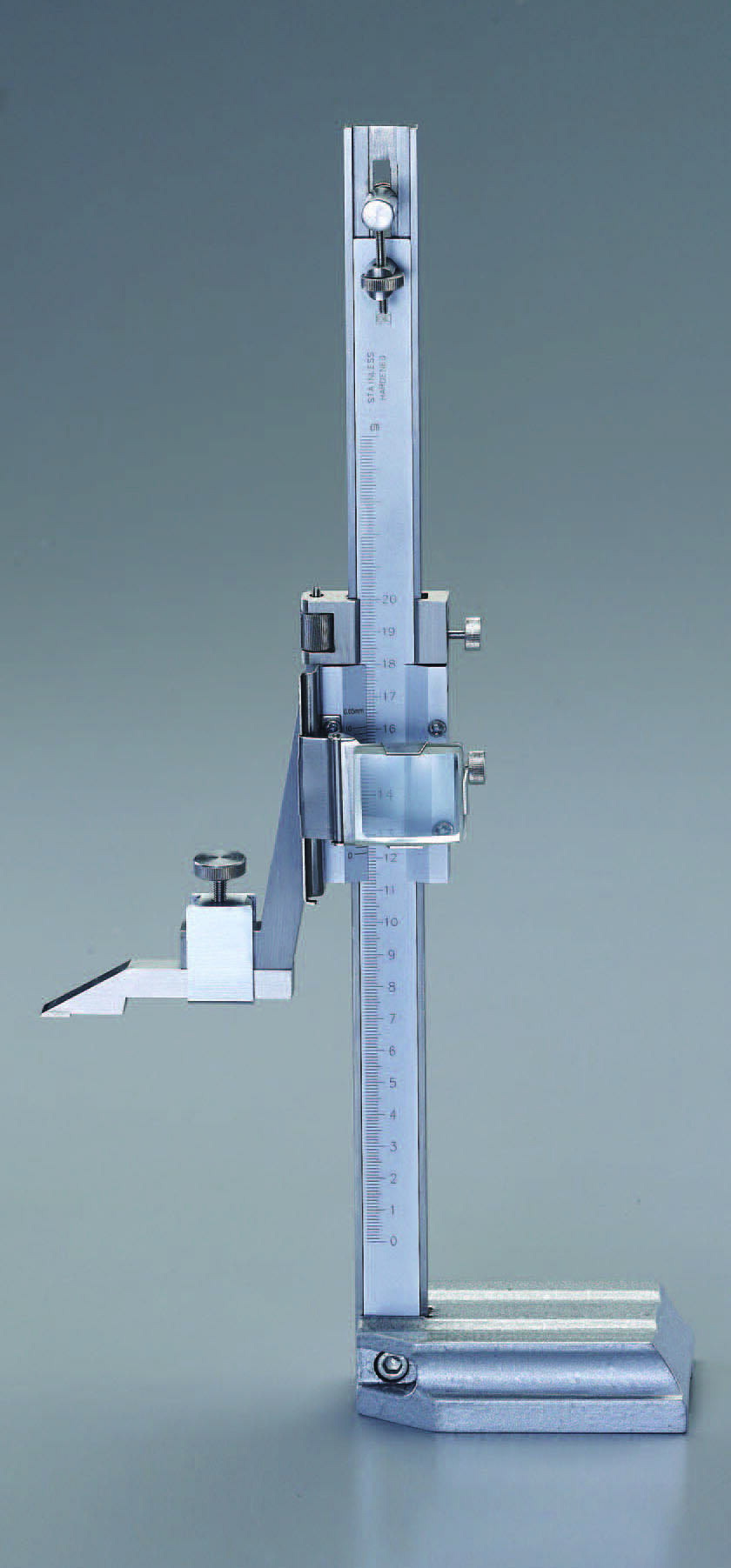

ESCO 150mm Height Gauge EA725XF-1
JAN
4548745582772
ASIN
B006Y4BGEA
Maker
Model No.
EA725XF-1
Color
Size
A: 341 mm, B: 103 mm, C: 28 mm, D: 67 mm, E: 20 mm, F: 77 mm, G: 22 mm, H: 6 mm, I: 60 mm
Description
ESCO-ESCO-EA725XF-1-150mm Height Gauge
Measuring Range: 0/150mm\
Minimum Graduation: 0.05mm\
Accuracy: ±0.05mm\
Slider Micro-Adjustment Up/Down: 8mm\
Main Scale Micro-Adjustment Up/Down: 10mm\
Size: A: 341mm, B: 103mm, C: 28mm, D: 67mm, E: 20mm, F: 77mm, G: 22mm, H: 6mm, I: 60mm\
Weight: 1.6kg\\ Material: Main scale/vernier: Stainless steel, Base: Cast iron, Scribing tool: With carbide tip\
Accessories: Dial indicator holder, Scribing tool, Main scale magnifying lens\
Measuring surface features steel overlay for wear resistance\
Dial indicator mounting possible using holder. \
Easy-to-read magnifying lens (3x glass lens)
Brand Name: Esco
Dial indicator holder, scriber, main scale magnifying lens
Measuring Range: 0/150mm
Minimum Graduation: 0.05mm
Accuracy: ±0.05mm
Vertical travel of slider fine adjustment: 8mm
Vertical travel of main scale fine adjustment: 10mm
Dimensions: A: 341mm, B: 103mm, C: 28mm, D: 67mm, E: 20mm, F: 77mm, G: 22mm, H: 6mm, I: 60mm
Weight: 1.6kg
Material: Main Scale/Vernier: Stainless Steel, Base: Cast Iron, Scribing Tool: Carbide Tip
Accessories: Dial Indicator Holder, Scribing Tool, Main Scale Magnifying Lens
4548745582772\ nB006Y4BGEA
ESCO 150mm Height Gauge EA725XF-1
(text created at , 2025-11-12)
Measuring Range: 0/150mm\
Minimum Graduation: 0.05mm\
Accuracy: ±0.05mm\
Slider Micro-Adjustment Up/Down: 8mm\
Main Scale Micro-Adjustment Up/Down: 10mm\
Size: A: 341mm, B: 103mm, C: 28mm, D: 67mm, E: 20mm, F: 77mm, G: 22mm, H: 6mm, I: 60mm\
Weight: 1.6kg\\ Material: Main scale/vernier: Stainless steel, Base: Cast iron, Scribing tool: With carbide tip\
Accessories: Dial indicator holder, Scribing tool, Main scale magnifying lens\
Measuring surface features steel overlay for wear resistance\
Dial indicator mounting possible using holder. \
Easy-to-read magnifying lens (3x glass lens)
Brand Name: Esco
Dial indicator holder, scriber, main scale magnifying lens
Measuring Range: 0/150mm
Minimum Graduation: 0.05mm
Accuracy: ±0.05mm
Vertical travel of slider fine adjustment: 8mm
Vertical travel of main scale fine adjustment: 10mm
Dimensions: A: 341mm, B: 103mm, C: 28mm, D: 67mm, E: 20mm, F: 77mm, G: 22mm, H: 6mm, I: 60mm
Weight: 1.6kg
Material: Main Scale/Vernier: Stainless Steel, Base: Cast Iron, Scribing Tool: Carbide Tip
Accessories: Dial Indicator Holder, Scribing Tool, Main Scale Magnifying Lens
4548745582772\ nB006Y4BGEA
ESCO 150mm Height Gauge EA725XF-1
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
44,162 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
