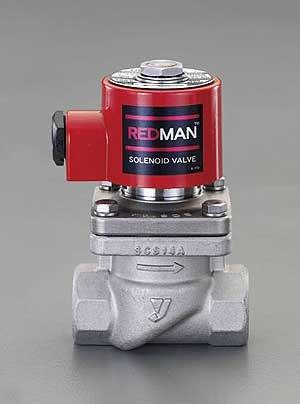

ESCO Rc1・1/4 Solenoid Valve EA470DV-12
JAN
4548745588255
ASIN
B006Y4AJHA
Maker
Model No.
EA470DV-12
Color
Size
d: 32A, L: 110, H1: 26.0, H: 172
Description
ESCO-Solenoid Valve-EA470DV
Nominal Diameter: 32A (1-1/4“)\
Thread Size: Rc (PT) 1-1/4”\
Dimensions (mm): d: 32A, L: 110, H1: 26.0, H: 172\
Weight: 3.1 kg\
Material: Valve body/spool: Stainless steel, Disc: Fluoroplastic\
Construction: Pilot-operated piston type\
Applicable fluids: Steam, cold/hot water, air, nitrogen gas, carbon dioxide gas (dry state), argon gas, oil (20 cSt or less)\
Applicable Pressure Range: 0/1.0MPa (Vacuum use not permitted)\
Minimum Operating Differential Pressure: 0MPa (When coil is horizontal, differential pressure of 0.03MPa or more is required.)\
Seat Leakage: 50mL/min (Standard condition) (At 0.6MPa air pressure)\\ nFluid temperature: 5/180°C (no freezing) \
Ambient temperature: 50°C or below (no freezing) \
Operating mode: Normally open when energized \
Rated voltage: AC100/200V selectable (50/60Hz compatible) \
Voltage fluctuation tolerance: Rated voltage -5%/+10% \\ nRated current: 0.46/0.23A\
Starting current: 1.90/0.95A\
Compatible with terminal boxes and conduit in addition to standard lead wire wiring\
Horizontal or vertical mounting possible (within 90° from coil facing upward)\
Protective structure unaffected by water droplets (splash-proof type)\
Protection rating: IP64\\ nInsulation resistance: 50MΩ or more/500V megger\
Withstand voltage test: 1500V/min\
Lead wire outlet: Conduit G1/2 (CTG16)\
Type H standard for excellent insulation at high temperatures\
Cv value: 17.7
Brand name: Esco
Material: Valve body/valve stem: Stainless steel
Nominal diameter: 32A (1-1/4“)
Thread size: Rc (PT) 1-1/4”
Dimensions (mm): d: 32A, L: 110, H1: 26.0, H: 172
Weight: 3.1 kg
Material: Valve Body/Valve Body: Stainless Steel, Disc: Fluoropolymer
Construction: Pilot-operated Piston Type
Applicable Fluids: Steam, Cold/Warm Water, Air, Nitrogen Gas, Carbon Dioxide Gas (Dry Condition), Argon Gas, Oil (20 cSt or less)
Applicable Pressure Range: 0/1.0MPa (Vacuum Use Not Permitted)\ Minimum operating differential pressure: 0MPa (When coil is horizontal, differential pressure of 0.03MPa or higher is required.)
Seat leakage rate: 50mL/min (Standard condition) (At 0.6MPa air pressure)
4548745588255\ nB006Y4AJHA
ESCO Rc1・1/4 Solenoid Valve EA470DV-12
(text created at , 2025-11-12)
Nominal Diameter: 32A (1-1/4“)\
Thread Size: Rc (PT) 1-1/4”\
Dimensions (mm): d: 32A, L: 110, H1: 26.0, H: 172\
Weight: 3.1 kg\
Material: Valve body/spool: Stainless steel, Disc: Fluoroplastic\
Construction: Pilot-operated piston type\
Applicable fluids: Steam, cold/hot water, air, nitrogen gas, carbon dioxide gas (dry state), argon gas, oil (20 cSt or less)\
Applicable Pressure Range: 0/1.0MPa (Vacuum use not permitted)\
Minimum Operating Differential Pressure: 0MPa (When coil is horizontal, differential pressure of 0.03MPa or more is required.)\
Seat Leakage: 50mL/min (Standard condition) (At 0.6MPa air pressure)\\ nFluid temperature: 5/180°C (no freezing) \
Ambient temperature: 50°C or below (no freezing) \
Operating mode: Normally open when energized \
Rated voltage: AC100/200V selectable (50/60Hz compatible) \
Voltage fluctuation tolerance: Rated voltage -5%/+10% \\ nRated current: 0.46/0.23A\
Starting current: 1.90/0.95A\
Compatible with terminal boxes and conduit in addition to standard lead wire wiring\
Horizontal or vertical mounting possible (within 90° from coil facing upward)\
Protective structure unaffected by water droplets (splash-proof type)\
Protection rating: IP64\\ nInsulation resistance: 50MΩ or more/500V megger\
Withstand voltage test: 1500V/min\
Lead wire outlet: Conduit G1/2 (CTG16)\
Type H standard for excellent insulation at high temperatures\
Cv value: 17.7
Brand name: Esco
Material: Valve body/valve stem: Stainless steel
Nominal diameter: 32A (1-1/4“)
Thread size: Rc (PT) 1-1/4”
Dimensions (mm): d: 32A, L: 110, H1: 26.0, H: 172
Weight: 3.1 kg
Material: Valve Body/Valve Body: Stainless Steel, Disc: Fluoropolymer
Construction: Pilot-operated Piston Type
Applicable Fluids: Steam, Cold/Warm Water, Air, Nitrogen Gas, Carbon Dioxide Gas (Dry Condition), Argon Gas, Oil (20 cSt or less)
Applicable Pressure Range: 0/1.0MPa (Vacuum Use Not Permitted)\ Minimum operating differential pressure: 0MPa (When coil is horizontal, differential pressure of 0.03MPa or higher is required.)
Seat leakage rate: 50mL/min (Standard condition) (At 0.6MPa air pressure)
4548745588255\ nB006Y4AJHA
ESCO Rc1・1/4 Solenoid Valve EA470DV-12
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
70,367 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
