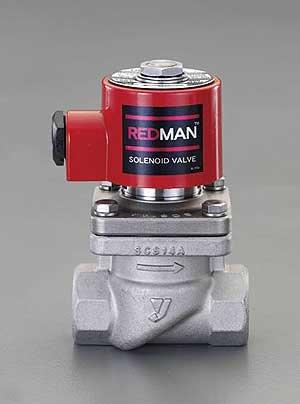

ESCO Rc1・1/2 Solenoid Valve EA470DV-14
JAN
4548745588262
ASIN
B006Y4AJXE
Maker
Model No.
EA470DV-14
Color
Size
d: 40A, L: 120, H1: 29.5, H: 178
Description
Brand Name: Esco
Material: Valve body/valve stem: Stainless steel
Nominal diameter: 40A (1-1/2“)
Thread size: Rc (PT) 1-1/2”
Dimensions (mm): d: 40A, L: 120, H1: 29.5, H: 178
Weight: 4.0 kg
Material: Valve body/Valve stem: Stainless steel, Disc: Fluoropolymer
Construction: Pilot-operated piston type
Applicable Fluids: Steam, Cold/Warm water, Air, Nitrogen gas, Carbon dioxide gas (dry state), argon gas, oil (20 cSt or less)
Applicable Pressure Range: 0/1.0 MPa (Vacuum use not permitted)
Minimum Operating Differential Pressure: 0 MPa (Differential pressure of 0.03 MPa or more is required when the coil is horizontal.)
Seat Leakage: 50 mL/min (Standard conditions) (At 0.6MPa air pressure)
4548745588262
B006Y4AJXE
ESCO Rc1・1/2 Solenoid Valve EA470DV-14
(text created at , 2025-11-13)
Material: Valve body/valve stem: Stainless steel
Nominal diameter: 40A (1-1/2“)
Thread size: Rc (PT) 1-1/2”
Dimensions (mm): d: 40A, L: 120, H1: 29.5, H: 178
Weight: 4.0 kg
Material: Valve body/Valve stem: Stainless steel, Disc: Fluoropolymer
Construction: Pilot-operated piston type
Applicable Fluids: Steam, Cold/Warm water, Air, Nitrogen gas, Carbon dioxide gas (dry state), argon gas, oil (20 cSt or less)
Applicable Pressure Range: 0/1.0 MPa (Vacuum use not permitted)
Minimum Operating Differential Pressure: 0 MPa (Differential pressure of 0.03 MPa or more is required when the coil is horizontal.)
Seat Leakage: 50 mL/min (Standard conditions) (At 0.6MPa air pressure)
4548745588262
B006Y4AJXE
ESCO Rc1・1/2 Solenoid Valve EA470DV-14
(text created at , 2025-11-13)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
