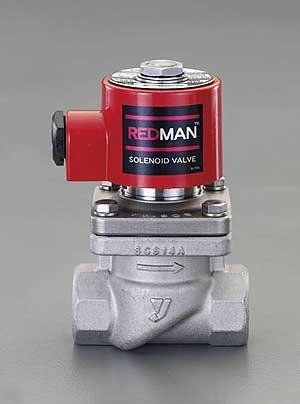

ESCO Rc3/8 Solenoid Valve EA470DV-3
JAN
4548745590555
ASIN
B006Y4AKPQ
Maker
Model No.
EA470DV-3
Color
Size
d: 10A, L: 70, H1: 14.5, H: 127
Description
Brand Name: Esco
Material: Valve body/valve stem: Stainless steel
Nominal size: 10A (3/8“)
Thread size: Rc(PT) 3/8”
Size (mm): d: 10A, L:70, H1:14.5, H:127
Weight: 1.4kg
Material: Valve Body/Valve Body: Stainless Steel, Disc: Fluoropolymer
Construction: Pilot-operated Piston Type
Applicable Fluids: Steam, Cold/Warm Water, Air, Nitrogen Gas, Carbon Dioxide Gas (Dry State), Argon Gas, Oil (20 cSt or less)\ nApplicable Pressure Range: 0/1.0MPa (Vacuum use prohibited)
Minimum Operating Differential Pressure: 0MPa (Differential pressure of 0.03MPa or higher required when coil is horizontal.)
Seat Leakage: 50mL/min (Standard conditions) (At 0.6MPa air pressure)
4548745590555\ nB006Y4AKPQ
ESCO Rc3/8 Solenoid Valve EA470DV-3
(text created at , 2025-11-12)
Material: Valve body/valve stem: Stainless steel
Nominal size: 10A (3/8“)
Thread size: Rc(PT) 3/8”
Size (mm): d: 10A, L:70, H1:14.5, H:127
Weight: 1.4kg
Material: Valve Body/Valve Body: Stainless Steel, Disc: Fluoropolymer
Construction: Pilot-operated Piston Type
Applicable Fluids: Steam, Cold/Warm Water, Air, Nitrogen Gas, Carbon Dioxide Gas (Dry State), Argon Gas, Oil (20 cSt or less)\ nApplicable Pressure Range: 0/1.0MPa (Vacuum use prohibited)
Minimum Operating Differential Pressure: 0MPa (Differential pressure of 0.03MPa or higher required when coil is horizontal.)
Seat Leakage: 50mL/min (Standard conditions) (At 0.6MPa air pressure)
4548745590555\ nB006Y4AKPQ
ESCO Rc3/8 Solenoid Valve EA470DV-3
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
