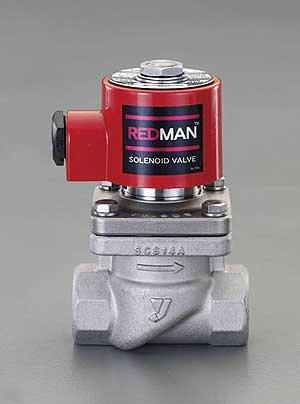

ESCO Rc1 Solenoid Valve EA470DV-8
JAN
4548745590593
ASIN
B006Y4ALVY
Maker
Model No.
EA470DV-8
Color
Size
d: 25A, L: 95, H1: 21.0, H: 135
Description
Brand Name: Esco
Material: Valve Body/Valve Body: Stainless Steel
Nominal Diameter: 25A (1“)
Thread Size: Rc (PT) 1”
Dimensions (mm): d: 25A, L: 95, H1: 21.0, H: 135
Weight: 1.9 kg
Material: Valve Body/Valve Body: Stainless Steel, Disc: Fluororesin
Construction: Pilot-operated Piston Type
Applicable Fluids: Steam, Cold/Warm Water, Air, Nitrogen Gas, Carbon Dioxide Gas (Dry State), Argon Gas, Oil (20 cSt or less)
Applicable Pressure Range: 0/1.0 MPa (Vacuum Use Not Permitted)\ Minimum operating differential pressure: 0MPa (Differential pressure of 0.03MPa or higher is required when the coil is horizontal.)
Seat leakage rate: 50mL/min (Standard condition) (At 0.6MPa air pressure)
4548745590593\ nB006Y4ALVY
ESCO Rc1 Solenoid Valve EA470DV-8
(text created at , 2025-11-12)
Material: Valve Body/Valve Body: Stainless Steel
Nominal Diameter: 25A (1“)
Thread Size: Rc (PT) 1”
Dimensions (mm): d: 25A, L: 95, H1: 21.0, H: 135
Weight: 1.9 kg
Material: Valve Body/Valve Body: Stainless Steel, Disc: Fluororesin
Construction: Pilot-operated Piston Type
Applicable Fluids: Steam, Cold/Warm Water, Air, Nitrogen Gas, Carbon Dioxide Gas (Dry State), Argon Gas, Oil (20 cSt or less)
Applicable Pressure Range: 0/1.0 MPa (Vacuum Use Not Permitted)\ Minimum operating differential pressure: 0MPa (Differential pressure of 0.03MPa or higher is required when the coil is horizontal.)
Seat leakage rate: 50mL/min (Standard condition) (At 0.6MPa air pressure)
4548745590593\ nB006Y4ALVY
ESCO Rc1 Solenoid Valve EA470DV-8
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
