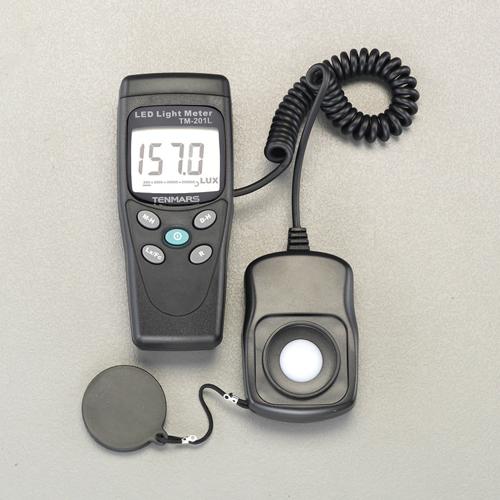

ESCO White LED Illuminance Meter EA712A-10
JAN
4548745594577
ASIN
B006Y4A5Q0
Maker
Model No.
EA712A-10
Color
Size
Main unit: 55 (W) × 38 (D) × 130 (H) mm, Sensor: 55 (W) × 25 (D) × 80 (H) mm
Description
Measurement Method: Silicon photodiode and color correction filter\
Measurement Range: 200/2,000/20,000/200,000 Lux (20/200/2,000/20,000 Fc)\\ Resolution: 0.1/1/10/100 Lux (0.01/0.1/1/10 Fc)\
Measurement Accuracy: ±3% (standard incandescent bulb at 2856K color temperature), ±8% (other light sources)\
Angular Deviation (COSINE characteristic): ±2% (30°), ±6% (60°), ±25%(90°)\
Sampling rate: 2.5 times/second\
Functions: Hold, Peak hold, Zero adjustment\
Display: 3.5-digit LCD display\
Power supply: 9V battery (006P) × 1\
Dimensions: Main unit: 55(W) × 38(D) × 130(H) mm, Sensor: 55(W) × 25(D) × 80(H) mm\
Cord length: Approx. 1 m\
Weight: 250 g (including battery)\
Accessories: Soft case\
Measures white LEDs and all visible light. \
Features angle deviation correction and zero adjustment for high-precision measurement.\
Equipped with hold function (reading value, maximum value) for easy data management. Brand Name: Esco Measurement Method: Silicon photodiode and color correction filter Measurement Range: 200/2,000/20,000/200,000 Lux (20/200/2,000/20,000 Fc) Resolution: 0.1/1/10/100 Lux (0.01/0.1/1/10 Fc)
Measurement Accuracy: ±3% (standard incandescent bulb at 2856K color temperature), ±8% (other light sources)
Angular Deviation (COSINE characteristic): ±2% (30°), ±6% (60°), ±25%(90°)
Sampling: 2.5 times/second
Functions: Hold, Peak value display, Zero adjustment
Display: 3.5-digit LCD display
Power supply: 9V battery (006P) × 1
4548745594577\ nB006Y4A5Q0
ESCO White LED Illuminance Meter EA712A-10
