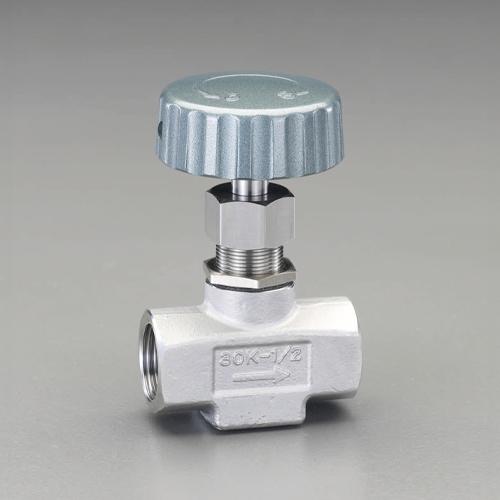

ESCO Rc3/8 Needle Valve (Stainless Steel) EA470CM-3

4548745597707

B006Y4AAMY

EA470CM-3

d2: Rc3/8, H: 64, D1: 40, L: 45, I: 5, D2: 6, D3: 16, h: 17

Material: Body: SUS316, Stem: SUS630, Gland: SUS316, Gland Packing: PTFE, Panel Gasket: Non-asbestos Sheet, Set Screw: SUS304, Front Ferrule: SUS316, Back Ferrule: SUS316, Handle: ZDC Service Fluid: Air, Water, Oil, Gas, Chemicals Maximum Pressure: -20°C/ Ambient: 3.43MPa, Below 100°C: 2.94MPa, Below 150°C: 2.65MPa A panel tap is provided at the bottom of the body for direct mounting to a panel. Mounting screw (PT) for various equipment panel piping: 3/8" Size (mm): d2: Rc3/8, H: 64, D1: 40, L:45, I:5, D2:6, D3:16, h:17 Weight: 0.212kg
Brand Name: Esco
Material: Body: SUS316
Material: Body: SUS316, Stem: SUS630, Gasket: SUS316, Gasket Packing: PTFE, Panel Gasket: Non-asbestos Sheet, Set Screw: SUS304, Front Ferrule: SUS316, Back Ferrule: SUS316, Handle: ZDC
Fluid Used: Air, Water, Oil, Gas, Chemicals
Maximum Pressure: -20℃/ Ambient: 3.43MPa, Below 100°C: 2.94MPa, Below 150°C: 2.65MPa
Panel tap provided at bottom of body for direct panel mounting
For various equipment panel piping
Mounting Screw (PT): 3/8"
Size (mm): d2: Rc3/8, H: 64, D1: 40, L:45, I:5, D2:6, D3:16, h:17
Weight:0.212kg
4548745597707\ nB006Y4AAMY
ESCO Rc3/8 Needle Valve (Stainless Steel) EA470CM-3
