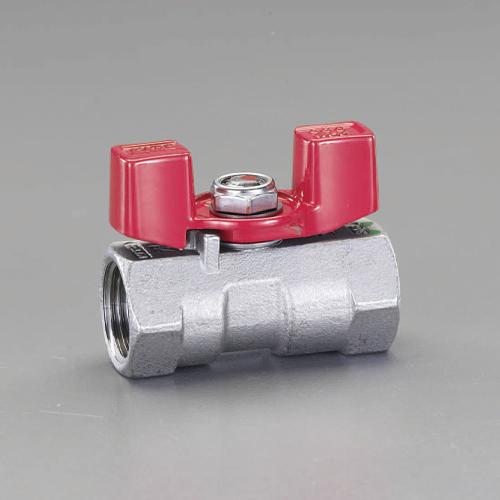

Rc1 Ball Valve (Stainless Steel)
JAN
4548745597790
ASIN
B006Y49NK4
Maker
Model No.
EA470AF-10
Color
Size
Bore diameter: 16, Length: 71, Height: 41, Diameter: 69
Description
Material: Body: Stainless Steel (SCS13A), Stem: SUS304, Ball: SUS304, Ball Seat: Glass-Filled PTFE, Packing: Glass-Filled PTFE, Handle: ZDC2 Type: Floating Reduced Bore Type Connection Type: Screw-in: JIS B 0203 Maximum Pressure (Water/Oil/Gas): Ambient: 4.12MPa (42kgf/cm²) Operating Temperature Range: -30℃/230℃ Thread Size (PT): 1" Dimensions (mm): Bore Diameter: 16, L: 71, H: 41, D: 69 Weight: 0.402kg
Brand Name: Esco
Material: Body: Stainless Steel (SCS13A)
Material: Body: Stainless Steel (SCS13A), Stem: SUS304, Ball: SUS304, Ball Seat: Glass-Filled PTFE, Packing: Glass-Filled PTFE, Handle: ZDC2
Type: Floating
Reduced Bore Type
Connection Type: Screw-in: JIS B 0203
Maximum Pressure (Water/Oil/Gas): Ambient: 4.12MPa (42kgf/cm²)
Operating Temperature Range: -30℃/230℃
Thread Size (PT): 1"
Size (mm): Bore Diameter: 16, L: 71, H: 41, D: 69
Weight: 0.402kg
4548745597790
“Rc1” “Ball Valve (Stainless Steel)”
(text created at , 2025-05-10)
Brand Name: Esco
Material: Body: Stainless Steel (SCS13A)
Material: Body: Stainless Steel (SCS13A), Stem: SUS304, Ball: SUS304, Ball Seat: Glass-Filled PTFE, Packing: Glass-Filled PTFE, Handle: ZDC2
Type: Floating
Reduced Bore Type
Connection Type: Screw-in: JIS B 0203
Maximum Pressure (Water/Oil/Gas): Ambient: 4.12MPa (42kgf/cm²)
Operating Temperature Range: -30℃/230℃
Thread Size (PT): 1"
Size (mm): Bore Diameter: 16, L: 71, H: 41, D: 69
Weight: 0.402kg
4548745597790
“Rc1” “Ball Valve (Stainless Steel)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
7,825 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
