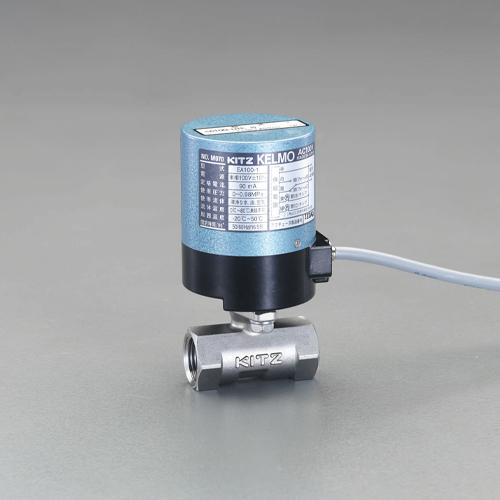

ESCO Rc2 Electric Ball Valve (AC100V/Stainless Steel) EA470BH-20
JAN
4548745598544
ASIN
B006Y4A4PW
Maker
Model No.
EA470BH-20
Color
Size
ESCO Rc2 Electric Ball Valve (AC100V/Stainless Steel) EA470BH-20
Description
Description\
\
Material: Valve body: Stainless steel (SCS14A), Stem: SUS316 (Cr plated), Ball: SUS316, Insert: SUS316, Ball seat: PTFE, O-ring: FKM\
Maximum working pressure: 0.98MPa\
Working fluid: Air, Water, Oil\
Power Supply: AC100V (50/60Hz)\
Rated Current: 100mA\
Maximum Power Consumption: 10W\
Maximum Output Torque: 9.8N·m\
Rated Duty: Continuous\
Insulation Class: E Class\
Micro Switch Contact Rating: AC125V 3A (resistive load), AC250V 3A (resistive load)\
Position limit switch: 1 NO, 1 NC (energized)\
Withstand voltage: AC1500V (1 minute) or AC1800V (1 second)\
Operating environment: Suitable for outdoor use (avoid direct sunlight) Ambient temperature: -20°C/+50°C\
Mounting position: Vertical/horizontal\
Power cord/connection method: Vinyl cab tire cord, 5-core, length 700mm, 0.5mm2\
Lubrication method: Greer\
Overload protection device: Impedance protection\
Coating: Housing: Black, Cover: Light Blue Hammer Tone\
Function: 90° Forward/Reverse Rotation\
Waterproof Structure: Equivalent to IEC529 IP56\
Screw Size (PT): 2"\
Opening/Closing Time: 50Hz: Approx. 15 seconds, 60Hz: Approx. 13 seconds\\ Size (mm): d (bore diameter): 32, d2: Rc2, H: 141.5, H1: 58.5, H2: 53.5, L: 100, L1: 51, S1: 65, H3: 82, E1: 54.5, E2: 30, W1: 59, W2: 31.5, S: 5.5\
Weight: 2.187 kg\
Body made of stainless steel with integral molding
Brand Name: Esco
Material: Valve Body: Stainless Steel (SCS14A)
Material: Valve Body: Stainless Steel (SCS14A), Stem: SUS316 (Cr plated), Ball: SUS316, Insert: SUS316, Ball Seat: PTFE, O-ring: FKM
Maximum Working Pressure: 0.98MPa
Working Fluid: Air, Water, Oil
Power Supply: AC100V (50/60Hz)\ Rated Current: 100mA
Maximum Power Consumption: 10W
Maximum Output Torque: 9.8N·m
Rated Duty: Continuous
Insulation Class: E
Micro Switch Contact Rating: AC125V 3A (resistive load), AC250V 3A (resistive load)
4548745598544\ nB006Y4A4PW
ESCO Rc2 Electric Ball Valve (AC100V/Stainless Steel) EA470BH-20
(text created at , 2025-11-13)
\
Material: Valve body: Stainless steel (SCS14A), Stem: SUS316 (Cr plated), Ball: SUS316, Insert: SUS316, Ball seat: PTFE, O-ring: FKM\
Maximum working pressure: 0.98MPa\
Working fluid: Air, Water, Oil\
Power Supply: AC100V (50/60Hz)\
Rated Current: 100mA\
Maximum Power Consumption: 10W\
Maximum Output Torque: 9.8N·m\
Rated Duty: Continuous\
Insulation Class: E Class\
Micro Switch Contact Rating: AC125V 3A (resistive load), AC250V 3A (resistive load)\
Position limit switch: 1 NO, 1 NC (energized)\
Withstand voltage: AC1500V (1 minute) or AC1800V (1 second)\
Operating environment: Suitable for outdoor use (avoid direct sunlight) Ambient temperature: -20°C/+50°C\
Mounting position: Vertical/horizontal\
Power cord/connection method: Vinyl cab tire cord, 5-core, length 700mm, 0.5mm2\
Lubrication method: Greer\
Overload protection device: Impedance protection\
Coating: Housing: Black, Cover: Light Blue Hammer Tone\
Function: 90° Forward/Reverse Rotation\
Waterproof Structure: Equivalent to IEC529 IP56\
Screw Size (PT): 2"\
Opening/Closing Time: 50Hz: Approx. 15 seconds, 60Hz: Approx. 13 seconds\\ Size (mm): d (bore diameter): 32, d2: Rc2, H: 141.5, H1: 58.5, H2: 53.5, L: 100, L1: 51, S1: 65, H3: 82, E1: 54.5, E2: 30, W1: 59, W2: 31.5, S: 5.5\
Weight: 2.187 kg\
Body made of stainless steel with integral molding
Brand Name: Esco
Material: Valve Body: Stainless Steel (SCS14A)
Material: Valve Body: Stainless Steel (SCS14A), Stem: SUS316 (Cr plated), Ball: SUS316, Insert: SUS316, Ball Seat: PTFE, O-ring: FKM
Maximum Working Pressure: 0.98MPa
Working Fluid: Air, Water, Oil
Power Supply: AC100V (50/60Hz)\ Rated Current: 100mA
Maximum Power Consumption: 10W
Maximum Output Torque: 9.8N·m
Rated Duty: Continuous
Insulation Class: E
Micro Switch Contact Rating: AC125V 3A (resistive load), AC250V 3A (resistive load)
4548745598544\ nB006Y4A4PW
ESCO Rc2 Electric Ball Valve (AC100V/Stainless Steel) EA470BH-20
(text created at , 2025-11-13)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
92,060 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
