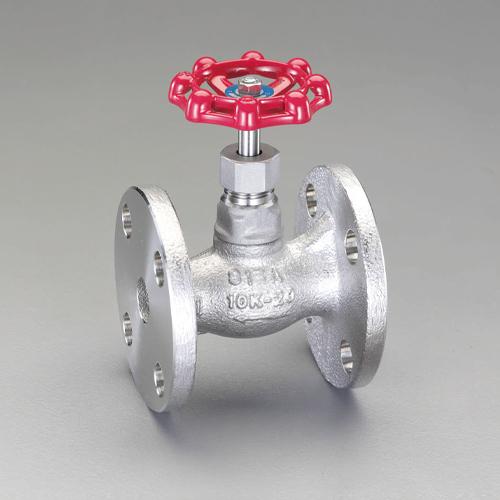

ESCO 1-1/4 Globe Valve (Flanged Type) EA470CD-12
JAN
4548745598599
ASIN
B006Y4A64Q
Maker
Model No.
EA470CD-12
Color
Size
L: 120mm, H (fully extended): 142mm, D: 90mm
Description
Brand Name: Esco
Material: Body: SCS13A, Bonnet: SCS13A, Stem: SUS304 + Hard Chrome Plating, Disc: SUS304, Packing: Expanded Graphite + PTFE Braided, Handle: ADC12
Maximum Pressure: Clean Water (120°C or below): 1.4MPa, Steam/Air/Gas/Oil (150°C or below): 1.1MPa, Steam/Air/Gas/Oil (180°C or below): 1.0MPa
Connection: Flange Connection (JIS B2220 10K)
Class: 10K
Nominal Size: 32 (1-1/4")
Dimensions: L: 120mm, H (Fully Open): 142mm, D: 90mm
Weight: 3.68kg
4548745598599
B006Y4A64Q
ESCO 1-1/4 Globe Valve (Flange Type) EA470CD-12
(text created at , 2025-11-12)
Material: Body: SCS13A, Bonnet: SCS13A, Stem: SUS304 + Hard Chrome Plating, Disc: SUS304, Packing: Expanded Graphite + PTFE Braided, Handle: ADC12
Maximum Pressure: Clean Water (120°C or below): 1.4MPa, Steam/Air/Gas/Oil (150°C or below): 1.1MPa, Steam/Air/Gas/Oil (180°C or below): 1.0MPa
Connection: Flange Connection (JIS B2220 10K)
Class: 10K
Nominal Size: 32 (1-1/4")
Dimensions: L: 120mm, H (Fully Open): 142mm, D: 90mm
Weight: 3.68kg
4548745598599
B006Y4A64Q
ESCO 1-1/4 Globe Valve (Flange Type) EA470CD-12
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
36,025 JPY (Including Tax)
