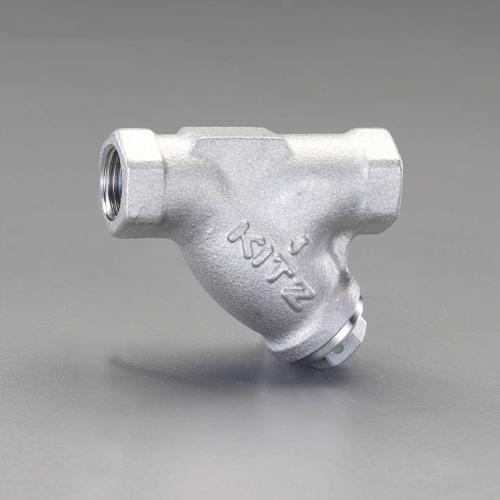

ESCO 1-1/2 Strainer EA465AK-14
JAN
4548745599688
ASIN
B006Y4B1T0
Maker
Model No.
EA465AK-14
Color
Size
L: 150, H: 100, H1: 140, D: 46, l: 75
Description
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304 Maximum Pressure: Clean water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (≤150°C): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (≤180°C): 1.0MPa Connection Type: Screw-in: JIS B 0203 Nominal Size: 40 (1-1/2") Dimensions (mm): L: 150, H: 100, H1: 140, D: 46, l: 75 Weight: 2.1 kg
Brand Name: Esco
Material: Body: SCS13A Cap: SCS13A/SUS304 Gasket: PTFE with filler Screen: SUS304 Plug: SUS304
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304
Maximum Pressure: Clean Water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa
Connection Type: Screw-in: JIS B0203
Nominal Size: 40 (1-1/2")
Dimensions (mm): L: 150, H: 100, H1: 140, D: 46, l: 75
Weight: 2.1 kg
4548745599688
B006Y4B1T0
ESCO 1-1/2 Strainer EA465AK-14
(text created at , 2025-11-12)
Brand Name: Esco
Material: Body: SCS13A Cap: SCS13A/SUS304 Gasket: PTFE with filler Screen: SUS304 Plug: SUS304
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304
Maximum Pressure: Clean Water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa
Connection Type: Screw-in: JIS B0203
Nominal Size: 40 (1-1/2")
Dimensions (mm): L: 150, H: 100, H1: 140, D: 46, l: 75
Weight: 2.1 kg
4548745599688
B006Y4B1T0
ESCO 1-1/2 Strainer EA465AK-14
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
49,823 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
