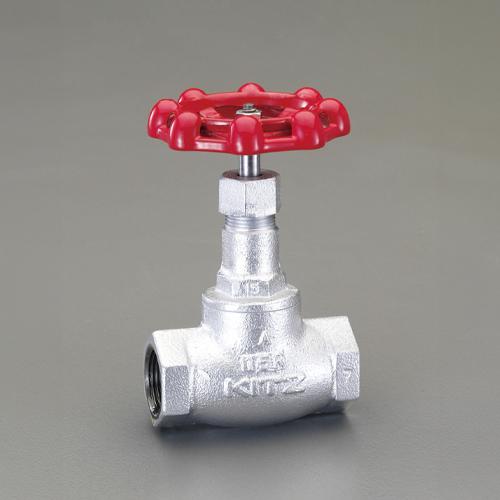

ESCO Rc1/2 Globe Valve (Ductile Iron) EA470CE-4
JAN
4548745608878
ASIN
B006Y4A9KC
Maker
Model No.
EA470CE-4
Color
Size
L: 65mm, H (fully extended): 122mm, D: 70mm
Description
ESCO Globe Valve - Ductile Iron - EA470CE
Nominal Diameter: 15 (1/2) Material: Body: Ductile Iron (FCD-S), Bonnet: Ductile Iron (FCD-S), Stem: SUS420J2, Disc: SUS403, Packing: Non-asbestos, Gasket: Stainless steel foil-reinforced expanded graphite sheet, Handle: FCD450-10 Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)
Oil refers to lubricating oil, hydraulic oil, etc. Class: 10K
Thread size (PT): 1/2"
Connection type: Screw-in: JIS B 0203
Dimensions: L: 65mm, H (fully open): 122mm, D: 70mm
Weight: 0.525kg
Brand name: Esco
Material: Body: Ductile Iron (FCD-S)
Nominal Diameter: 15 (1/2)
Material: Body: Ductile Iron (FCD-S), Bonnet: Ductile Iron (FCD-S), Stem: SUS420J2, Disc: SUS403, Packing: Non-asbestos, Gasket: Stainless steel foil-reinforced expanded graphite sheet, Handle: FCD450-10
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)
Oil refers to lubricating oil, hydraulic oil, etc.
Class: 10K
Thread Size (PT): 1/2"
Connection Type: Screw-in: JIS B 0203
Dimensions: L: 65mm, H (Fully Open): 122mm, D: 70mm
4548745608878
ESCO Rc1/2 Globe Valve (Ductile Iron) EA470CE-4
(text created at , 2025-05-12)
Nominal Diameter: 15 (1/2) Material: Body: Ductile Iron (FCD-S), Bonnet: Ductile Iron (FCD-S), Stem: SUS420J2, Disc: SUS403, Packing: Non-asbestos, Gasket: Stainless steel foil-reinforced expanded graphite sheet, Handle: FCD450-10 Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)
Oil refers to lubricating oil, hydraulic oil, etc. Class: 10K
Thread size (PT): 1/2"
Connection type: Screw-in: JIS B 0203
Dimensions: L: 65mm, H (fully open): 122mm, D: 70mm
Weight: 0.525kg
Brand name: Esco
Material: Body: Ductile Iron (FCD-S)
Nominal Diameter: 15 (1/2)
Material: Body: Ductile Iron (FCD-S), Bonnet: Ductile Iron (FCD-S), Stem: SUS420J2, Disc: SUS403, Packing: Non-asbestos, Gasket: Stainless steel foil-reinforced expanded graphite sheet, Handle: FCD450-10
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)
Oil refers to lubricating oil, hydraulic oil, etc.
Class: 10K
Thread Size (PT): 1/2"
Connection Type: Screw-in: JIS B 0203
Dimensions: L: 65mm, H (Fully Open): 122mm, D: 70mm
4548745608878
ESCO Rc1/2 Globe Valve (Ductile Iron) EA470CE-4
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,900 JPY (Including Tax)
