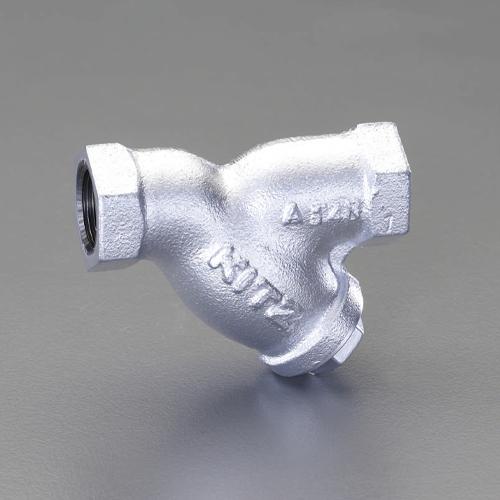

ESCO 1 Strainer (Ductile Iron) EA465AM-10
JAN
4548745644715
ASIN
B006Y4B5SC
Maker
Model No.
EA465AM-10
Color
Size
A: φ1.4mm, P: 2.4mm
Description
Description
Material: Body: Ductile Iron (FCD-S), Cap: C3771BE, Gasket: Non-asbestos sheet gasket, Screen: SUS304
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm2), Static water (120°C or below): 1.37MPa (14kgf/cm2)
Connection Type: Screw-in: JIS B 0203
Thread Size (PT): 1"
Dimensions (mm): L: 115, H: 75, H1: 110
Screen Hole Size: A: Diameter 1.4mm, B: 2.4mm
Weight: 0.848kg
This product uses a copper cap and is therefore not suitable for fluids such as ammonia or amine-based fluids.
Brand Name: Esco
▪️Maximum Allowable Pressure: Static water (120°C or below): 1.4MPa Pulsating water, steam, gas, air, oil (220°C or below): 1.0MPa▪️Material: Body: Ductile Iron (FCD-S) Cap: C3771BE Gasket: Non-asbestos sheet Screen: SUS304▪️Connection Type: Screw-in: JIS B0203
▪️ Thread size (PT): 1"
▪️ Dimensions (mm): L: 115, H: 75, H1: 110
▪️ Screen type: 60° staggered punched stainless steel plate
▪️ Screen hole size: A: φ1.4mm, P: 2.4mm
▪️ Weight: 0.848kg
4548745644715
ESCO 1 Strainer (Ductile Iron) EA465AM-10
(text created at , 2025-05-10)
Material: Body: Ductile Iron (FCD-S), Cap: C3771BE, Gasket: Non-asbestos sheet gasket, Screen: SUS304
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm2), Static water (120°C or below): 1.37MPa (14kgf/cm2)
Connection Type: Screw-in: JIS B 0203
Thread Size (PT): 1"
Dimensions (mm): L: 115, H: 75, H1: 110
Screen Hole Size: A: Diameter 1.4mm, B: 2.4mm
Weight: 0.848kg
This product uses a copper cap and is therefore not suitable for fluids such as ammonia or amine-based fluids.
Brand Name: Esco
▪️Maximum Allowable Pressure: Static water (120°C or below): 1.4MPa Pulsating water, steam, gas, air, oil (220°C or below): 1.0MPa▪️Material: Body: Ductile Iron (FCD-S) Cap: C3771BE Gasket: Non-asbestos sheet Screen: SUS304▪️Connection Type: Screw-in: JIS B0203
▪️ Thread size (PT): 1"
▪️ Dimensions (mm): L: 115, H: 75, H1: 110
▪️ Screen type: 60° staggered punched stainless steel plate
▪️ Screen hole size: A: φ1.4mm, P: 2.4mm
▪️ Weight: 0.848kg
4548745644715
ESCO 1 Strainer (Ductile Iron) EA465AM-10
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
230x57x250 mm
Package
Weight (Approx.):
Weight (Approx.):
960 g
6,753 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
