M5x35 [High Strength/High Tensile] Hex Socket Head Cap Screw

4548745653885

B00810R7S4

EA949DJ-535

Minimum: 2.15mm

Note: This image is representative. Actual parts or similar items may be included. Please verify the model number and product name.

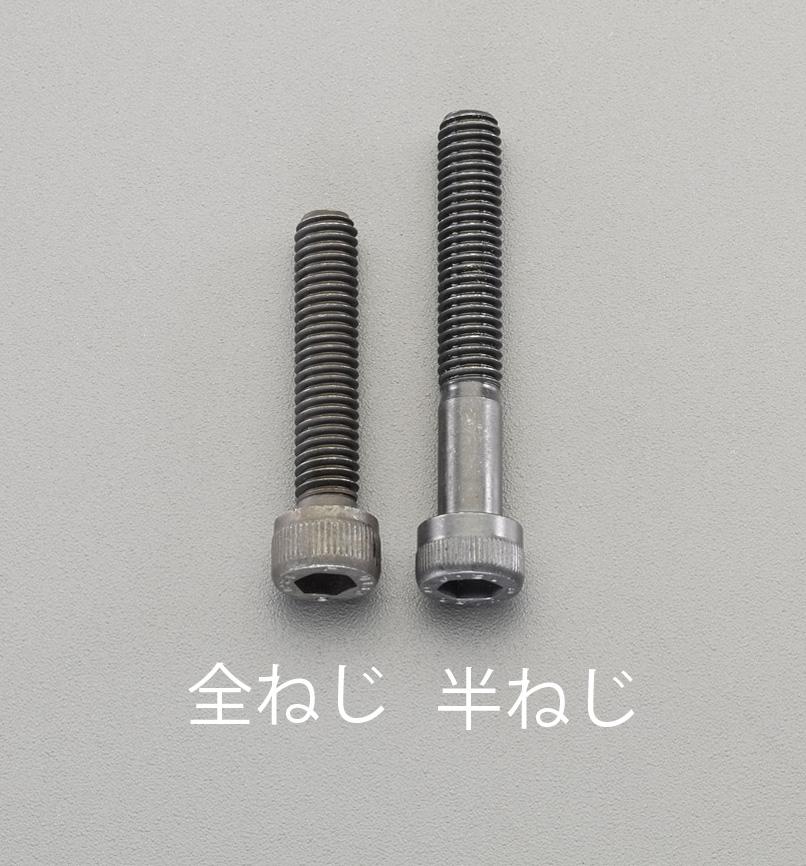

▪️ Partially threaded
▪️ Coarse thread
▪️ Manufactured by Umbraco
▪️ Material: Alloy steel
▪️ Thread standard: ISO 261, 262, JIS B 0205, ANSI B1.13M
▪️ Product grade: 12.9 ISO 898/1, JIS G 1051
▪️ Hardness: HRC 38-43
▪️ Tensile strength: 1300 N/mm²
▪️ Yield Strength…1170 N/mm²
▪️ Shear Strength…780 N/mm²
▪️ Elongation…9%
▪️ Surface Treatment…Black Oxide Coating
▪️ Operating Temperature Range…-50°C to +300°C
▪️ Size…M5×35
▪️ Pitch…0.8 mm
▪️ Head Diameter (A)… Max: 8.5mm, Min: 8.28mm▪️Shank Diameter (D)…Max: 5mm, Min: 4.82mm▪️Head Height (H)…Max: 5mm, Min: 4.82mm▪️Socket Width (J)…Min: 4mm▪️Size (G)…Min: 2.15mm▪️Socket Depth (T)…Min: 2.5mm▪️ Fillet depth (F)…Max: 5.7mm▪️Effective cross-sectional area…14.2mm2▪️Breaking load…18.5kN▪️Yield load…16.6kN▪️Single-shear load on shank…15.3kN▪️Quantity per pack…2 pcs

Brand Name: Esco
Material: Alloy Steel
