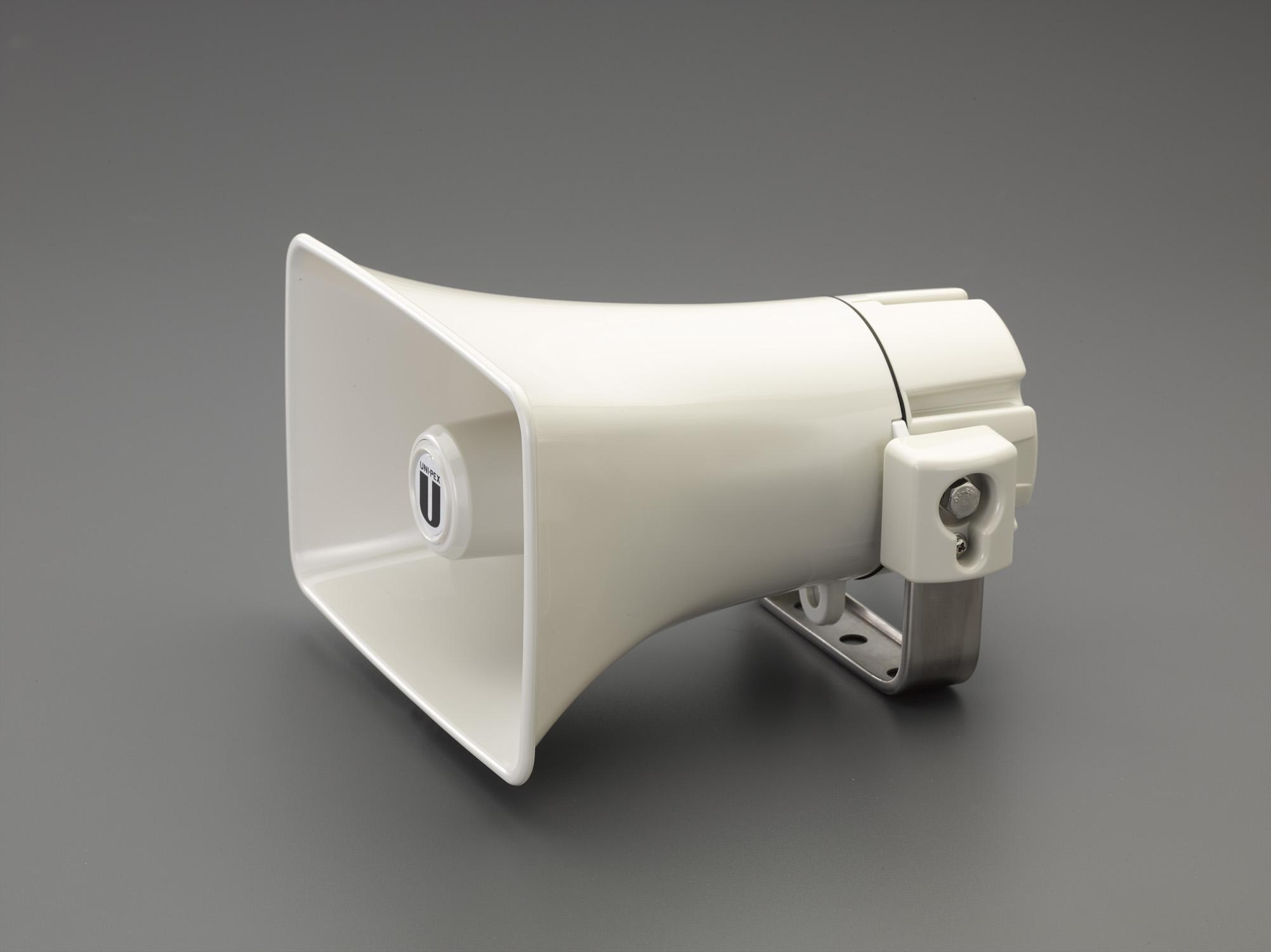

ESCO 10W Speaker EA763CS-1A
JAN
4548745697742
ASIN
B06XYKQLX2
Maker
Model No.
EA763CS-1A
Color
Size
152 x 232 x 239 (L) mm
Description
ESCO-ESCO-10W Speaker-EA763CS-1A
Material: ASA resin: Horn mouth, reflector, cover, bracket cover SUS304: Bracket, Sound pressure level: 108dB(1W/1m), Input Polarity: 2-core captyre cord VCTF 0.5×2C (+: black, COM: white), Complies with JIS C 5504 Horn Speaker
Manufacturer: UNI-PEX, Frequency Response: 320Hz~7.5kHz (within 20dB deviation), Mounting Bracket: U-shaped Bracket S-type
Model Number: CK-231/10, Directivity Angle: Horizontal 60°, Vertical 85° (2kHz - 6dB), Dust/Water Resistance: IP65
Rated Input: 10W, Size: 152x232x239(L)mm, Operating Temperature Range: -20°C to 55°C (No condensation)
Rated Impedance: 8Ω, Weight: 1.4kg, Vehicle-Compatible
Brand Name: Esco
Material: ASA resin: Horn mouth, reflector, cover, bracket cover SUS304: Bracket, Sound Pressure Level: 108dB (1W/1m), Input Polarity: 2-core captyre cord VCTF0.5×2C (+: black, COM: white), Complies with JIS C 5504 Horn Speaker
Manufacturer: UNI-PEX, Frequency Response: 320Hz~7.5kHz (within 20dB deviation), Mounting Bracket: U-shaped Bracket S-type
Model Number: CK-231/10, Directivity Angle: Horizontal 60°, Vertical 85° (2kHz - 6dB), Dust/Water Resistance: IP65
Rated Input: 10W, Size: 152x232x239(L)mm, Operating Temperature Range: -20°C to 55°C (No condensation)
Rated Impedance: 8Ω, Weight: 1.4kg, Vehicle-Compatible
4548745697742
ESCO 10W Speaker EA763CS-1A
(text created at , 2025-08-11)
Material: ASA resin: Horn mouth, reflector, cover, bracket cover SUS304: Bracket, Sound pressure level: 108dB(1W/1m), Input Polarity: 2-core captyre cord VCTF 0.5×2C (+: black, COM: white), Complies with JIS C 5504 Horn Speaker
Manufacturer: UNI-PEX, Frequency Response: 320Hz~7.5kHz (within 20dB deviation), Mounting Bracket: U-shaped Bracket S-type
Model Number: CK-231/10, Directivity Angle: Horizontal 60°, Vertical 85° (2kHz - 6dB), Dust/Water Resistance: IP65
Rated Input: 10W, Size: 152x232x239(L)mm, Operating Temperature Range: -20°C to 55°C (No condensation)
Rated Impedance: 8Ω, Weight: 1.4kg, Vehicle-Compatible
Brand Name: Esco
Material: ASA resin: Horn mouth, reflector, cover, bracket cover SUS304: Bracket, Sound Pressure Level: 108dB (1W/1m), Input Polarity: 2-core captyre cord VCTF0.5×2C (+: black, COM: white), Complies with JIS C 5504 Horn Speaker
Manufacturer: UNI-PEX, Frequency Response: 320Hz~7.5kHz (within 20dB deviation), Mounting Bracket: U-shaped Bracket S-type
Model Number: CK-231/10, Directivity Angle: Horizontal 60°, Vertical 85° (2kHz - 6dB), Dust/Water Resistance: IP65
Rated Input: 10W, Size: 152x232x239(L)mm, Operating Temperature Range: -20°C to 55°C (No condensation)
Rated Impedance: 8Ω, Weight: 1.4kg, Vehicle-Compatible
4548745697742
ESCO 10W Speaker EA763CS-1A
(text created at , 2025-08-11)
Package
Size (Approx.):
Size (Approx.):
315x235x315 mm
Package
Weight (Approx.):
Weight (Approx.):
1900 g
12,796 JPY (Including Tax)
