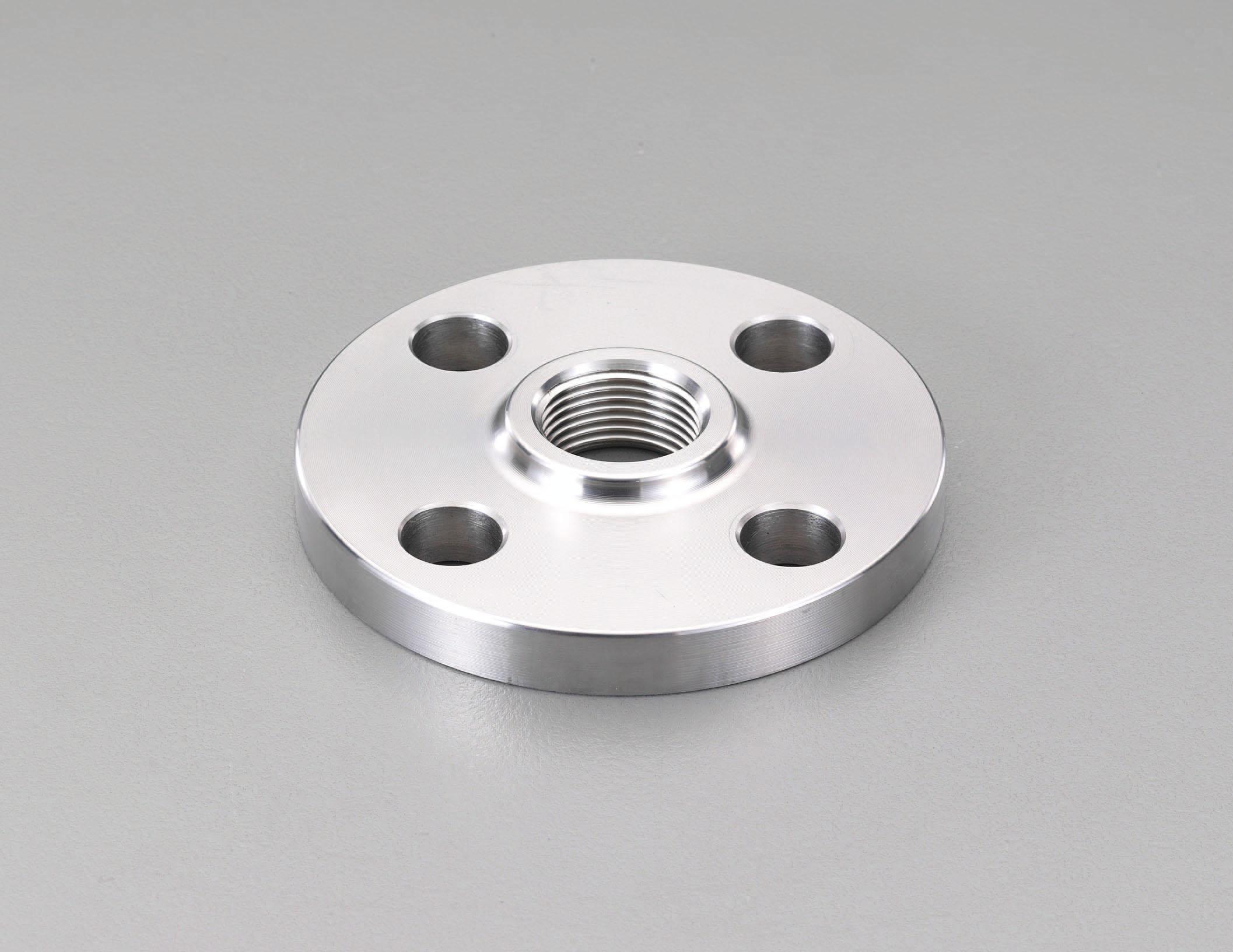

Rc3/4 Screw-in Flange (Stainless Steel)
JAN
4548745712797
ASIN
B00AXUKRNM
Maker
Model No.
EA469AK-6A
Color
Size
JIS B 2220
Description
Material: SUSF304 JIS10K Maximum Pressure: 1.35/2.0MPa (-20/220℃/per JIS B2308) Operating Temperature Range: -20/220℃ Nominal Diameter: 20A Thread Size Rc(PT): 3/4" Outer Diameter: 100mm Thickness: 14mm Overall Height: 20mm Hub Diameter: 33mm Center Circle Diameter: 75mm Number of Bolt Holes: 4 Bolt Hole Diameter: 15mm Flange Shape/Dimensions: JIS B 2220 Thread: JIS B 0203 Color: Silver
Brand Name: Esco
Material: SUSF304
JIS10K
Maximum Pressure: 1.35/2.0MPa (-20/220℃/per JISB2308)
Operating Temperature Range: -20/220℃
Nominal Diameter: 20A
Thread Size Rc(PT): 3/4"
Outer Diameter: 100mm
Thickness: 14mm
Overall Height: 20mm
4548745712797
“Rc3/4” “Screw-in Flange (Stainless Steel)”
(text created at , 2025-05-11)
Brand Name: Esco
Material: SUSF304
JIS10K
Maximum Pressure: 1.35/2.0MPa (-20/220℃/per JISB2308)
Operating Temperature Range: -20/220℃
Nominal Diameter: 20A
Thread Size Rc(PT): 3/4"
Outer Diameter: 100mm
Thickness: 14mm
Overall Height: 20mm
4548745712797
“Rc3/4” “Screw-in Flange (Stainless Steel)”
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,238 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
