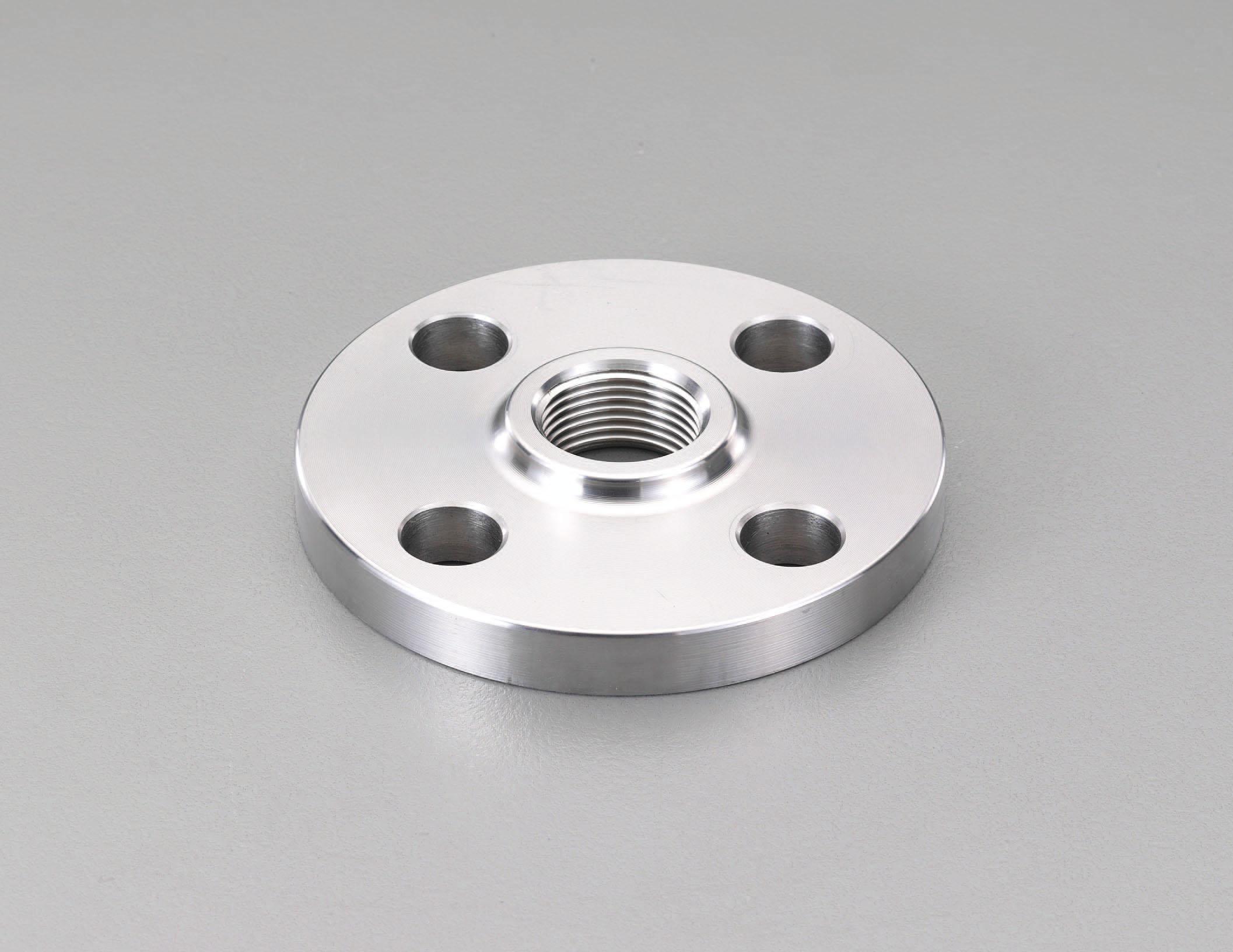

Rc1 Screw-in flange (stainless steel)
JAN
4548745712803
ASIN
B00AXUKRWS
Maker
Model No.
EA469AK-10A
Color
Size
JIS B 2220
Description
ESCO Screw-on Flange - Stainless Steel
Material: SUS F304
JIS 10K
Maximum Pressure: 1.35/2.0 MPa (-20/220°C according to JIS B 2308)
Operating Temperature Range: -20/220°C
Nominal Diameter: 25A
Thread Size Rc (PT): 1"\ Outer Diameter: 125mm
Thickness: 14mm
Overall Height: 20mm
Hub Diameter: 41mm
Center Circle Diameter: 90mm
Number of Bolt Holes: 4
Bolt Hole Diameter: 19mm
Flange Shape & Dimensions: JIS B 2220
Thread: JIS B 0203
Color: Silver
Brand Name: Esco
Maximum Pressure: 1.35/2.0 MPa (-20/220°C / per JIS B 2308)
Screw Size Rc(PT): 1“
Outer Diameter: 125mm
4548745712803
‘Rc1’ ”Screw-in Flange (Stainless Steel)"
(text created at , 2025-05-09)
Material: SUS F304
JIS 10K
Maximum Pressure: 1.35/2.0 MPa (-20/220°C according to JIS B 2308)
Operating Temperature Range: -20/220°C
Nominal Diameter: 25A
Thread Size Rc (PT): 1"\ Outer Diameter: 125mm
Thickness: 14mm
Overall Height: 20mm
Hub Diameter: 41mm
Center Circle Diameter: 90mm
Number of Bolt Holes: 4
Bolt Hole Diameter: 19mm
Flange Shape & Dimensions: JIS B 2220
Thread: JIS B 0203
Color: Silver
Brand Name: Esco
Maximum Pressure: 1.35/2.0 MPa (-20/220°C / per JIS B 2308)
Screw Size Rc(PT): 1“
Outer Diameter: 125mm
4548745712803
‘Rc1’ ”Screw-in Flange (Stainless Steel)"
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
6,078 JPY (Including Tax)
Stock :
3
Scheduled Shipping:
2026-07-14
