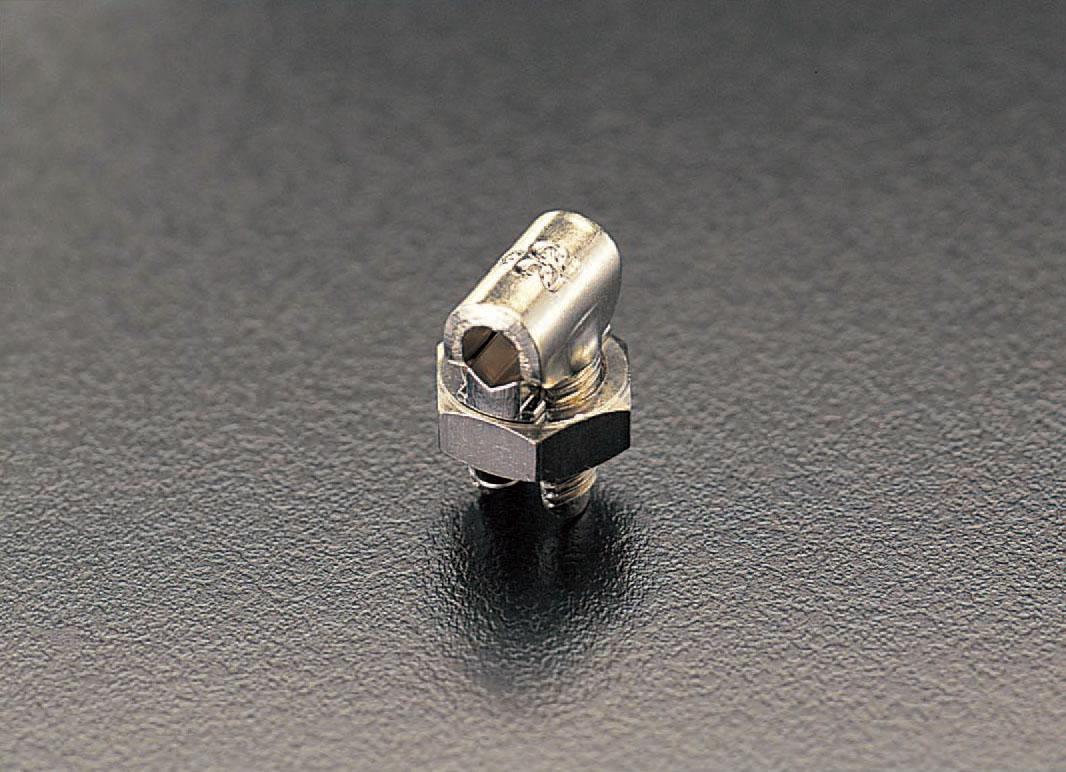

φ3.2mm Screw-Type Connector (for wire branching)
JAN
4548745724189
ASIN
B00AXUL1OG
Maker
Model No.
EA539FC-1
Color
Size
Description
ESCO-ESCO-EA539FC-1-3-2mm Bolt-Type Connector-Wire Branch
Suitable Wire (Main Line): Diameter 3.2mm
Suitable Wire (Branch Line): Diameter 2/3.2mm
Standard Tightening Torque: 7.8/9.8 N·m (80/100 kgf·cm)
Overall Length: 20mm
Material: Copper (Nickel-Plated Finish)
Weight: 13g
Enables quick and reliable connections, improving efficiency.
Primarily used for bolted branch connections between copper wires in tension-free sections of overhead wiring lines.
Brand Name: Esco
Suitable wire (main line): Diameter 3.2mm
Suitable wire (branch line): Diameter 2/3.2mm
Standard tightening torque: 7.8/9.8 N·m (80/100 kgf·cm)
Overall length: 20mm
Material: Copper (nickel-plated finish)
Weight: 13g
Enables quick and reliable connections, improving efficiency.
Primarily used for bolted branch connections between copper wires in tension-free sections of overhead wiring systems.
4548745724189
φ3.2mm Screw-Type Connector (for Wire Branching)
(text created at , 2025-05-09)
Suitable Wire (Main Line): Diameter 3.2mm
Suitable Wire (Branch Line): Diameter 2/3.2mm
Standard Tightening Torque: 7.8/9.8 N·m (80/100 kgf·cm)
Overall Length: 20mm
Material: Copper (Nickel-Plated Finish)
Weight: 13g
Enables quick and reliable connections, improving efficiency.
Primarily used for bolted branch connections between copper wires in tension-free sections of overhead wiring lines.
Brand Name: Esco
Suitable wire (main line): Diameter 3.2mm
Suitable wire (branch line): Diameter 2/3.2mm
Standard tightening torque: 7.8/9.8 N·m (80/100 kgf·cm)
Overall length: 20mm
Material: Copper (nickel-plated finish)
Weight: 13g
Enables quick and reliable connections, improving efficiency.
Primarily used for bolted branch connections between copper wires in tension-free sections of overhead wiring systems.
4548745724189
φ3.2mm Screw-Type Connector (for Wire Branching)
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
35x16x57 mm
Package
Weight (Approx.):
Weight (Approx.):
20 g
771 JPY (Including Tax)
Stock :
275
Scheduled Shipping:
2026-07-13
Quantity :
