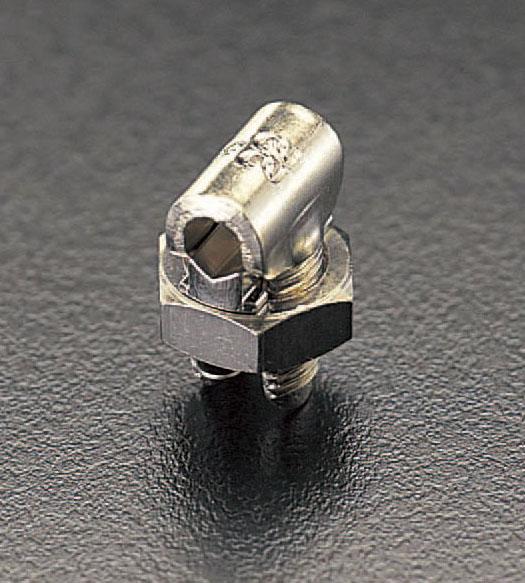

22mm² Screw-type Connector (for wire branching)
JAN
4548745724202
ASIN
B00AXUL22M
Maker
Model No.
EA539FC-3
Color
Size
Description
ESCO-ESCO-EA539FC-3-22mm² Bolt-Type Connector-Wire Branch Use
Suitable Wire (Main Line): 22mm²
Suitable Wire (Branch Line): Diameter 2/22mm²
Standard Tightening Torque: 14.7/16.7 N·m (150/170 kgf·cm)
Overall Length: 29mm
Material: Copper (Nickel-Plated Finish)
Weight: 36g
Enables quick and reliable connections, improving efficiency.
Primarily used for bolted branch connections between copper wires in tension-free sections of overhead wiring lines.
Brand Name: Esco
Suitable wire (main line): 22mm²
Suitable wire (branch line): Diameter 2/22mm²
Standard tightening torque: 14.7/16.7 N·m (150/170 kgf·cm)
Overall length: 29mm
Material: Copper (nickel-plated finish)
Weight: 36g
Enables quick and reliable connections, improving efficiency.
Primarily used for bolted branch connections between copper wires in tension-free sections of overhead wiring systems.
4548745724202
22mm² Screw-Type Connector (for Wire Branching)
(text created at , 2025-05-09)
Suitable Wire (Main Line): 22mm²
Suitable Wire (Branch Line): Diameter 2/22mm²
Standard Tightening Torque: 14.7/16.7 N·m (150/170 kgf·cm)
Overall Length: 29mm
Material: Copper (Nickel-Plated Finish)
Weight: 36g
Enables quick and reliable connections, improving efficiency.
Primarily used for bolted branch connections between copper wires in tension-free sections of overhead wiring lines.
Brand Name: Esco
Suitable wire (main line): 22mm²
Suitable wire (branch line): Diameter 2/22mm²
Standard tightening torque: 14.7/16.7 N·m (150/170 kgf·cm)
Overall length: 29mm
Material: Copper (nickel-plated finish)
Weight: 36g
Enables quick and reliable connections, improving efficiency.
Primarily used for bolted branch connections between copper wires in tension-free sections of overhead wiring systems.
4548745724202
22mm² Screw-Type Connector (for Wire Branching)
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
50x25x110 mm
Package
Weight (Approx.):
Weight (Approx.):
40 g
1,731 JPY (Including Tax)
Stock :
91
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
