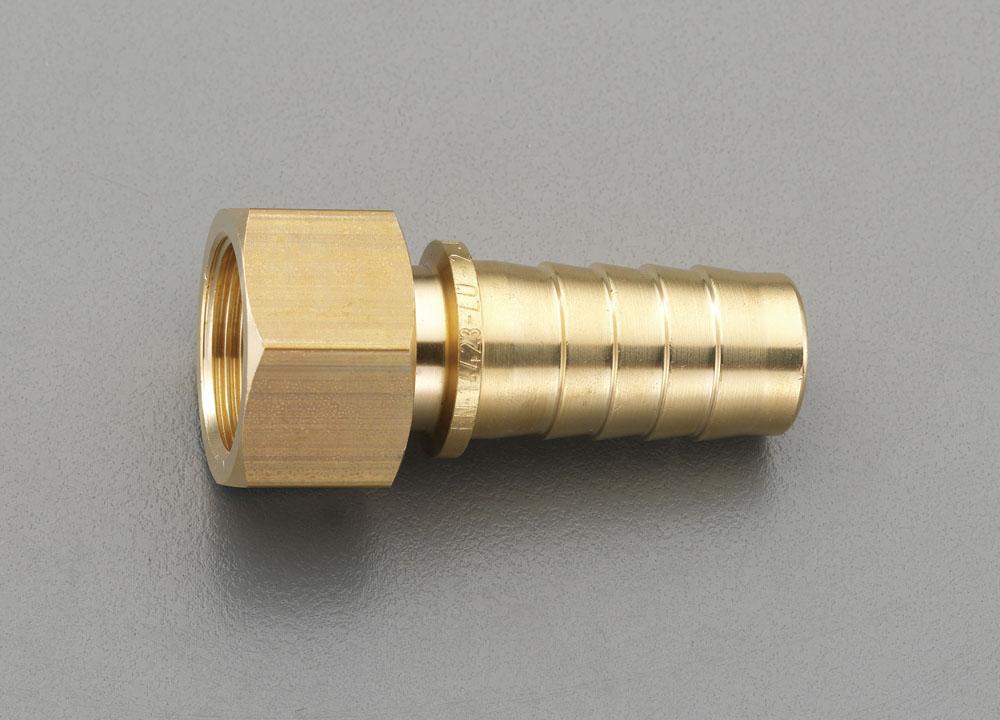

G1/2 x 13mm Female Thread Stem (for Steam / Brass)
JAN
4548745727708
ASIN
B00AXUJZ0S
Maker
Model No.
EA141BR-4
Color
Size
G (PF) 1/2"
Description
Material: Brass Operating Temperature: Steam: 210°C or below, Water: 120°C or below Maximum Operating Pressure: 1.8MPa (18kgf/cm²) Thread Size: G(PF) 1/2" Compatible Hose Inner Diameter: 13mm Overall Height: 82.5mm Hexagon Diagonal: 27mm Weight: Approx. 130g Compatible Clamp: EA141BT-4
Brand Name: Esco
Material: Brass
Operating Temperature: Steam: 210°C or below, Water: 120°C or below
Maximum Operating Pressure: 1.8MPa (18kgf/cm²)
Thread Size: G(PF) 1/2"
Compatible Hose Inner Diameter: 13mm
Overall Height: 82.5mm
Hexagon Diagonal: 27mm
Weight: Approx. 130g
Compatible Clamp: EA141BT-4
4548745727708
“G1/2” x 13mm Female Thread Stem (Steam Use / Brass)
(text created at , 2025-05-11)
Brand Name: Esco
Material: Brass
Operating Temperature: Steam: 210°C or below, Water: 120°C or below
Maximum Operating Pressure: 1.8MPa (18kgf/cm²)
Thread Size: G(PF) 1/2"
Compatible Hose Inner Diameter: 13mm
Overall Height: 82.5mm
Hexagon Diagonal: 27mm
Weight: Approx. 130g
Compatible Clamp: EA141BT-4
4548745727708
“G1/2” x 13mm Female Thread Stem (Steam Use / Brass)
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
5,107 JPY (Including Tax)
Stock :
12
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
