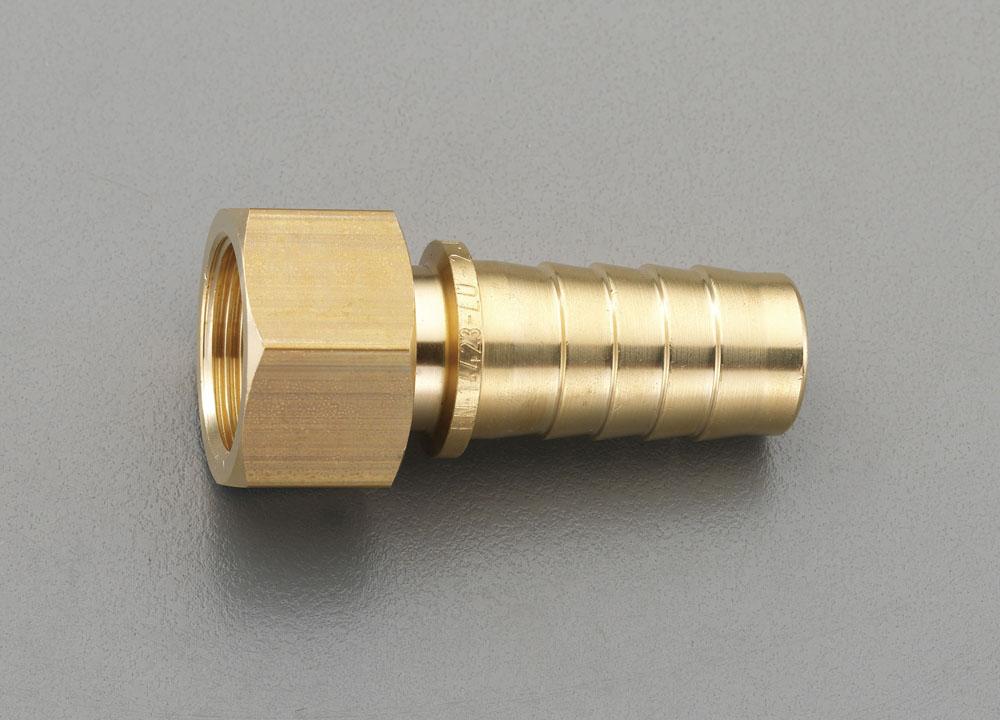

G1 x 25mm Female Thread Stem (for Steam / Brass)
JAN
4548745727753
ASIN
B00AXUJZMG
Maker
Model No.
EA141BR-8
Color
Size
G (PF) 1"
Description
Material: Brass Operating Temperature: Steam: 210°C or below, Water: 120°C or below Maximum Operating Pressure: 1.8MPa (18kgf/cm²) Thread Size: G(PF) 1" Compatible Hose Inner Diameter: 25mm Overall Height: 87.5mm Hexagon Diagonal: 41mm Weight: Approx. 320g Compatible Clamp: EA141BT-8
Brand Name: Esco
Material: Brass
Operating Temperature: Steam: 210°C or below, Water: 120°C or below
Maximum Operating Pressure: 1.8MPa (18kgf/cm²)
Thread Size: G(PF)1"
Compatible Hose Inner Diameter: 25mm
Overall Height: 87.5mm
Hexagon Diagonal: 41mm
Weight: Approx. 320g
Compatible Clamp: EA141BT-8
4548745727753
“G1” “x25mm Female Thread Stem (Steam Use / Brass)”
(text created at , 2025-05-12)
Brand Name: Esco
Material: Brass
Operating Temperature: Steam: 210°C or below, Water: 120°C or below
Maximum Operating Pressure: 1.8MPa (18kgf/cm²)
Thread Size: G(PF)1"
Compatible Hose Inner Diameter: 25mm
Overall Height: 87.5mm
Hexagon Diagonal: 41mm
Weight: Approx. 320g
Compatible Clamp: EA141BT-8
4548745727753
“G1” “x25mm Female Thread Stem (Steam Use / Brass)”
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
6,251 JPY (Including Tax)
Stock :
4
Scheduled Shipping:
2026-07-13
Quantity :
