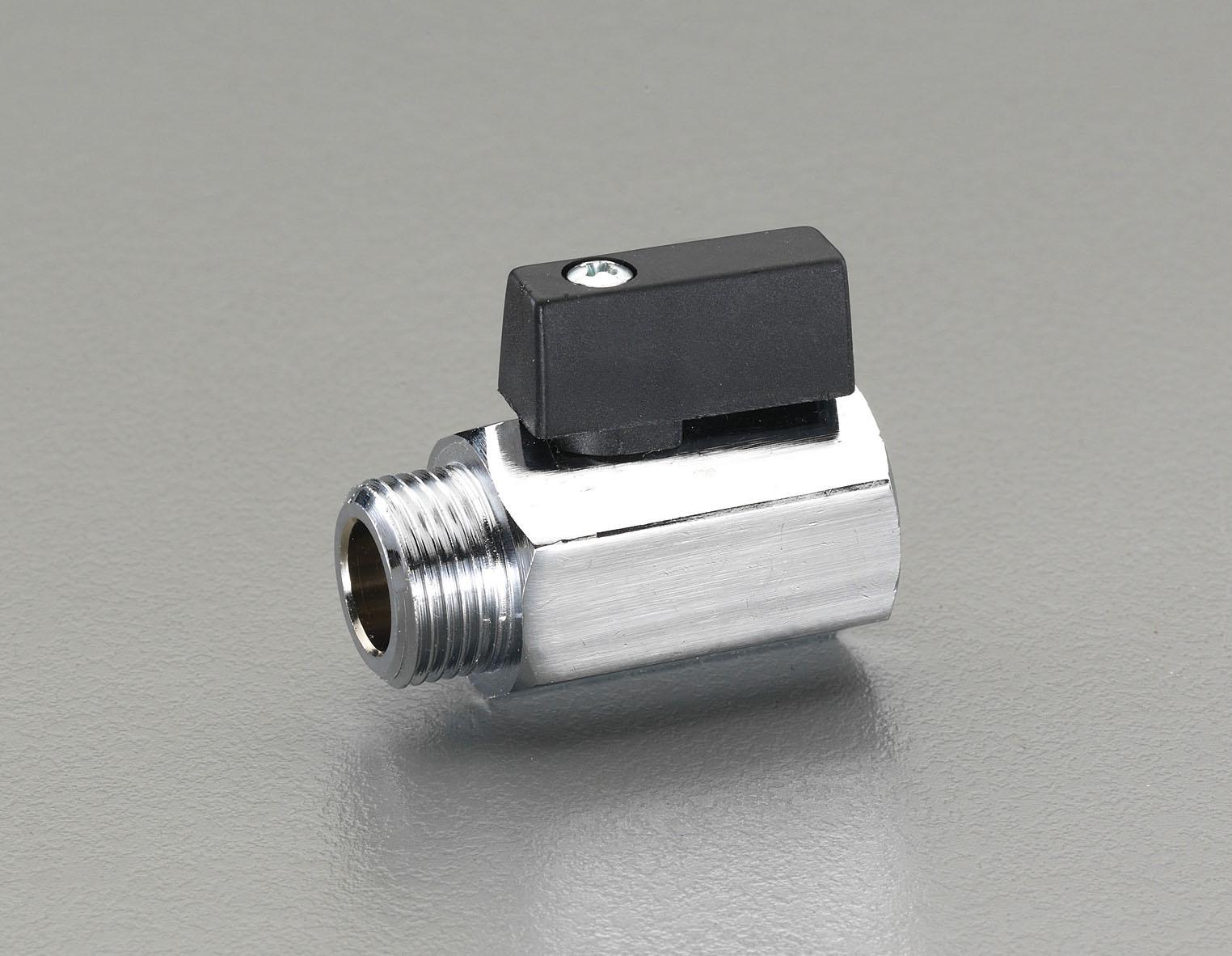

“G1/4” x “G1/4” Mini Ball Valve l: 36mm h: 38mm
JAN
4548745728156
ASIN
B00AXUKW1E
Maker
Model No.
EA470MA-2
Color
Size
l: 36mm h: 38mm
Description
Description
▪️Material…Body: Brass (Nickel-plated), Ball: Brass (Chrome-plated), Handle: Plastic, Seal: PTFE
▪️Compatible Fluids…Air, Water
▪️Full-bore type
▪️Operating Pressure…1MPa or less
▪️Operating Temperature…-10~90℃
▪️Thread Size (Male × Female)…G(PF) 1/4”
▪️Dimensions (mm)…l: 36, h: 38
▪️Hexagon Diagonal…19mm
▪️Weight…Approx. 61g
Brand Name: Esco
Material: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Suitable Fluids: Air・Water
Full Bore Type
Pressure: 0.98MPa (10kgf/cm²) or less
Operating Temperature: -10/90℃
4548745728156
“G1/4” x “G1/4” Mini Ball Valve l:36mm h:38mm
(text created at , 2025-05-09)
▪️Material…Body: Brass (Nickel-plated), Ball: Brass (Chrome-plated), Handle: Plastic, Seal: PTFE
▪️Compatible Fluids…Air, Water
▪️Full-bore type
▪️Operating Pressure…1MPa or less
▪️Operating Temperature…-10~90℃
▪️Thread Size (Male × Female)…G(PF) 1/4”
▪️Dimensions (mm)…l: 36, h: 38
▪️Hexagon Diagonal…19mm
▪️Weight…Approx. 61g
Brand Name: Esco
Material: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Suitable Fluids: Air・Water
Full Bore Type
Pressure: 0.98MPa (10kgf/cm²) or less
Operating Temperature: -10/90℃
4548745728156
“G1/4” x “G1/4” Mini Ball Valve l:36mm h:38mm
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
36x18x68 mm
Package
Weight (Approx.):
Weight (Approx.):
60 g
1,574 JPY (Including Tax)
Stock :
97
Scheduled Shipping:
2026-07-14
