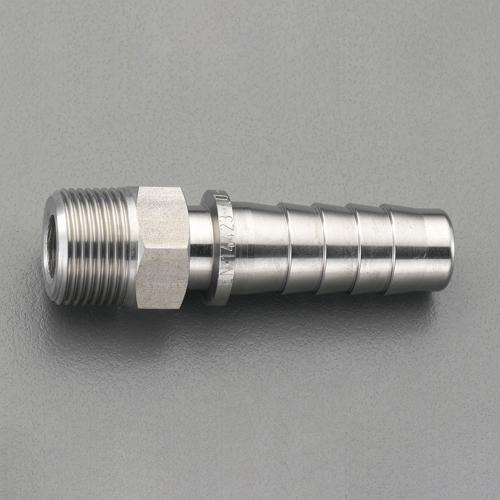

R3/4 x 19mm Male Thread Stem (for Steam / Stainless Steel)
JAN
4548745728477
ASIN
B00AXUK1YW
Maker
Model No.
EA141BS-66
Color
Size
R(PT) 3/4"
Description
Material: Stainless Steel (SUS304) Operating Temperature: Steam: 210°C or below, Water: 120°C or below Maximum Operating Pressure: 1.8MPa (18kgf/cm²) Thread Size: R(PT) 3/4" Compatible Hose Inner Diameter: 19mm Overall Height: 91mm Hexagon Diagonal: 27mm Weight: Approx. 175g Compatible Clamp: EA141BT-6
Brand Name: Esco
Material: Stainless Steel (SUS304)
Operating Temperature: Steam: 210°C or below, Water: 120°C or below
Maximum Operating Pressure: 1.8MPa (18kgf/cm²)
Thread Size: R(PT) 3/4"
Compatible Hose Inner Diameter: 19mm
Overall Height: 91mm
Hexagon Face-to-Face: 27mm
Weight: Approx. 175g
Compatible Clamp: EA141BT-6
4548745728477
“R3/4” “x19mm Male Thread Stem (Steam Use / Stainless Steel)”
(text created at , 2025-05-11)
Brand Name: Esco
Material: Stainless Steel (SUS304)
Operating Temperature: Steam: 210°C or below, Water: 120°C or below
Maximum Operating Pressure: 1.8MPa (18kgf/cm²)
Thread Size: R(PT) 3/4"
Compatible Hose Inner Diameter: 19mm
Overall Height: 91mm
Hexagon Face-to-Face: 27mm
Weight: Approx. 175g
Compatible Clamp: EA141BT-6
4548745728477
“R3/4” “x19mm Male Thread Stem (Steam Use / Stainless Steel)”
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,416 JPY (Including Tax)
Stock :
20
Scheduled Shipping:
2026-07-14
Quantity :
