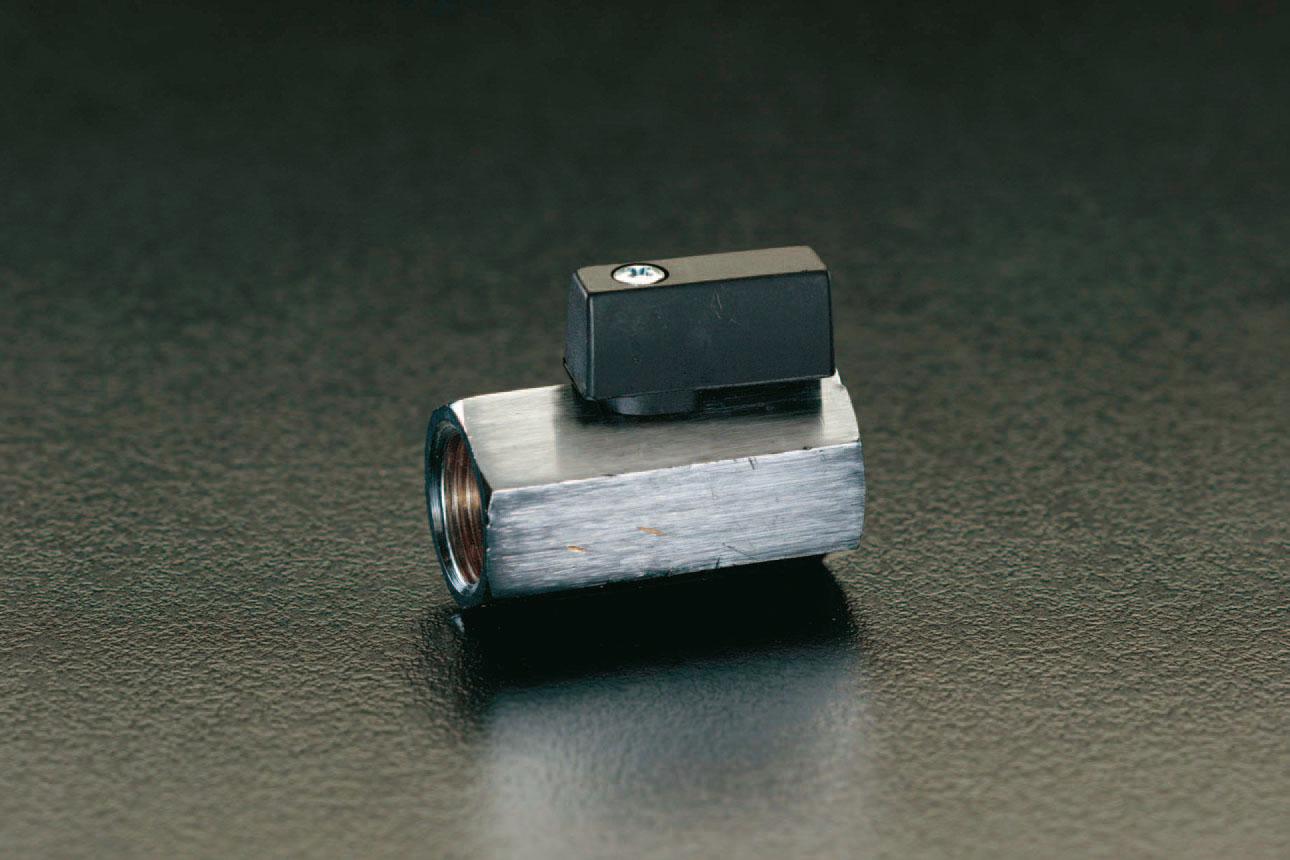

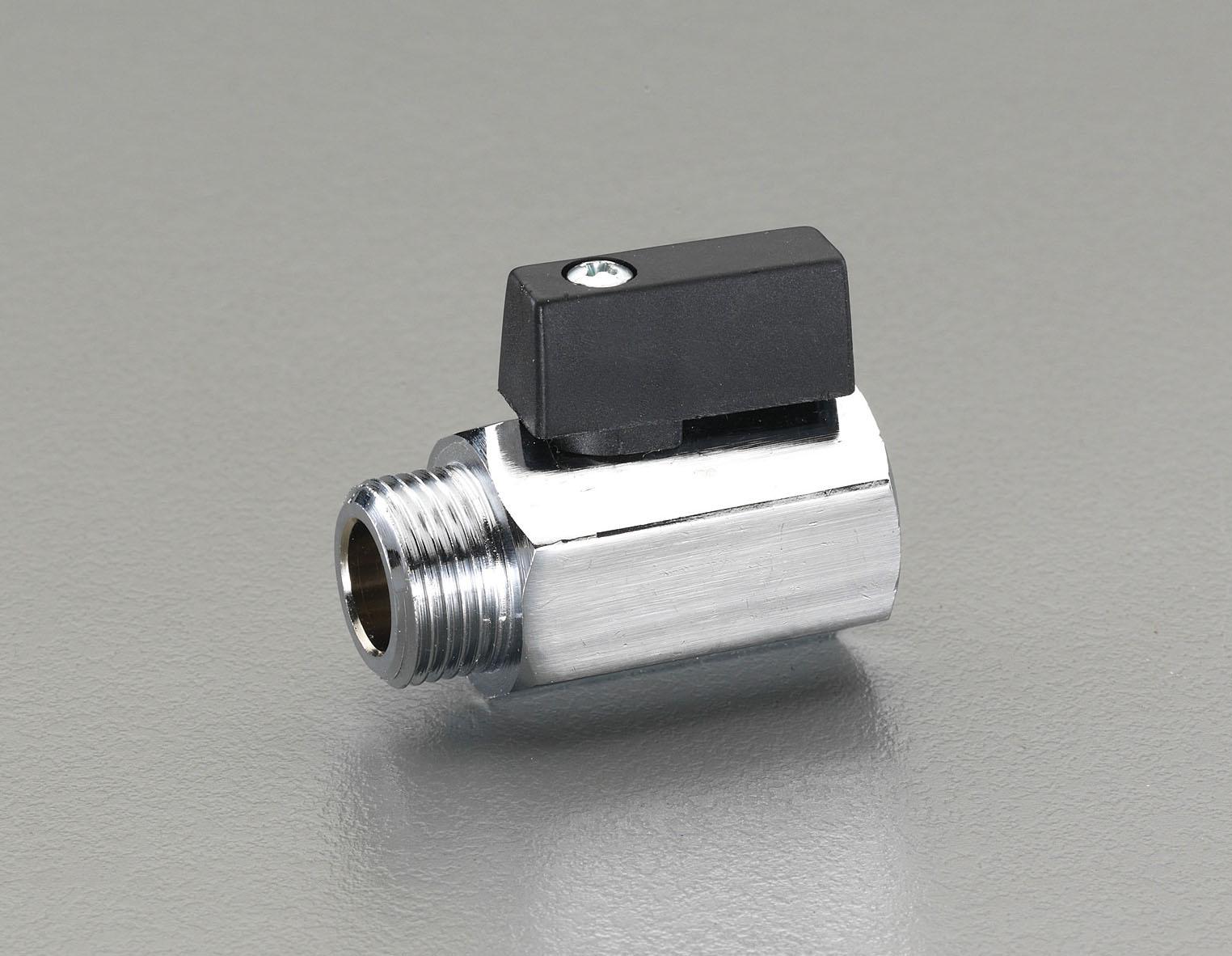

G 3/8 x G 3/8 Mini Ball Valve
JAN
4548745728620
ASIN
B00AXUKW3W
Maker
Model No.
EA470MA-3
Color
Size
l: 41mm h: 38mm
Description
ESCO Mini Ball Valve
Material: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Suitable Fluids: Air/Water
Full Bore Type
Pressure: 0.98MPa (10kgf/cm²) or less
Operating Temperature: -10/90°C
Thread Size (Male × Female): G(PF) 3/8"
Dimensions (mm): l: 41, h: 38
Hexagon Diagonal: 21mm
Weight: Approx. 83g
Brand Name: Esco
Material: Brass
Composition: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Usable Fluids: Air/Water
Full Bore Type
Pressure: 0.98MPa (10kgf/cm²) or less
Operating Temperature: -10/90℃
4548745728620
G 3/8 x G 3/8 Mini Ball Valve
(text created at , 2025-05-13)
Material: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Suitable Fluids: Air/Water
Full Bore Type
Pressure: 0.98MPa (10kgf/cm²) or less
Operating Temperature: -10/90°C
Thread Size (Male × Female): G(PF) 3/8"
Dimensions (mm): l: 41, h: 38
Hexagon Diagonal: 21mm
Weight: Approx. 83g
Brand Name: Esco
Material: Brass
Composition: Body: Brass (Nickel Plated), Ball: Brass (Chrome Plated), Handle: Plastic, Seal: PTFE
Usable Fluids: Air/Water
Full Bore Type
Pressure: 0.98MPa (10kgf/cm²) or less
Operating Temperature: -10/90℃
4548745728620
G 3/8 x G 3/8 Mini Ball Valve
(text created at , 2025-05-13)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
1,596 JPY (Including Tax)
Stock :
69
Scheduled Shipping:
2026-07-14
