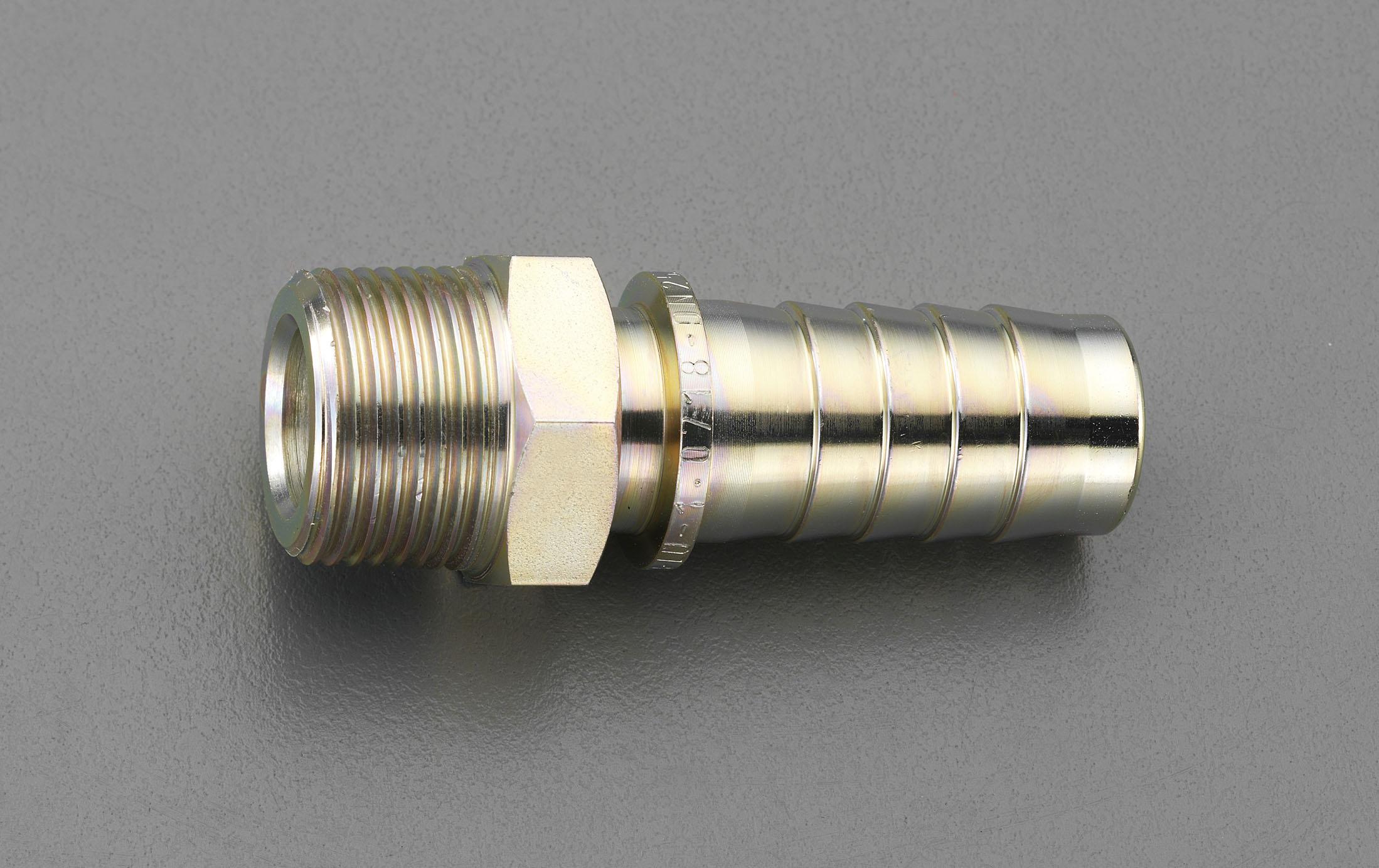

R1 x 25mm Male Thread Stem (Steam Use / Steel)
JAN
4548745729108
ASIN
B00AXUJYEK
Maker
Model No.
EA141BP-88
Color
Size
R(PT)1"
Description
Material: Steel (Zinc-plated) Operating Temperature: Steam: 210°C or below, Water: 120°C or below Maximum Operating Pressure: 1.8MPa (18kgf/cm²) Thread Size: R(PT) 1" Compatible Hose Inner Diameter: 25mm Overall Height: 95mm Hexagon Diagonal: 36mm Weight: Approx. 270g Compatible Clamp: EA141BT-8
Brand Name: Esco
Material: Steel (Zinc Plated)
Operating Temperature: Steam: 210°C or below, Water: 120°C or below
Maximum Operating Pressure: 1.8MPa (18kgf/cm²)
Thread Size: R(PT) 1"
Suitable Hose Inner Diameter: 25mm
Overall Height: 95mm
Hexagon Diagonal: 36mm
Weight: Approx. 270g
Compatible Clamp: EA141BT-8
4548745729108
“R1” “x25mm Male Thread Stem (Steam Use / Steel)”
(text created at , 2025-05-08)
Brand Name: Esco
Material: Steel (Zinc Plated)
Operating Temperature: Steam: 210°C or below, Water: 120°C or below
Maximum Operating Pressure: 1.8MPa (18kgf/cm²)
Thread Size: R(PT) 1"
Suitable Hose Inner Diameter: 25mm
Overall Height: 95mm
Hexagon Diagonal: 36mm
Weight: Approx. 270g
Compatible Clamp: EA141BT-8
4548745729108
“R1” “x25mm Male Thread Stem (Steam Use / Steel)”
(text created at , 2025-05-08)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
3,114 JPY (Including Tax)
