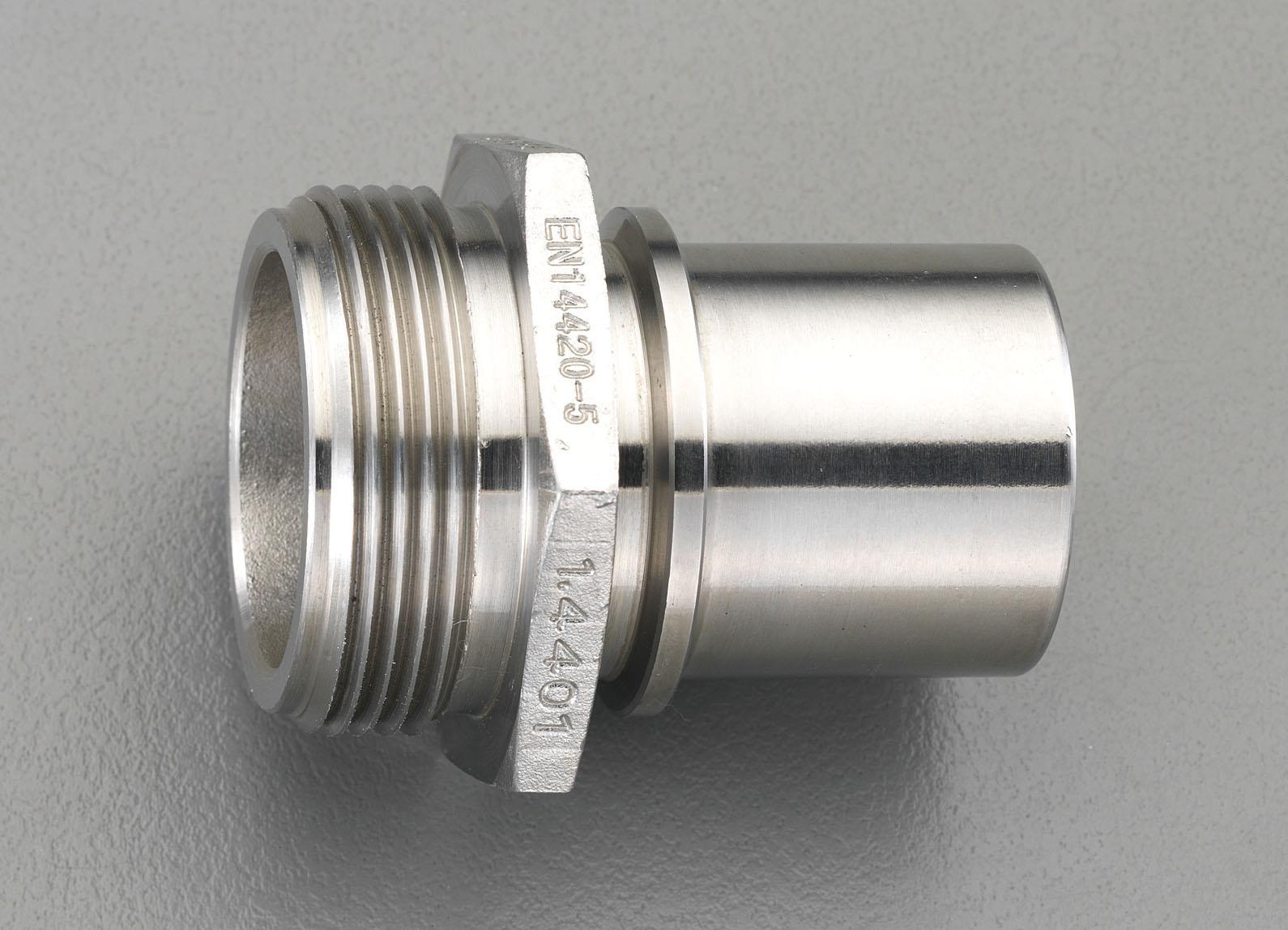

G3/4 Male Thread Hose Stem (Stainless Steel)
JAN
4548745729306
ASIN
B00AXUKLO2
Maker
Model No.
EA462EC-6
Color
Size
G (PF) 3/4"
Description
Material: Stainless Steel (SUS316)
Operating Temperature: -40°C/95°C\ Working Pressure: 2.5MPa (25kgf/cm²) Electropolished Finish Safety Flange Compatible Clamp: EA462EE-6 Thread Size: G(PF) 3/4" Compatible Hose ID: 19mm Hexagon Flange Diameter: 27mm Overall Height: 62mm Weight: Approx. 99g
Brand Name: Esco
Operating Temperature: -40℃/95℃
Pressure Rating: 2.5MPa (25kgf/cm²)
Electropolished Finish
Safety Flange
Compatible Clamp: EA462EE-6
Thread Size: G(PF) 3/4"
Compatible Hose ID: 19mm
Hexagon width: 27mm
Overall height: 62mm
4548745729306
“G3/4” “Male Thread Hose Stem (Stainless Steel)”
(text created at , 2025-05-12)
Operating Temperature: -40°C/95°C\ Working Pressure: 2.5MPa (25kgf/cm²) Electropolished Finish Safety Flange Compatible Clamp: EA462EE-6 Thread Size: G(PF) 3/4" Compatible Hose ID: 19mm Hexagon Flange Diameter: 27mm Overall Height: 62mm Weight: Approx. 99g
Brand Name: Esco
Operating Temperature: -40℃/95℃
Pressure Rating: 2.5MPa (25kgf/cm²)
Electropolished Finish
Safety Flange
Compatible Clamp: EA462EE-6
Thread Size: G(PF) 3/4"
Compatible Hose ID: 19mm
Hexagon width: 27mm
Overall height: 62mm
4548745729306
“G3/4” “Male Thread Hose Stem (Stainless Steel)”
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
3,000 JPY (Including Tax)
Stock :
16
Scheduled Shipping:
2026-07-13
Quantity :
