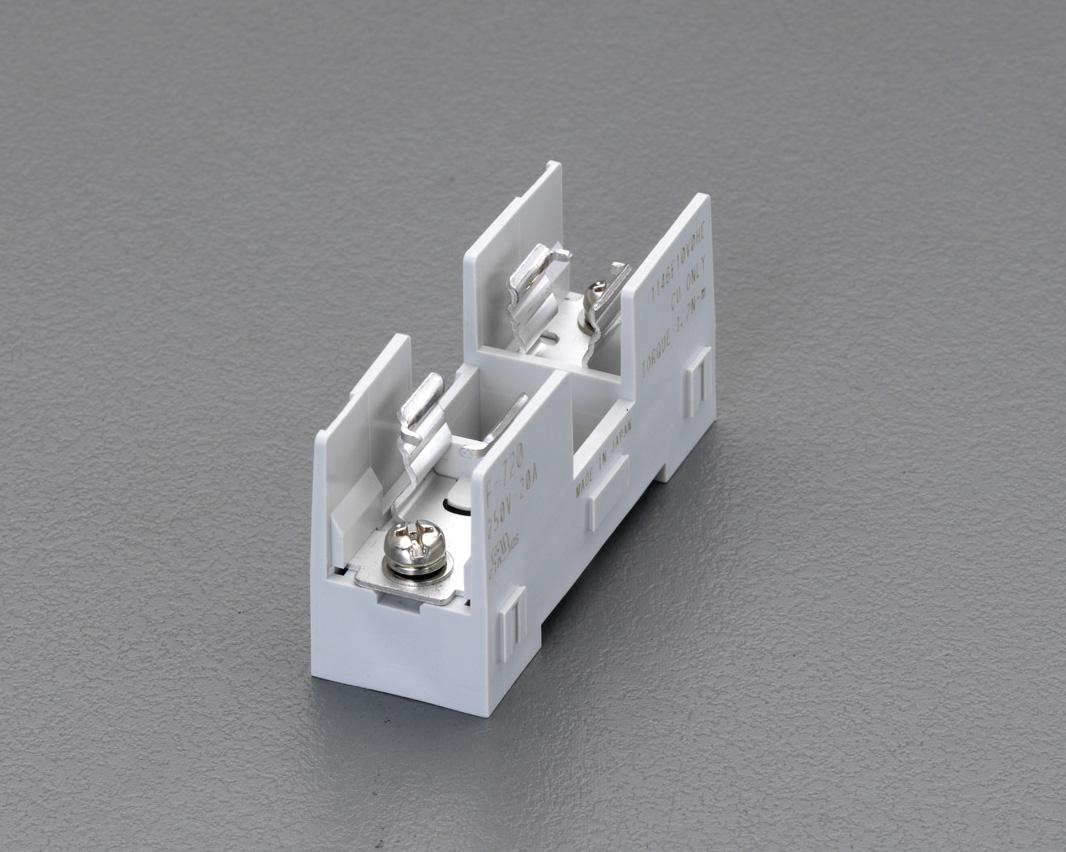

250V/20A [10.31x38.1mm] Fuse Holder EA940DL-19
JAN
4548745753622
ASIN
B00AXVBPUU
Maker
Model No.
EA940DL-19
Color
Size
65 × 21 × 30.5 mm
Description
ESCO-Fuse Holder-250V-10.31×38.1mm-EA940DL-19
Compatible fuse tube size: Diameter 10.31×38.1mm
1P fuse holder
Terminal hardware: Screw-Terminal (M4×8 Sem Screw)
DIN Rail/Panel Mountable
Size: 65×21×30.5mm
Rated: 250V-10A
Insulation Resistance: DC500V, 100MΩ or more
Withstand Voltage: AC2000V (1 minute)
Certifications: UL Standard, C-UL Standard
Brand Name: Esco
Compatible Fuse Tube Size: Diameter 10.31 × 38.1 mm
1P Fuse Holder
Terminal Block: Screw-on terminals (M4×8 cap screws)
DIN rail/panel mountable
Size: 65×21×30.5mm
Rated: 250V-10A
Insulation resistance: DC500V, 100MΩ or more
Withstand voltage: AC2000V (1 minute)
Certifications: UL, C-UL
4548745753622
250V/20A [10.31x38.1mm] Fuse Holder EA940DL-19
(text created at , 2025-05-10)
Compatible fuse tube size: Diameter 10.31×38.1mm
1P fuse holder
Terminal hardware: Screw-Terminal (M4×8 Sem Screw)
DIN Rail/Panel Mountable
Size: 65×21×30.5mm
Rated: 250V-10A
Insulation Resistance: DC500V, 100MΩ or more
Withstand Voltage: AC2000V (1 minute)
Certifications: UL Standard, C-UL Standard
Brand Name: Esco
Compatible Fuse Tube Size: Diameter 10.31 × 38.1 mm
1P Fuse Holder
Terminal Block: Screw-on terminals (M4×8 cap screws)
DIN rail/panel mountable
Size: 65×21×30.5mm
Rated: 250V-10A
Insulation resistance: DC500V, 100MΩ or more
Withstand voltage: AC2000V (1 minute)
Certifications: UL, C-UL
4548745753622
250V/20A [10.31x38.1mm] Fuse Holder EA940DL-19
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
44x35x105 mm
Package
Weight (Approx.):
Weight (Approx.):
36 g
837 JPY (Including Tax)
Stock :
21
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
