ESCO 8-9mm Coupler Set for Welding Machines (Oxygen Use) EA300BB-10
JAN
4548745764888
ASIN
B00AXUJZSK
Maker
Model No.
EA300BB-10
Color
Size
Description
ESCO - Welding Machine Coupler Set - EA300B

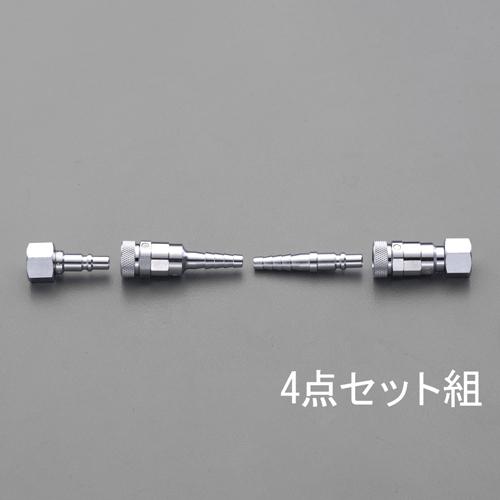

: 4-piece set EA300BB-1 (Oxygen Plug (8-9mm)) EA300BB-2 (Oxygen Coupler (8-9mm)) EA300BB-3 (Oxygen Plug [Equipment Side]) EA300BB-4 (Oxygen Coupler for Regulator)
Material
Body: Socket: Brass, Plug: Steel
Gasket: Nitrile Rubber
Spring: Stainless Steel
Common Specifications
Operating Temperature: -10°C/+60°C
Operating Pressure: Maximum Pressure 1MPa or less
Burst Pressure: 3MPa (Pressure value at which the entire body ruptures.)
Compatible Gas: Oxygen
Compatible Hose Diameter: 8/9mm\ nOxygen Plug Specifications
Application: Intermediate use
Hose side: Bamboo-type (Must be secured with a hose clamp.)
Oxygen Coupler Specifications
Oxygen Plug Specifications
Application: For welding equipment\ Connection Thread: M16×P1.5 (Right-hand thread; screws into the oxygen port of the welding machine.)
Oxygen Coupler Specifications for Regulators
Application: For regulators
Connection Thread: M16×P1.5 (Right-hand thread; screws into the connection port of the oxygen regulator.)
Brand Name: Esco
Material: Body: Socket: Brass
: 4-piece set EA300BB-1 (Oxygen Plug (8-9mm)) EA300BB-2 (Oxygen Coupler (8-9mm)) EA300BB-3 (Oxygen Plug [Equipment Side]) EA300BB-4 (Oxygen Coupler for Regulators)
Body/Socket: Brass, Plug: Steel
Operating Pressure: Maximum pressure 1MPa or less
4548745764888
ESCO 8-9mm Welder Coupler Set (Oxygen Use) EA300BB-10
(text created at , 2025-05-10)
Material
Body: Socket: Brass, Plug: Steel
Gasket: Nitrile Rubber
Spring: Stainless Steel
Common Specifications
Operating Temperature: -10°C/+60°C
Operating Pressure: Maximum Pressure 1MPa or less
Burst Pressure: 3MPa (Pressure value at which the entire body ruptures.)
Compatible Gas: Oxygen
Compatible Hose Diameter: 8/9mm\ nOxygen Plug Specifications
Application: Intermediate use
Hose side: Bamboo-type (Must be secured with a hose clamp.)
Oxygen Coupler Specifications
Oxygen Plug Specifications
Application: For welding equipment\ Connection Thread: M16×P1.5 (Right-hand thread; screws into the oxygen port of the welding machine.)
Oxygen Coupler Specifications for Regulators
Application: For regulators
Connection Thread: M16×P1.5 (Right-hand thread; screws into the connection port of the oxygen regulator.)
Brand Name: Esco
Material: Body: Socket: Brass
Body/Socket: Brass, Plug: Steel
Operating Pressure: Maximum pressure 1MPa or less
4548745764888
ESCO 8-9mm Welder Coupler Set (Oxygen Use) EA300BB-10
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
8,946 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
