ESCO 4-6mm Coupler Set for Welding Machines (Gas Use) EA300BA-20
JAN
4548745764895
ASIN
B00AXUJYU4
Maker
Model No.
EA300BA-20
Color
Size
Description
ESCO - Welding Machine Coupler Set - EA300B

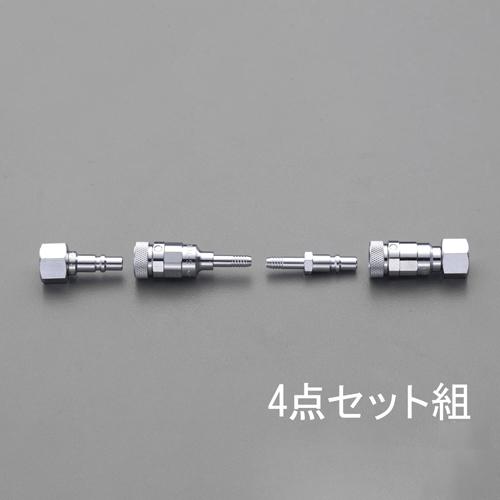

: 4-piece set EA300BA-11 (Gas Plug (4-6mm)) EA300BA-12 (Gas Coupler (4-6mm)) EA300BB-13 (Gas Plug [Equipment Side]) EA300BB-14 (Gas Coupler for Regulator)
Material
Body: Socket: Brass, Plug: Steel
Gasket: Nitrile Rubber
Spring: Stainless Steel
Common Specifications
Operating Temperature: -10°C/+60°C
Operating Pressure: Maximum Pressure 1MPa or less
Burst Pressure: 3MPa (Pressure value at which the entire body ruptures.)
Compatible Gases: Acetylene, Propane, Ethylene, Natural Gas
Compatible Hose Diameter: 4/6mm
Gas Plug Specifications
Application: Intermediate Use
Hose Side: Bamboo-type (Must be secured with a hose clamp.)
Gas Coupler Specifications
Application: For Welding Equipment\ Connection thread: M16×P1.5 left-hand thread (Screw into the regulator's connection port.) Gas regulator coupler specification Application: For regulators Connection thread: M16×P1.5 (left-hand thread; screw into the regulator's connection port.)
Brand name: Esco
Material: Body: Socket: Brass
4548745764895
ESCO 4-6mm Welder Coupler Set (Gas Use) EA300BA-20
(text created at , 2025-05-10)
Material
Body: Socket: Brass, Plug: Steel
Gasket: Nitrile Rubber
Spring: Stainless Steel
Common Specifications
Operating Temperature: -10°C/+60°C
Operating Pressure: Maximum Pressure 1MPa or less
Burst Pressure: 3MPa (Pressure value at which the entire body ruptures.)
Compatible Gases: Acetylene, Propane, Ethylene, Natural Gas
Compatible Hose Diameter: 4/6mm
Gas Plug Specifications
Application: Intermediate Use
Hose Side: Bamboo-type (Must be secured with a hose clamp.)
Gas Coupler Specifications
Application: For Welding Equipment\ Connection thread: M16×P1.5 left-hand thread (Screw into the regulator's connection port.) Gas regulator coupler specification Application: For regulators Connection thread: M16×P1.5 (left-hand thread; screw into the regulator's connection port.)
Brand name: Esco
Material: Body: Socket: Brass
4548745764895
ESCO 4-6mm Welder Coupler Set (Gas Use) EA300BA-20
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
