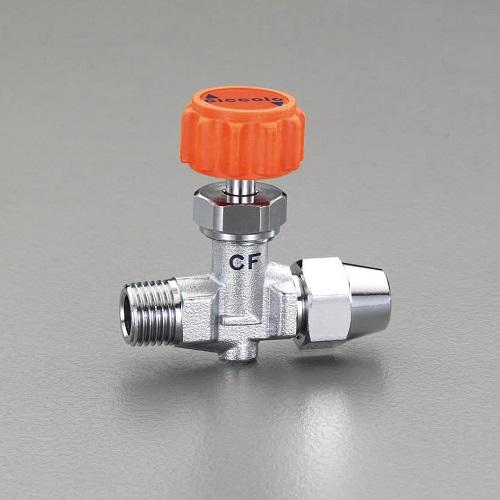

ESCO R3/8" x 10mm Needle Valve (Flare) EA426CF-310
JAN
4548745765533
ASIN
B00AXUKA5C
Maker
Model No.
EA426CF-310
Color
Size
Description
ESCO Needle Valve - Flare
Material: Brass (Chrome-plated finish)
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing points)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8"\ Copper Tube Outer Diameter: 10mm
Weight: 130g
Flare Type for Copper Tubing
Straight Type
Applications: Pneumatic equipment (e.g., compressors), small pumps and accessories, marine and agricultural equipment, hydraulic equipment for copper tubing piping, instrumentation equipment, machine tools and equipment, other industrial machinery and apparatus.
Features a tapered (PT) external thread on the primary side and a secondary side that clamps copper tubing with a flare nut.
Installation requires flaring the end face of the copper tube after threading the nut.
Brand Name: Esco
Material: Brass (Chrome Plated Finish)
Temperature: -10/80°C (Excluding Freezing Locations)
Mounting Thread (A): R(PT) 3/8"
Copper Tube OD: 10mm
Flare type for copper tubing
Straight type
4548745765533
Esco R3/8" x 10mm Needle Valve (Flare) EA426CF-310
(text created at , 2025-05-09)
Material: Brass (Chrome-plated finish)
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing points)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8"\ Copper Tube Outer Diameter: 10mm
Weight: 130g
Flare Type for Copper Tubing
Straight Type
Applications: Pneumatic equipment (e.g., compressors), small pumps and accessories, marine and agricultural equipment, hydraulic equipment for copper tubing piping, instrumentation equipment, machine tools and equipment, other industrial machinery and apparatus.
Features a tapered (PT) external thread on the primary side and a secondary side that clamps copper tubing with a flare nut.
Installation requires flaring the end face of the copper tube after threading the nut.
Brand Name: Esco
Material: Brass (Chrome Plated Finish)
Temperature: -10/80°C (Excluding Freezing Locations)
Mounting Thread (A): R(PT) 3/8"
Copper Tube OD: 10mm
Flare type for copper tubing
Straight type
4548745765533
Esco R3/8" x 10mm Needle Valve (Flare) EA426CF-310
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
1,566 JPY (Including Tax)
Stock :
3
Scheduled Shipping:
2026-07-14
