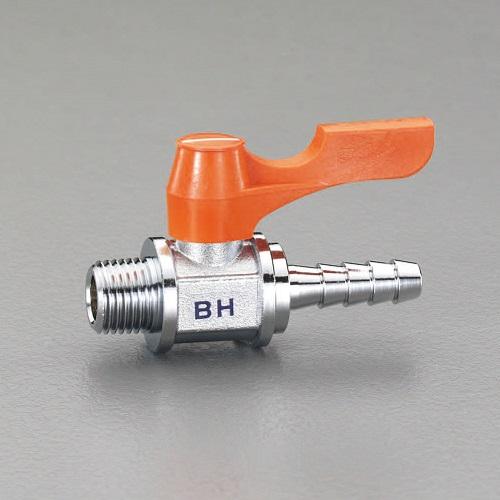

R 3/8x10.5mm Ball Valve (Stem Type, Miniature)
JAN
4548745765595
ASIN
B00AXUK5OS
Maker
Model No.
EA425BH-210
Color
Size
Description
ESCO Ball Valve
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing points)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8"
Spigot Diameter (D): 10.5mm
Size (R): Diameter 8mm
Weight: 106g
Hose Nipple Integrated
Brand Name: Esco
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing locations)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8"
4548745765595
R 3/8x10.5mm Ball Valve (Stem Type, Miniature)
(text created at , 2025-05-11)
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing points)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8"
Spigot Diameter (D): 10.5mm
Size (R): Diameter 8mm
Weight: 106g
Hose Nipple Integrated
Brand Name: Esco
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing locations)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8"
4548745765595
R 3/8x10.5mm Ball Valve (Stem Type, Miniature)
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
2,431 JPY (Including Tax)
Stock :
20
Scheduled Shipping:
2026-07-14
