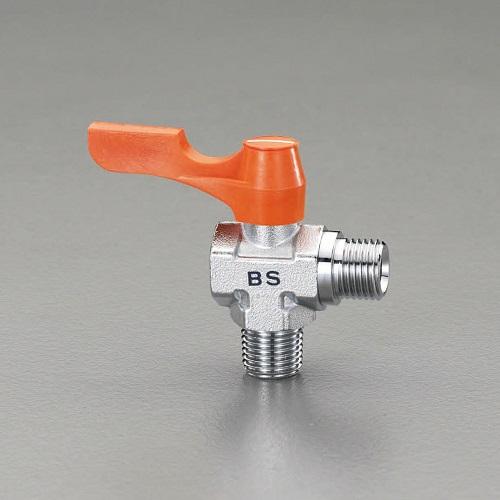

R 1/8xG 1/8 Mini Ball Valve
JAN
4548745765632
ASIN
B00AXUKDB8
Maker
Model No.
EA425BS-311
Color
Size
Description
ESCO Mini Ball Valve
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing points)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 1/8“
Mounting Thread (D): G(PF) 1/8”
Size (R): Diameter 6mm
Weight: 68g
Angle Type
Brand Name: Esco
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing locations)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 1/8"
4548745765632
R 1/8xG 1/8 Mini Ball Valve
(text created at , 2025-05-10)
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing points)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 1/8“
Mounting Thread (D): G(PF) 1/8”
Size (R): Diameter 6mm
Weight: 68g
Angle Type
Brand Name: Esco
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing locations)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 1/8"
4548745765632
R 1/8xG 1/8 Mini Ball Valve
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
1,972 JPY (Including Tax)
Stock :
6
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
