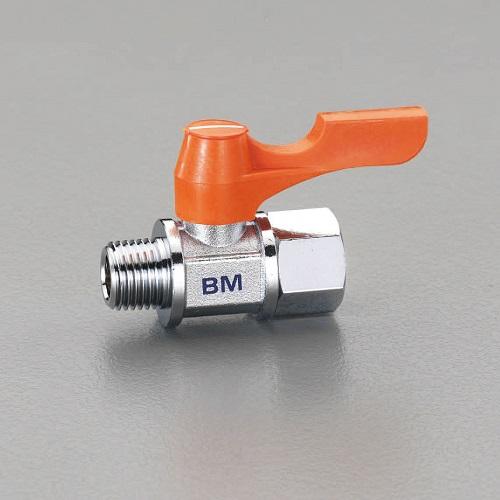

ESCO R1/8“ x Rc1/8” Mini Ball Valve (RoHS Compliant) EA425BM-111
JAN
4548745769241
ASIN
B00AXUK8U4
Maker
Model No.
EA425BM-111
Color
Size
Description
ESCO Mini Ball Valve - RoHS Compliant
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing locations)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 1/8“
Mounting Thread (D): Rc(PT) 1/8”
Size (R): Diameter 6mm
RoHS compliant (Cadmium content ≤ 75ppm).
Straight Type
Applications: Pneumatic equipment such as compressors, small pumps and accessories, marine and agricultural equipment, hydraulic equipment for copper piping, scientific and medical equipment, machine tools and equipment, other industrial machinery and apparatus.
Brand Name: Esco
Temperature: -10/80°C (excluding freezing points)
Mounting Thread (A): R(PT) 1/8"
Mounting Thread (D): Rc(PT) 1/8"
RoHS compliant (cadmium content ≤75ppm).
Straight type
4548745769241
ESCO R1/8“ x Rc1/8” Mini Ball Valve (RoHS Compliant) EA425BM-111
(text created at , 2025-05-10)
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing locations)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 1/8“
Mounting Thread (D): Rc(PT) 1/8”
Size (R): Diameter 6mm
RoHS compliant (Cadmium content ≤ 75ppm).
Straight Type
Applications: Pneumatic equipment such as compressors, small pumps and accessories, marine and agricultural equipment, hydraulic equipment for copper piping, scientific and medical equipment, machine tools and equipment, other industrial machinery and apparatus.
Brand Name: Esco
Temperature: -10/80°C (excluding freezing points)
Mounting Thread (A): R(PT) 1/8"
Mounting Thread (D): Rc(PT) 1/8"
RoHS compliant (cadmium content ≤75ppm).
Straight type
4548745769241
ESCO R1/8“ x Rc1/8” Mini Ball Valve (RoHS Compliant) EA425BM-111
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
