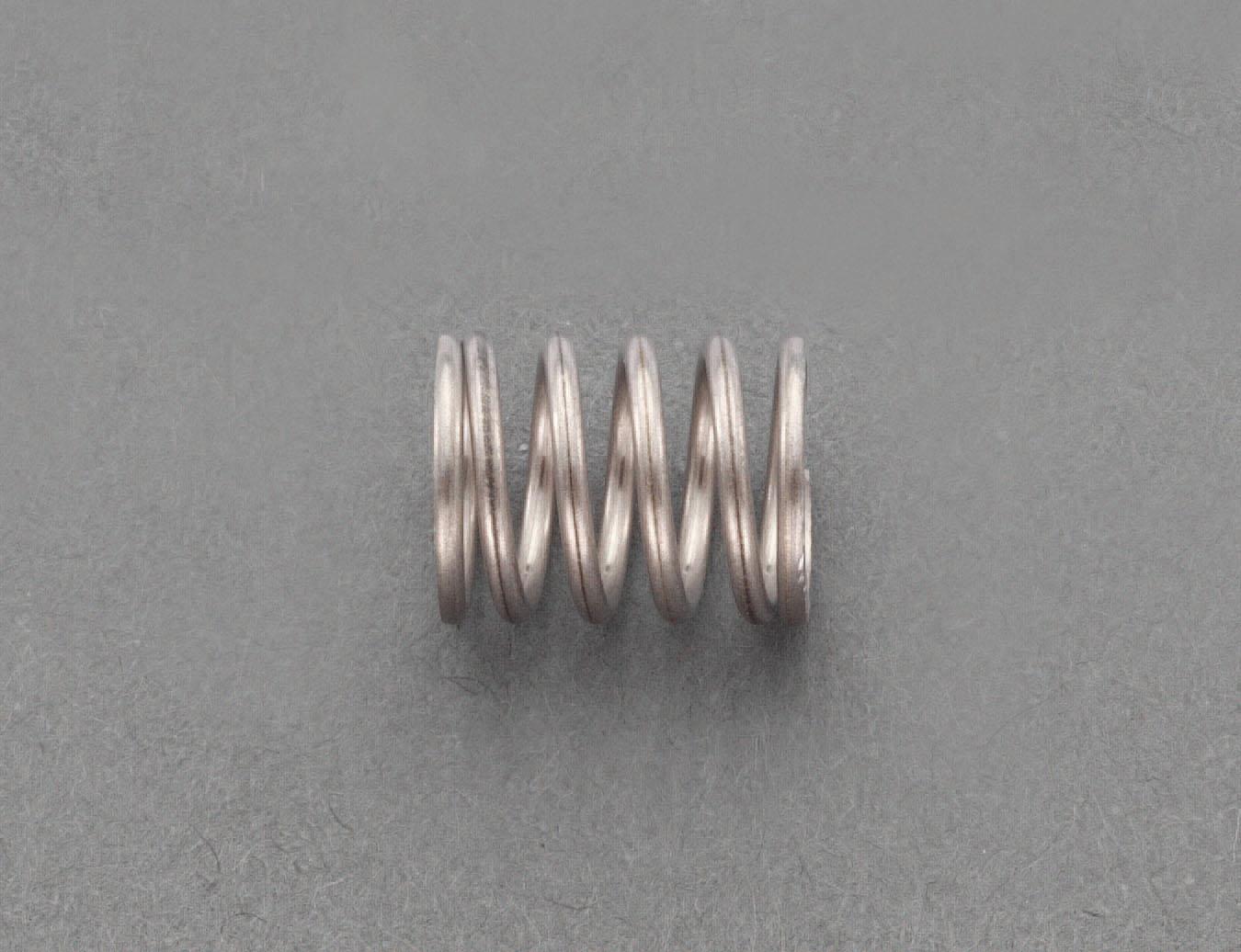

5.0 x 0.7 / 13.0mm Push Spring (Stainless Steel/5 pcs) EA952SF-83
JAN
4548745771503
ASIN
B00AXVEHT6
Maker
Model No.
EA952SF-83
Color
Size
Description
ESCO Push Spring - Stainless Steel - 5 Pieces
▪️Material…SUS304
▪️Coil Direction…Right-hand
▪️Rated Load…10.69N
▪️Height at Rated Load…9.29mm
▪️Wire Diameter…φ0.7mm
▪️Outer Diameter…φ5mm
▪️Height…13mm
▪️Spring Constant…2.883N/mm
▪️Closed Height…8.4mm
▪️End Shape…Closed End
▪️Quantity…5 pieces
▪️RoHS Compliant
Brand Name: Esco
Material…SUS304, Coil Direction…Right-hand
Allowable Load…10.69N, Height at Allowable Load…9.29mm
Wire Diameter…0.7mm diameter, Outer Diameter…5mm diameter, Height…13mm
Spring Constant…2.883N/mm, Contact Height…8.4mm
4548745771503
5.0x0.7 / 13.0mm Thrust Spring (Stainless Steel/5 pcs) EA952SF-83
(text created at , 2025-05-13)
▪️Material…SUS304
▪️Coil Direction…Right-hand
▪️Rated Load…10.69N
▪️Height at Rated Load…9.29mm
▪️Wire Diameter…φ0.7mm
▪️Outer Diameter…φ5mm
▪️Height…13mm
▪️Spring Constant…2.883N/mm
▪️Closed Height…8.4mm
▪️End Shape…Closed End
▪️Quantity…5 pieces
▪️RoHS Compliant
Brand Name: Esco
Material…SUS304, Coil Direction…Right-hand
Allowable Load…10.69N, Height at Allowable Load…9.29mm
Wire Diameter…0.7mm diameter, Outer Diameter…5mm diameter, Height…13mm
Spring Constant…2.883N/mm, Contact Height…8.4mm
4548745771503
5.0x0.7 / 13.0mm Thrust Spring (Stainless Steel/5 pcs) EA952SF-83
(text created at , 2025-05-13)
Package
Size (Approx.):
Size (Approx.):
35x22x68 mm
Package
Weight (Approx.):
Weight (Approx.):
20 g
635 JPY (Including Tax)
