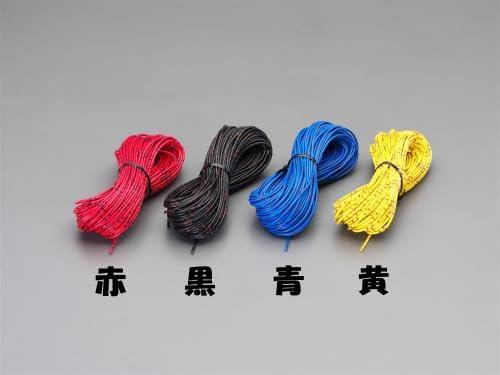

0.5mm² x 25m [AVS/Red] Automotive Cord

4548745778977

B00AXV8QZ2

EA812JY-101

Red

Color: Red Length: 25m Nominal Cross-sectional Area: 0.5mm² Allowable Current: 12A Conductor: Stranded/Solid Diameter: 7 strands/0.32mm Shape: Stranded Calculated Cross-sectional Area: 0.5629mm² Outer Diameter: Approx. 1.0mm Standard Insulation Thickness: 0.5mm Standard Finish Outer Diameter: 2.0mm Maximum Conductor Resistance: 0.0327Ω/m (2 Outer Diameter: Approx. 1.0mm Insulation Standard Thickness: 0.5mm Standard Finish Outer Diameter: 2.0mm Maximum Conductor Resistance: 0.0327Ω/m (20℃) Rated Temperature: 80℃ (Continuous Heat Resistance) Weight: 213g Material: Conductor: Copper, Sheath: Vinyl (PVC) AVS wire, thin-sheathed type of AV wire, compliant with JASO D611.

Brand Name: Esco
Color: Red
Length: 25m
Nominal Cross-sectional Area: 0.5mm²
Allowable Current: 12A
Conductor: Solid wire / Strand diameter: 7 strands/0.32mm, Shape: Stranded, Calculated cross-sectional area: 0.5629mm², Outer diameter: Approx. 1.0mm
Insulation standard thickness: 0.5mm
Standard finished outer diameter: 2.0mm
Maximum conductor resistance: 0.0327Ω/m (20°C)
Rated temperature: 80°C (Continuous heat resistance temperature)
4548745778977
0.5mm² x 25m [ AVS/Red] Automotive Cord
(text created at , 2025-05-11)

250x100x250 mm

2000 g
