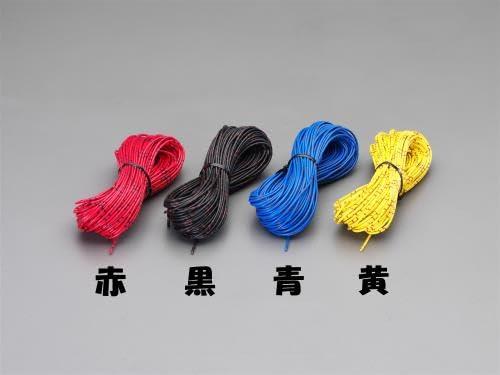

1.25mm² x 25m [AVS/Black] Automotive Cable
JAN
4548745779790
ASIN
B00AXV8UBC
Maker
Model No.
EA812JY-122
Color
Black
Size
Description
ESCO-1-25mm²x25m-AVS-Automotive Cord-EA812JY-122
Color: Black
Total Length: 25m
Nominal Cross-Section Area: 1.25mm²
Allowable Current: 21A
Conductor: Solid Wire/ Strand Count: 16 strands/0.32mm, Shape: Stranded, Calculated Cross-sectional Area: 1.287mm², Outer Diameter: Approx. 1.5mm
Insulation Standard Thickness: 0.5mm
Standard Finished Outer Diameter: 2.5mm
Maximum Conductor Resistance: 0.0143Ω/m (20°C)
Rated Temperature: 80°C (Continuous Heat Resistance Temperature)
Brand Name: Esco
Color: Black
Total Length: 25m
Nominal Cross-sectional Area: 1.25mm²
Allowable Current: 21A
Conductor: Solid Wire/ Strand Count: 16 strands/0.32mm, Shape: Stranded, Calculated Cross-sectional Area: 1.287mm², Outer Diameter: Approx. 1.5mm
Insulation Standard Thickness: 0.5mm
Standard Finished Outer Diameter: 2.5mm
Maximum Conductor Resistance: 0.0143Ω/m (20°C)
Rated Temperature: 80°C (Continuous Heat Resistance Temperature)
4548745779790
1.25mm² x 25m [AVS/Black] Automotive Cord
(text created at , 2025-05-10)
Color: Black
Total Length: 25m
Nominal Cross-Section Area: 1.25mm²
Allowable Current: 21A
Conductor: Solid Wire/ Strand Count: 16 strands/0.32mm, Shape: Stranded, Calculated Cross-sectional Area: 1.287mm², Outer Diameter: Approx. 1.5mm
Insulation Standard Thickness: 0.5mm
Standard Finished Outer Diameter: 2.5mm
Maximum Conductor Resistance: 0.0143Ω/m (20°C)
Rated Temperature: 80°C (Continuous Heat Resistance Temperature)
Brand Name: Esco
Color: Black
Total Length: 25m
Nominal Cross-sectional Area: 1.25mm²
Allowable Current: 21A
Conductor: Solid Wire/ Strand Count: 16 strands/0.32mm, Shape: Stranded, Calculated Cross-sectional Area: 1.287mm², Outer Diameter: Approx. 1.5mm
Insulation Standard Thickness: 0.5mm
Standard Finished Outer Diameter: 2.5mm
Maximum Conductor Resistance: 0.0143Ω/m (20°C)
Rated Temperature: 80°C (Continuous Heat Resistance Temperature)
4548745779790
1.25mm² x 25m [AVS/Black] Automotive Cord
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
3,439 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-14
Quantity :
