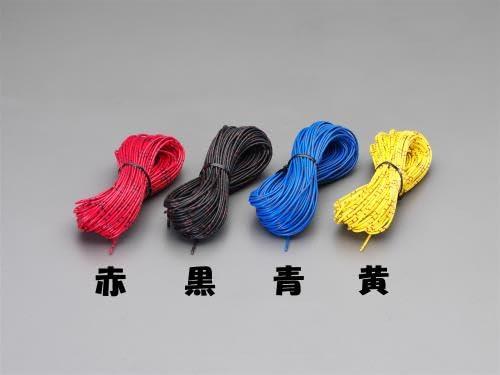

1.25mm² x 25m [AVS/Blue] Automotive Cable
JAN
4548745779806
ASIN
B00AXV8UJO
Maker
Model No.
EA812JY-123
Color
Blue
Size
Description
Brand Name: Esco
Color: Blue
Length: 25m
Nominal Cross-sectional Area: 1.25mm²
Allowable Current: 21A
Conductor: Stranded/Solid Diameter: 16 strands/0.32mm, Shape: Stranded, Calculated Cross-sectional Area: 1.287mm², Outer Diameter: Approx. 1.5mm
Insulation Standard Thickness: 0.5mm
Standard Finish Outer Diameter: 2.5mm
Maximum Conductor Resistance: 0.0143Ω/m (20℃)
Rated Temperature: 80℃ (Continuous Heat Resistance Temperature)
4548745779806
1.25mm² x 25m [AVS/Blue] Automotive Cord
(text created at , 2025-05-10)
Color: Blue
Length: 25m
Nominal Cross-sectional Area: 1.25mm²
Allowable Current: 21A
Conductor: Stranded/Solid Diameter: 16 strands/0.32mm, Shape: Stranded, Calculated Cross-sectional Area: 1.287mm², Outer Diameter: Approx. 1.5mm
Insulation Standard Thickness: 0.5mm
Standard Finish Outer Diameter: 2.5mm
Maximum Conductor Resistance: 0.0143Ω/m (20℃)
Rated Temperature: 80℃ (Continuous Heat Resistance Temperature)
4548745779806
1.25mm² x 25m [AVS/Blue] Automotive Cord
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
3,439 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
