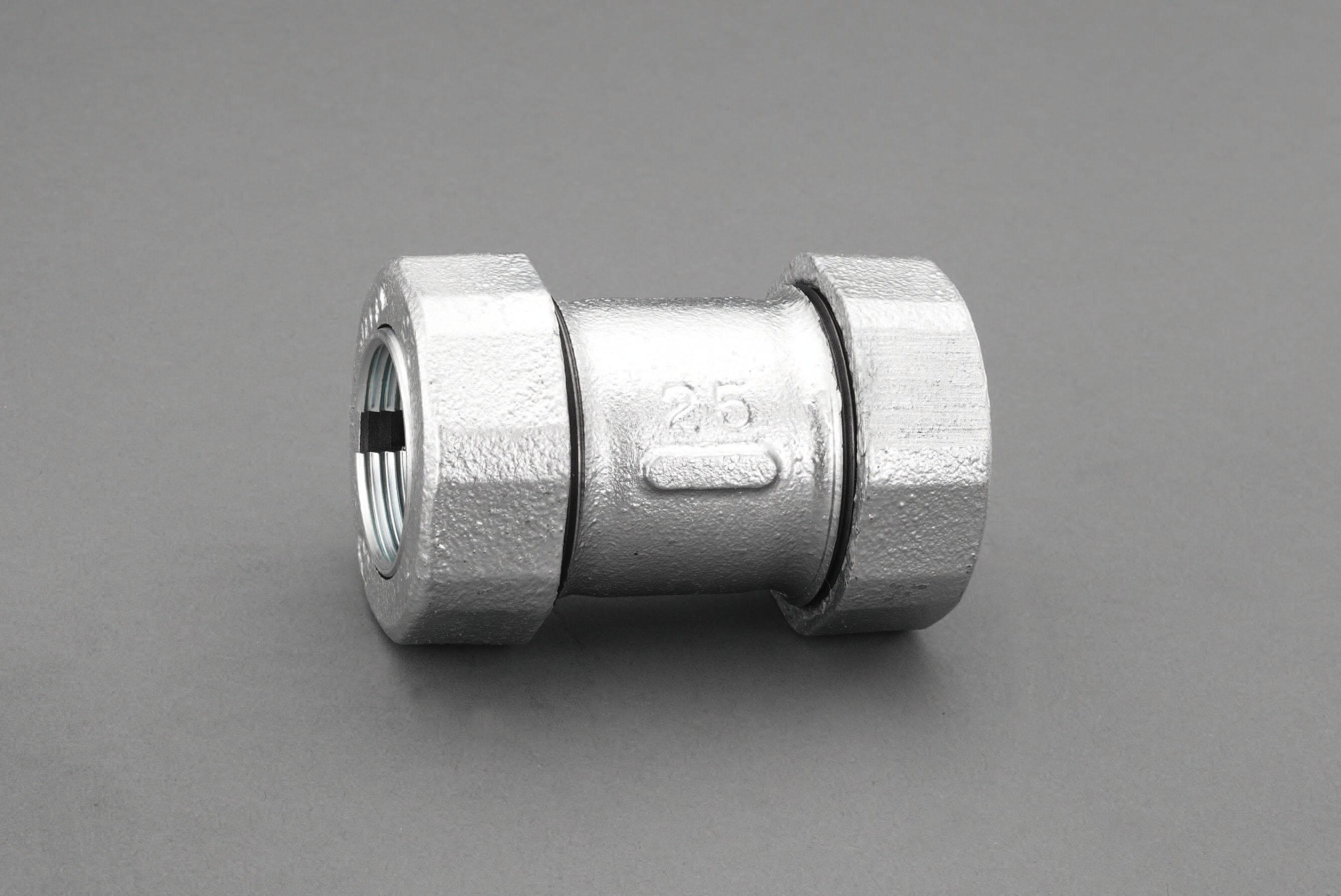

25A Socket (Mechanical Fitting for Three Pipe Types)

4548745783131

B00AXUL1HS

EA469H-25

X: 70mm, A: 91mm

Nominal: 25A
Nut width (F): 59mm
Nut height (H): 21mm
End face/End face spacing: X: 70mm, A: 91mm
Material: Body/Nut: Malleable cast iron (hot-dip galvanized), Lock ring/Collars: Steel, Gasket: NBR
Weight: 673g
Maximum working pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²) Maximum operating pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²). Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. Not suitable for use with additive-containing hydraulic fluids.

Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Nominal Size: 25A
Nut Face-to-Face Width (F): 59mm
Nut Height (H): 21mm
Face-to-Face Size: X: 70mm, A: 91mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
4548745783131
25A Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-05-11)

250x100x250 mm

2000 g
