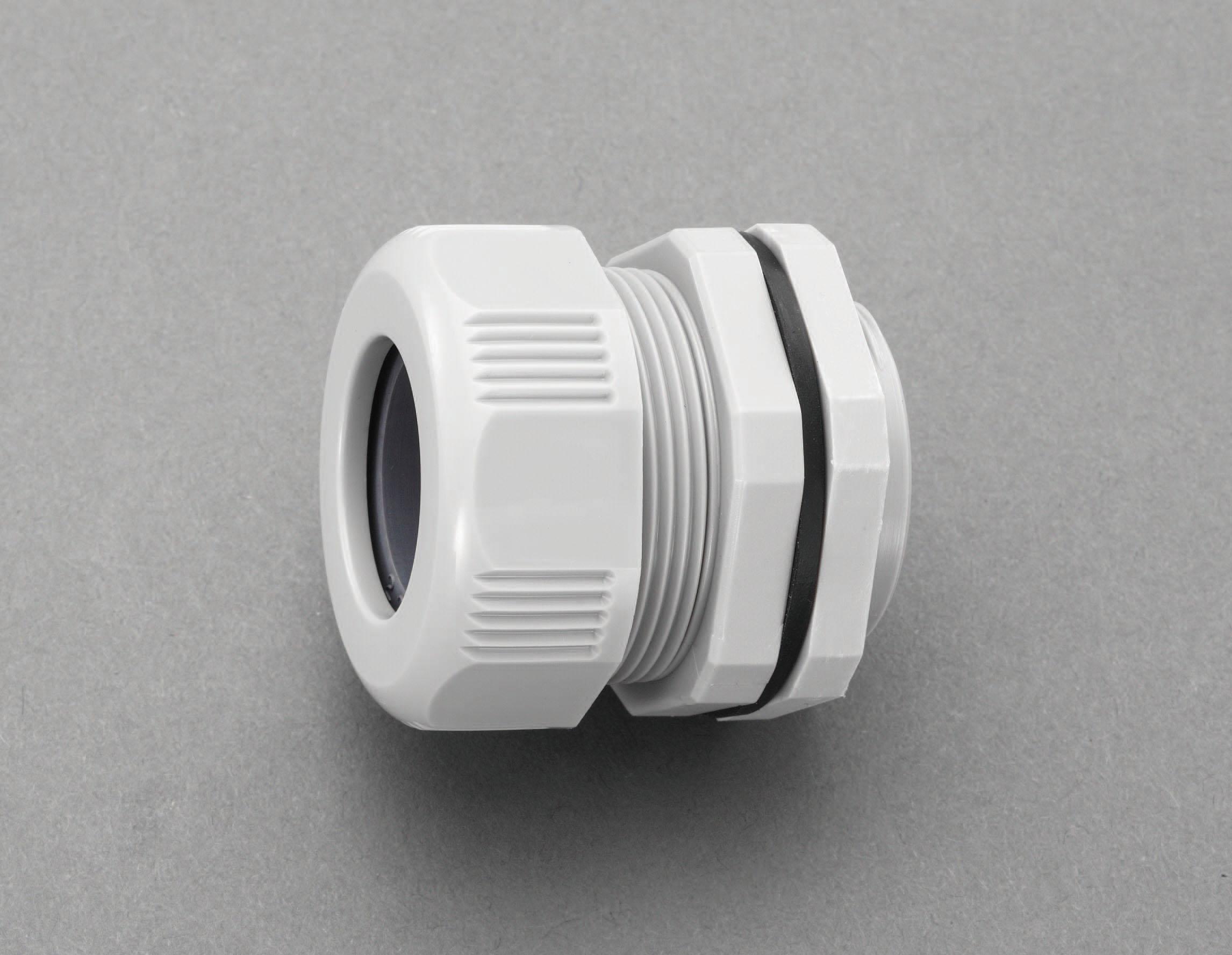

6.5–8.5 mm / G3/8" Cable Gland (Flame Retardant)
JAN
4548745785487
ASIN
B00AXVB2WG
Maker
Model No.
EA948HS-3
Color
Gray
Size
Description
ESCO Cable Ground - Flame Retardant Type - 6-5-8-5mm - EA948HS-3
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Suitable Cable Diameter: 6.5/8.5mm
Mounting Screw: G3/8
Mounting Hole Diameter: 17mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 35.0, B(max): 25.5, C: 13.2, Diameter D: 11.0, Diameter E: 26.0, F: 24, Diameter K (OD): 16.7, L (Length): 11.0
Lock Nut Size
Brand Name: Esco
Material: Body, Cap, Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Material: Body, Cap, Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Suitable Cable Diameter: 6.5/8.5mm
Mounting Screw: G3/8
Mounting Hole Diameter: 17mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 35.0, B(max):25.5, C:13.2, Diameter D:11.0, Diameter E:26.0, F:24, Diameter K(OD):16.7, L(Length):11.0
Lock Nut Size
4548745785487
“6.5-8.5mm/G3/8” “Cable Gland (Flame Retardant Type)”
(text created at , 2025-05-11)
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Suitable Cable Diameter: 6.5/8.5mm
Mounting Screw: G3/8
Mounting Hole Diameter: 17mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 35.0, B(max): 25.5, C: 13.2, Diameter D: 11.0, Diameter E: 26.0, F: 24, Diameter K (OD): 16.7, L (Length): 11.0
Lock Nut Size
Brand Name: Esco
Material: Body, Cap, Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Material: Body, Cap, Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Suitable Cable Diameter: 6.5/8.5mm
Mounting Screw: G3/8
Mounting Hole Diameter: 17mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 35.0, B(max):25.5, C:13.2, Diameter D:11.0, Diameter E:26.0, F:24, Diameter K(OD):16.7, L(Length):11.0
Lock Nut Size
4548745785487
“6.5-8.5mm/G3/8” “Cable Gland (Flame Retardant Type)”
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
50x50x50 mm
Package
Weight (Approx.):
Weight (Approx.):
100 g
345 JPY (Including Tax)
Stock :
23
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
