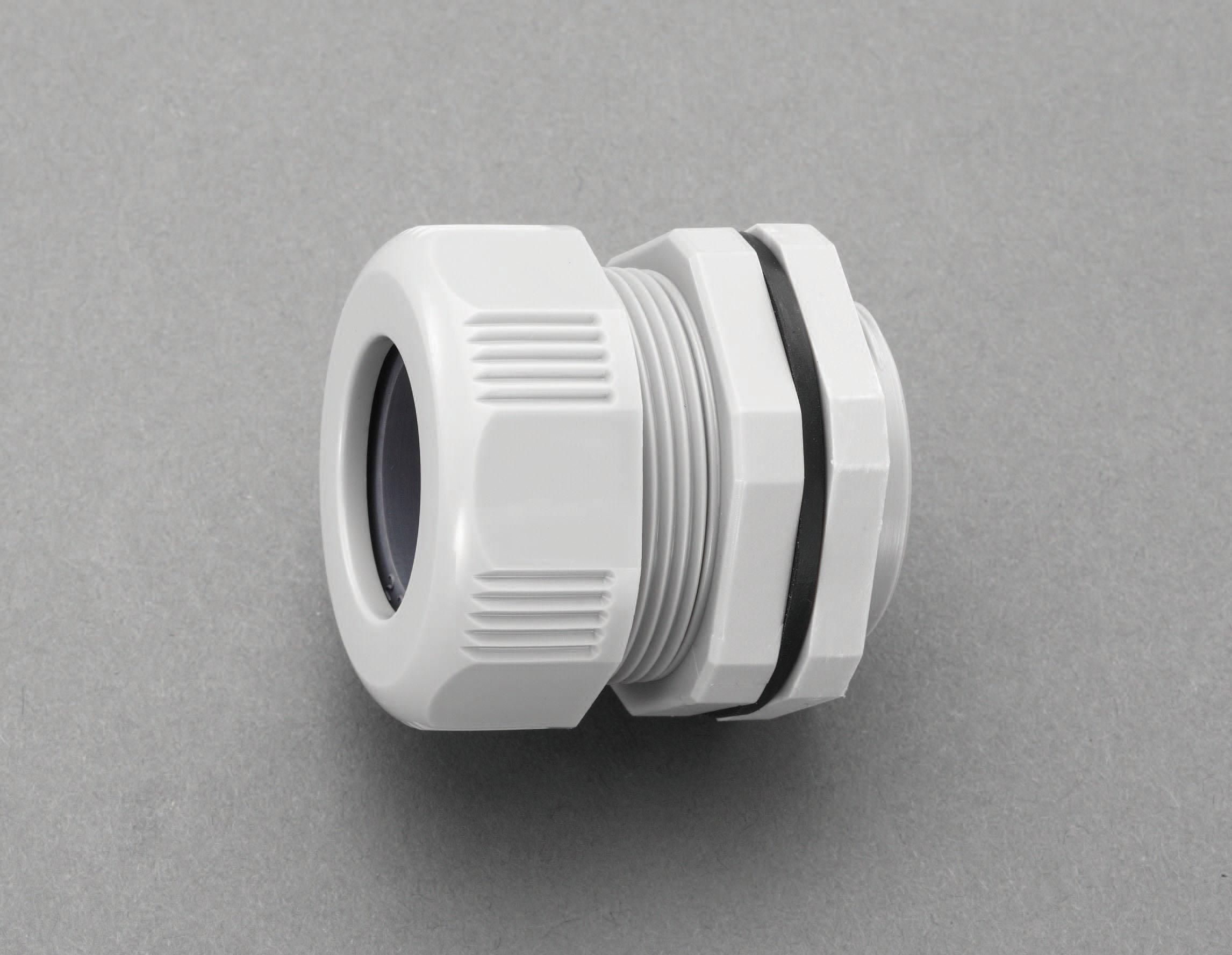

27–30mm/G1/4" Cable Gland (Flame-Retardant Type)
JAN
4548745786002
ASIN
B00AXVB5UK
Maker
Model No.
EA948HS-13
Color
Gray
Size
Description
ESCO Cable Ground 27-30mm G1・1 EA948HS-13
Material: Body・Cap・Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Applicable Cable Diameter: 27/30mm
Mounting Screw: Pipe Parallel Thread: G1・1/4, Thick Steel Conduit Thread: CTG36
Mounting Hole Diameter: 42mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 45.5, B(max): 34.0, C: 18.1, Diameter D: 30.8, Diameter E: 51.0, F: 48, Diameter K (OD): 41.9,
Brand Name: Esco
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Applicable Cable Diameter: 27/30mm
Mounting Screw: Pipe Parallel Thread: G1-1/4, Thick Steel Conduit Thread: CTG36
Mounting Hole Diameter: 42mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 45.5, B(max): 34.0, C: 18.1, Diameter D: 30.8, Diameter E: 51.0, F: 48, Diameter K (OD): 41.9,
4548745786002
27-30mm/G1/4" Cable Gland (Flame Retardant Type)
(text created at , 2025-05-11)
Material: Body・Cap・Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Applicable Cable Diameter: 27/30mm
Mounting Screw: Pipe Parallel Thread: G1・1/4, Thick Steel Conduit Thread: CTG36
Mounting Hole Diameter: 42mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 45.5, B(max): 34.0, C: 18.1, Diameter D: 30.8, Diameter E: 51.0, F: 48, Diameter K (OD): 41.9,
Brand Name: Esco
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Applicable Cable Diameter: 27/30mm
Mounting Screw: Pipe Parallel Thread: G1-1/4, Thick Steel Conduit Thread: CTG36
Mounting Hole Diameter: 42mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 45.5, B(max): 34.0, C: 18.1, Diameter D: 30.8, Diameter E: 51.0, F: 48, Diameter K (OD): 41.9,
4548745786002
27-30mm/G1/4" Cable Gland (Flame Retardant Type)
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
50x50x50 mm
Package
Weight (Approx.):
Weight (Approx.):
100 g
1,094 JPY (Including Tax)
