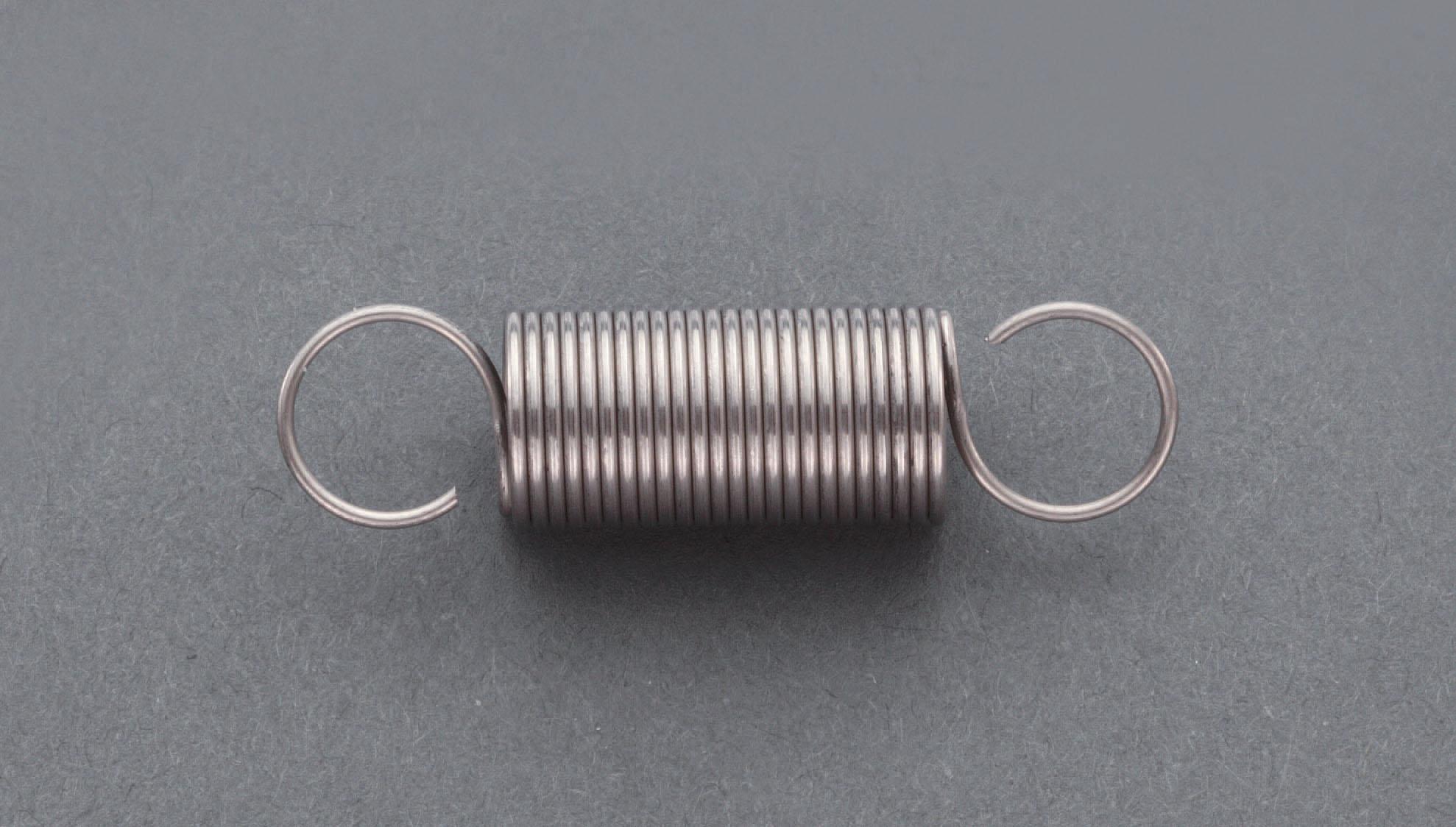

4.0 x 0.4 / 17.2mm Pull Spring (Stainless Steel/5 pcs) EA952SG-82
JAN
4548745791877
ASIN
B00AXVDXPU
Maker
Model No.
EA952SG-82
Color
Size
Description
ESCO-Pull Spring-Stainless Steel-5 Pieces
▪️Material…SUS304
▪️Coil Direction…Right-hand
▪️Rated Load…3.38N
▪️Length at Rated Load…31.3mm
▪️Wire Diameter…φ0.4mm
▪️Outer Diameter…φ4mm
▪️Free Length…17.2mm
▪️Spring Constant…0.188 N/mm
▪️Initial Tension…0.735 N
▪️Hook Shape…Reverse Round Hook
▪️Hook Opposite Angle…180°
▪️Quantity…5 pieces
▪️RoHS Compliant
Brand Name: Esco
Material…SUS304, Coil Direction…Right-hand
Allowable Load…3.38N, Length at Allowable Load…31.3mm
Wire Diameter…0.4mm diameter, Outer Diameter…4mm diameter, Height…17.2mm
Spring Constant…0.188N/mm
Initial Tension…0.735N
4548745791877
4.0x0.4 / 17.2mm Pull Spring (Stainless Steel/5 pcs) EA952SG-82
(text created at , 2025-05-09)
▪️Material…SUS304
▪️Coil Direction…Right-hand
▪️Rated Load…3.38N
▪️Length at Rated Load…31.3mm
▪️Wire Diameter…φ0.4mm
▪️Outer Diameter…φ4mm
▪️Free Length…17.2mm
▪️Spring Constant…0.188 N/mm
▪️Initial Tension…0.735 N
▪️Hook Shape…Reverse Round Hook
▪️Hook Opposite Angle…180°
▪️Quantity…5 pieces
▪️RoHS Compliant
Brand Name: Esco
Material…SUS304, Coil Direction…Right-hand
Allowable Load…3.38N, Length at Allowable Load…31.3mm
Wire Diameter…0.4mm diameter, Outer Diameter…4mm diameter, Height…17.2mm
Spring Constant…0.188N/mm
Initial Tension…0.735N
4548745791877
4.0x0.4 / 17.2mm Pull Spring (Stainless Steel/5 pcs) EA952SG-82
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
100x100x100 mm
Package
Weight (Approx.):
Weight (Approx.):
500 g
685 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-14
