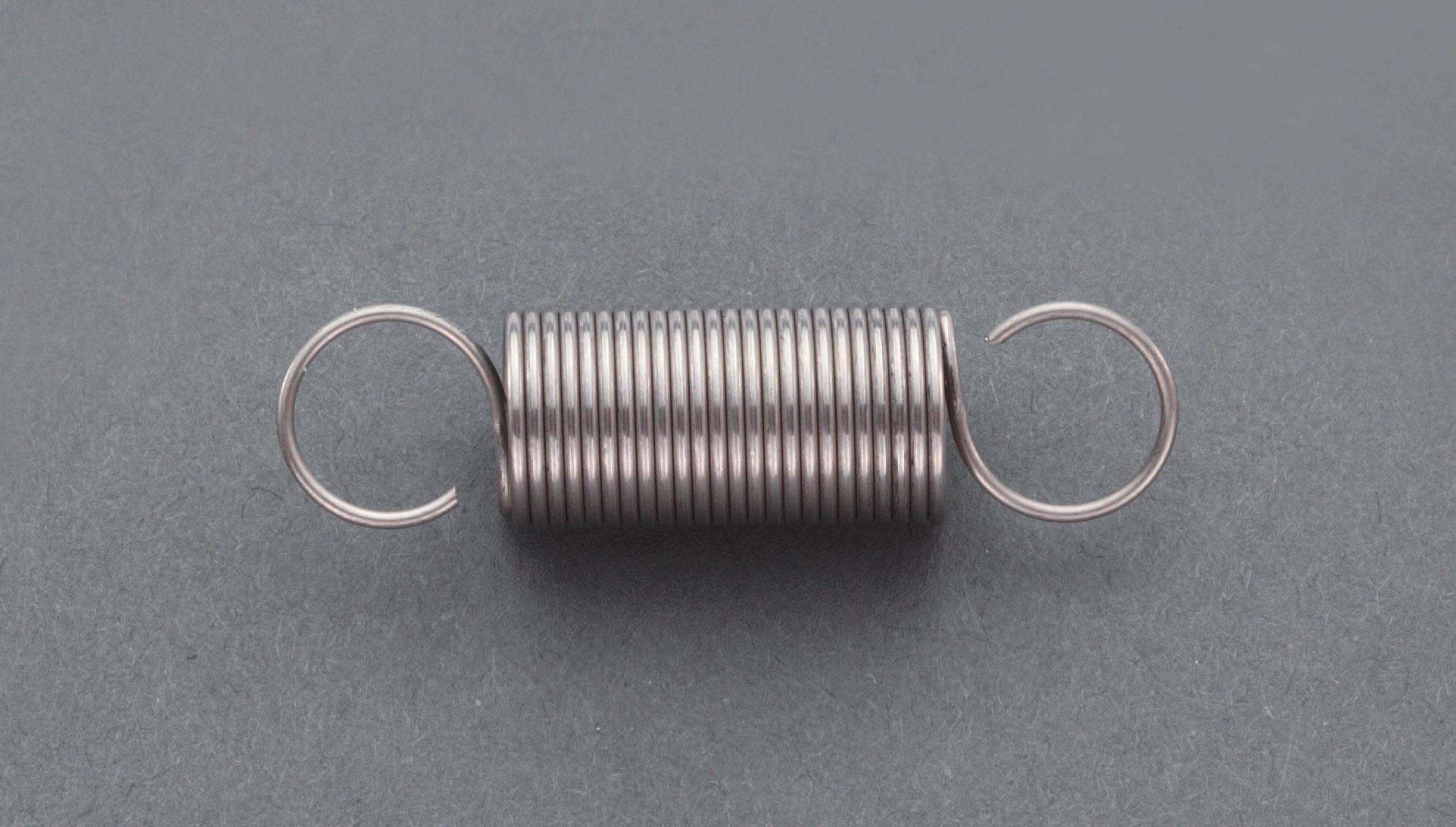

5.0 x 0.45 / 16.4mm Pull Spring (Stainless Steel / 5 pcs) EA952SG-113
JAN
4548745792737
ASIN
B00AXVE3DG
Maker
Model No.
EA952SG-113
Color
Size
Description
ESCO-Pull Spring-Stainless Steel-5 Pieces
▪️Material…SUS304
▪️Coil Direction…Right-hand
▪️Rated Load…3.78N
▪️Length at Rated Load…29.4mm
▪️Wire Diameter…φ0.45mm
▪️Outer Diameter…φ5mm
▪️Free Length…16.4mm
▪️Spring Constant…0.233 N/mm
▪️Initial Tension…0.735 N
▪️Hook Shape…Reverse Round Hook
▪️Hook Opposite Angle…180°
▪️Quantity…5 pieces
▪️RoHS Compliant
Brand Name: Esco
Material…SUS304, Coil Direction…Right-hand
Allowable Load…3.78N, Length at Allowable Load…29.4mm
Wire Diameter…0.45mm diameter, Outer Diameter…5mm diameter, Height…16.4mm
Spring Constant…0.233 N/mm
Initial Tension…0.735 N
4548745792737
5.0x0.45/ 16.4mm Pull Spring (Stainless Steel/5 pcs) EA952SG-113
(text created at , 2025-05-09)
▪️Material…SUS304
▪️Coil Direction…Right-hand
▪️Rated Load…3.78N
▪️Length at Rated Load…29.4mm
▪️Wire Diameter…φ0.45mm
▪️Outer Diameter…φ5mm
▪️Free Length…16.4mm
▪️Spring Constant…0.233 N/mm
▪️Initial Tension…0.735 N
▪️Hook Shape…Reverse Round Hook
▪️Hook Opposite Angle…180°
▪️Quantity…5 pieces
▪️RoHS Compliant
Brand Name: Esco
Material…SUS304, Coil Direction…Right-hand
Allowable Load…3.78N, Length at Allowable Load…29.4mm
Wire Diameter…0.45mm diameter, Outer Diameter…5mm diameter, Height…16.4mm
Spring Constant…0.233 N/mm
Initial Tension…0.735 N
4548745792737
5.0x0.45/ 16.4mm Pull Spring (Stainless Steel/5 pcs) EA952SG-113
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
100x100x100 mm
Package
Weight (Approx.):
Weight (Approx.):
500 g
685 JPY (Including Tax)
