AC250V/DC125V, 2A, 2-pole circuit protector, Frame 30
JAN
4548745808483
ASIN
B00AXVB212
Maker
Model No.
EA940MN-202
Color
Size
37 × 65 × 56 (H) mm
Description

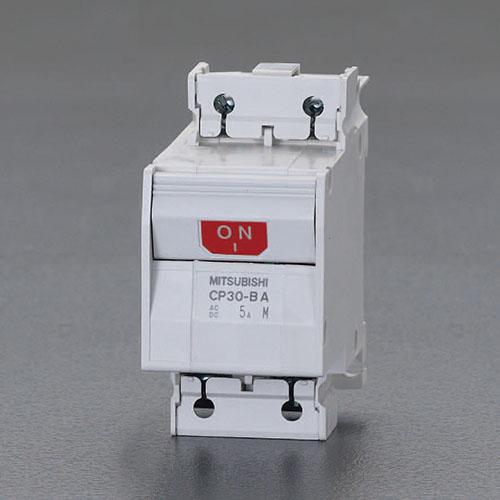

ESCO Circuit Protector Frame 30 - AC250/DC125V - EA940MN-202
Specifications
Mitsubishi Electric
For Frame 30
Rated Voltage: AC250V, DC125V
Rated Insulation Voltage: 250V
Rated Breaking Capacity: 2.5kA\ Size: 37×65×56(H)mm
Poles: 2 poles
Reverse connection possible
Rated current: 2A
Model: CP30-BA2P
Reference ambient temperature: 40℃
Weight: 80g
ON/OFF status is clearly visible at a glance.
Mountable on IEN rails.
Series/Medium-speed type
AC/DC dual-use type
RoHS compliant
Allows for alarm switches (AL) and auxiliary switches (AX), usable for sequence checks, etc.
Code Part Number: EA940MN-202
Brand Name: Esco
Quantity: 1 piece
Size: 37×65×56(H)mm
4548745808483
AC250･DC125V／2A／2-pole circuit protector／Frame 30
(text created at , 2025-05-11)
Specifications
Mitsubishi Electric
For Frame 30
Rated Voltage: AC250V, DC125V
Rated Insulation Voltage: 250V
Rated Breaking Capacity: 2.5kA\ Size: 37×65×56(H)mm
Poles: 2 poles
Reverse connection possible
Rated current: 2A
Model: CP30-BA2P
Reference ambient temperature: 40℃
Weight: 80g
ON/OFF status is clearly visible at a glance.
Mountable on IEN rails.
Series/Medium-speed type
AC/DC dual-use type
RoHS compliant
Allows for alarm switches (AL) and auxiliary switches (AX), usable for sequence checks, etc.
Code Part Number: EA940MN-202
Brand Name: Esco
Quantity: 1 piece
Size: 37×65×56(H)mm
4548745808483
AC250･DC125V／2A／2-pole circuit protector／Frame 30
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
67x40x80 mm
Package
Weight (Approx.):
Weight (Approx.):
170 g
